Name: 8 Core 50/125 Multi Mode Tek Tüplü Çelik Zırhlı OM4 Fiber Optik Kablo
Brand: Oring Networking
SKU: FO108M4

General Specifications

Fibre Type

50/125 Multi Mode

Fibre Grade

OM4

Fibre Count

Cable Construction

Single tube

Armour

Steel armoured

Warranty

Lifetime warranty

Construction and Test Values

Cable (Mechanical)

Property	Unit	Value	Test Standard
Tensile Strength at Break	kN	>1.2	EN 60794.1.E1
Breaking Tensile Strength	kN	>1.5	EN 60794.1.E1
Crush Resistance	N/cm	>200	EN 60794.1.E3
Repeated Bending Radius	mm	<20xD	EN 60794.1.E6
Single Bending Radius	mm	<15xD	EN 60794.1.E6
Torsion	+90° C,8	Positive	EN 187 000 M 508
Impact	kN	>1	EN 187000 M 504
Temperature			EN 60794.1.E11

Outer Sheath

Property	Unit	Value	Test Standard
Density	g/cm³	>20	ASTM D 638
Tensile Strength at Break	N/mm²	>400	ASTM D 638
Elongation at Break	%	2/10	ASTM D 1693
E.S.C.R. (10% Igepal C-630)	>500 hours	2/10	ASTM D 746
Breaking Cold	<-75°C	2.5+0.5	ASTM D 1603
Carbon Black Rate	%	<0.950	ASTM D 792 Method A
Oxygen Induction Time	200°C	>25	IEC 811.4.2 B

Tube Gel

Property	Unit	Value	Test Standard
Density (25°C)	g/cm³	+0.05	DIN 51 757
Drop Point (24 hours)	°C	Appropriate	IEC 811.5.1 B
Drip Point (24 hours)	°C	>70	REA PE 39
Flash Point	°C	>230	ISO 2592
Oil Separation (150°C, 24 hours)	%	0	FTM STD 791 C
Volatility	%	<2	FTM STD 791 C
Water Amount	%	<0.05	DIN 51 777
Acid Value (100°C)	% (mg KOH/g)	<0.01	DIN 53 402
Abrasion		Positive	IEC 811.5.1
Penetration (25°C / -30°C)	1/10 mm	>150	ISO 2137
Oxygen Induction Time (180°C)	minute	>20	IEC 811.4.2 B
100-500 V (100°)	Ω x m	>10	ASTM D 1169
100-500 V (23°)	Ω x m		ASTM D 1169

Loose Tube

Property	Unit	Value	Test Standard
Loose Tube		>10,11
Density	g/cm³	1.31+0.03	ISO 1183
Water Absorption (23°C)	%	<0.45	DIN 53 495
Tensile Strength at Break	N/mm²	<30	ISO 527
Elongation at Break	%	>50	ISO 527
E-Modulus	N/mm²	>2200	ISO 527
Shore Hardness	Shore D	>78	DIN 53 505
Melting Temperature (DSC)	°C	>220	ISO 3146 C
Linear Thermal Expansion Coefficient (-23<<+80°C)	°K-1 x10-4	<1.3

E-Glass Yarn

Property	Unit	Value	Test Standard
Density	g/cm³	As offered	As offered
Tensile Strength at Break	%	As offered	As offered
Elongation at Break	N/mm²	As offered	As offered
E-Modulus	%	As offered	As offered

Armouring

Property	Unit	Value	Test Standard
Steel Thickness	nm	0.155±0.015	ASTM A 623 M
Tensile Strength at Break	N/mm²	>300	ASTM E 6892
Elongation at Break	%	>15	ASTM E 6892
Thickness of Coating	nm	>0.050±0.01	ASTM A 623 M
DC Resistance	ohm/km	<40	ASTM A 6892

Carries campus backbones on 8 Multi Mode OM4 fibers.

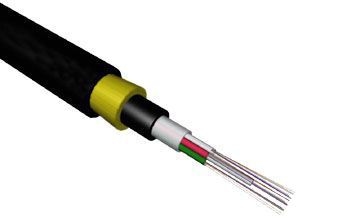

A single-tube, steel-armored fiber optic cable carrying 8 cores of 50/125 µm Multi Mode fiber. The OM4 grade fiber feeds short-distance high-speed links on backbone runs. The steel armor takes the mechanical load in ducts and buried routes.

8Core Count

50/125 µmFiber Size

Multi ModeFiber Type

OM4Fiber Grade

Steel armoredArmor

Key features

8Core

Fiber capacity

A single run carries several links together.

50/125µm

Core and cladding size

Multi Mode fiber serves short and medium distance backbone links.

1.2kN

Tensile strength at break

The cable body takes this load during duct and aerial pulls.

200N/cm

Crush resistance

The steel armor keeps top pressure away from the fibers.

1kN

Impact resistance

The body resists sudden impacts during installation.

IN THE FIELD

Steel-armored bodyIt takes outside mechanical load in ducts, conduits and buried routes.

Single loose-tube designIt gathers the fibers in one loose tube and eases splitting at the splice closure.

Tested to standardsEN and ASTM methods verify tensile, crush, torsion and impact values.

ORing Networking fiber products carry a lifetime warranty.
