    1. ›
    2. CCTV Solutions›
    3. Accessories›
    4. Lens›
    5. 12 MP 1/1.7” 3.7-16mm Vari-Focal Lens

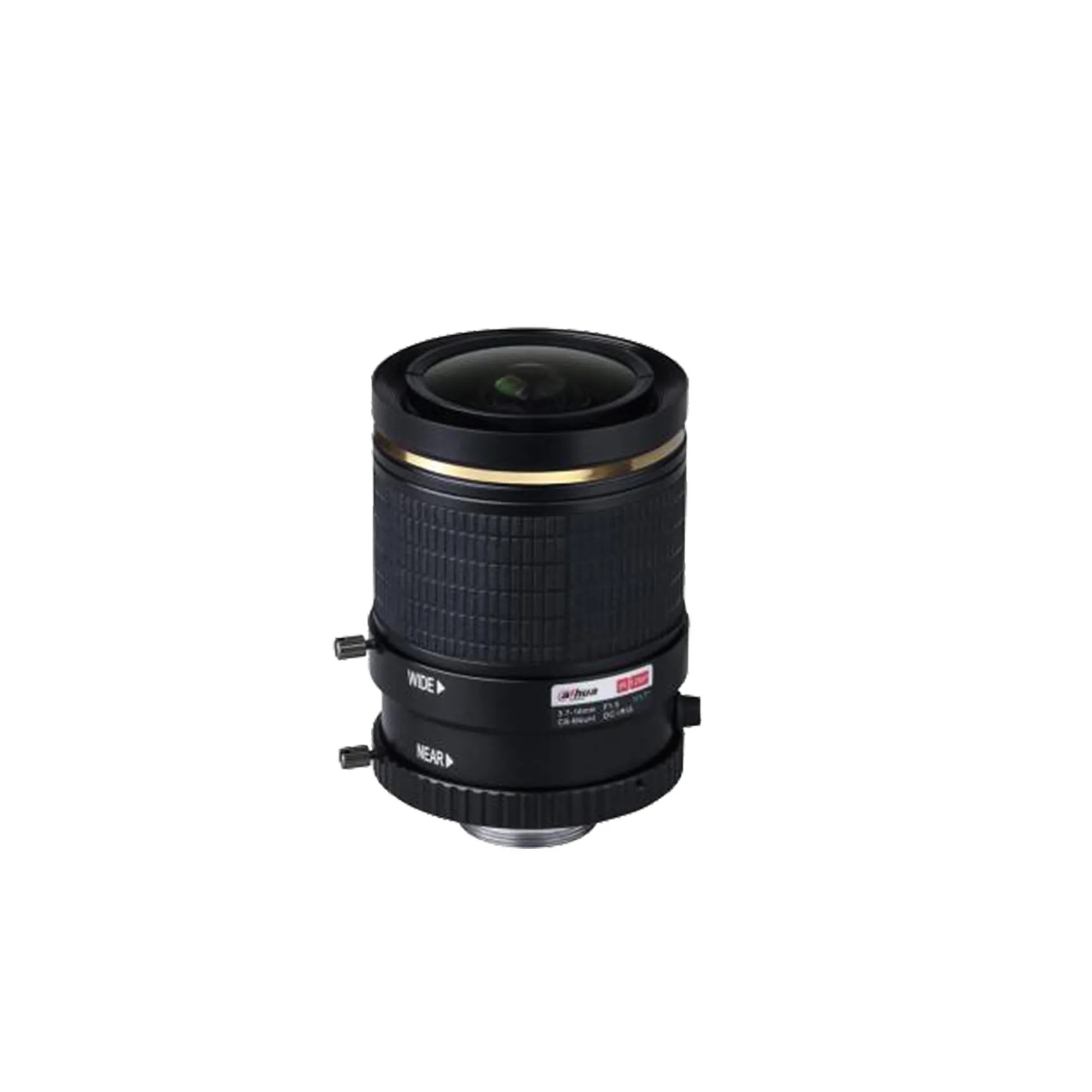

    12 MP 1/1.7” 3.7-16mm Vari-Focal Lens
    Dahua

    12 MP 1/1.7” 3.7-16mm Vari-Focal Lens

    Stock Code: PLZ20C0-D

    Moves from wide to tele between 3.7 mm and 16 mm and holds detail on 12 MP cameras.
    A CS mount vari-focal lens for 12 MP cameras in the 1/1.7 inch format. At the wide end it frames a 145° diagonal scene, and at the tele end it drops to 35.6° to enlarge distant detail. DC-Iris control sets the aperture according to ambient light.
    3.7 mm – 16 mmFocal length
    12 MPLens pixel
    F1.5Aperture
    1/1.7 inchImage sensor size
    CSMounting type
    0.5 mMinimum object distance
    Key features
    Vari-focal rangeChanges the focal length manually between 3.7 mm and 16 mm.
    DC-IrisDC-Iris control adjusts the aperture as brightness changes.
    IR correctionInfrared correction keeps night and day images on the same focus.
    Wide coverageCovers 145° diagonally at the wide end and 35.6° at the tele end.
    Close focusDelivers a sharp image from 0.5 m onward.
    Operating temperatureWorks between -30 °C and +70 °C.
    Parameter
    Image Format1/1.7"
    Focal Length3.7-16 mm
    Lens Pixel12 MP
    ApertureF1.5
    MountCS
    Field Angle (D×H×V)1/1.7": W: 145°(D) × 109°(H) × 79°(V) ~ T: 35.6°(D) × 28.5°(H) × 21.4°(V)
    Lens Control
    FocusManual
    ZoomManual
    IrisDC-Iris
    IR CorrectionYes
    M.O.D.0.5 m (1.64 ft)
    Dimensionsɸ54 mm × 82.8 mm (ɸ2.12" × 3.26")
    Weight0.27 kg (0.6 lb)
    Operating Temperature-30°C ~ +70°C (-22°F ~ +158°F)
    Humidity<90% RH
    Certifications
    CertificationsCE (EN55022, EN55024, EN50130-4); FCC (ANSI C63.4, FCC Part 15 Subpart B)

    Datasheet

    PLZ20C0-D

    1.0pdf8/22/2019

    PLZ20C0-D

    1.0pdf8/22/2019

    Fotoğraf

    PLZ20C0-D

    1.0png8/22/2019
