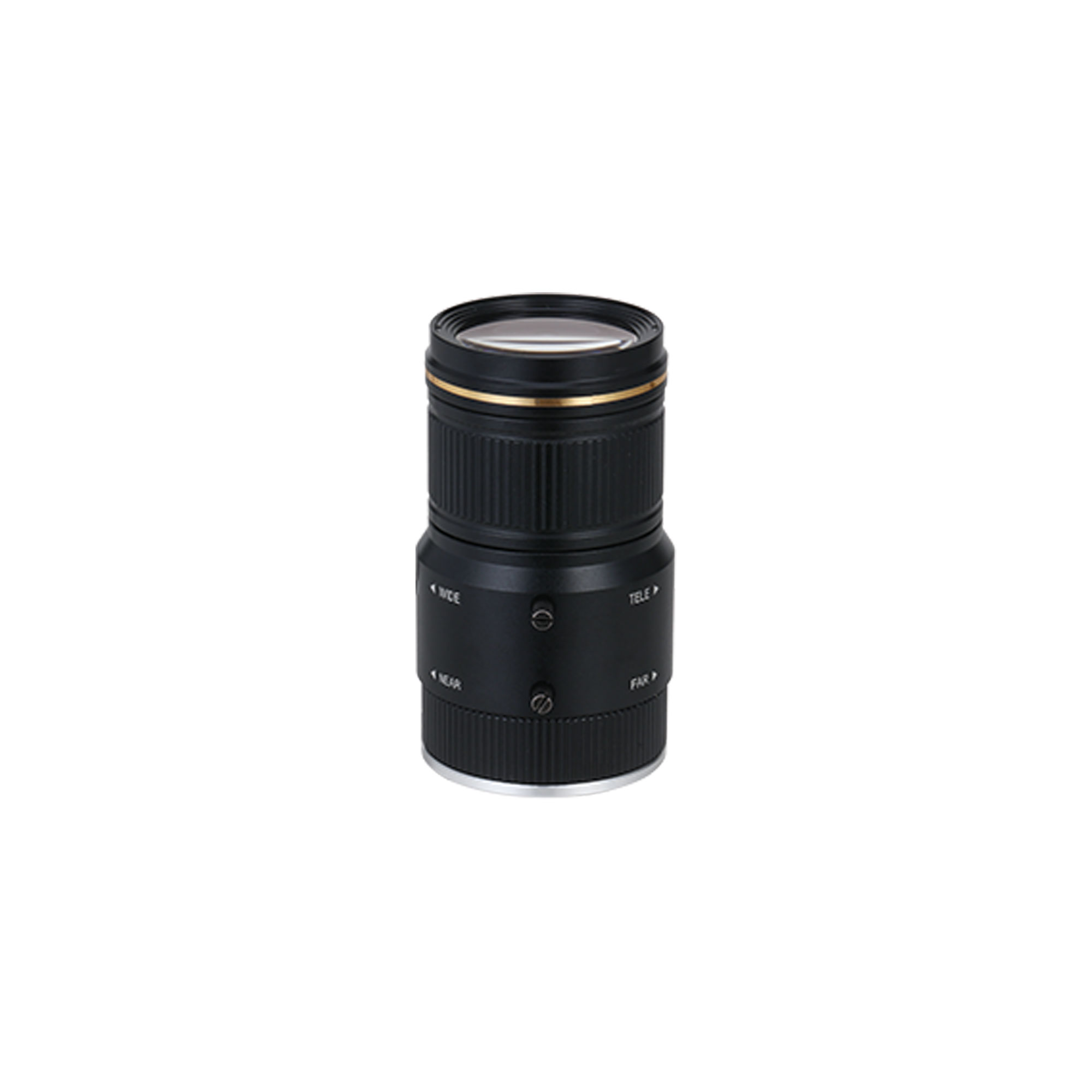

    12MP 1/1.7
    Dahua

    12MP 1/1.7

    Stock Code: PLZ21C0-P

    Zooms between 10.5 mm and 42 mm and holds detail on 12 MP cameras.
    A CS mount vari-focal lens for cameras built around a 1/1.7 inch sensor. P-iris control balances the aperture as daylight changes, and IR correction keeps the focus point in the same place after dark. The metal body protects the lens through installation and field use.
    10.5 mm – 42 mmFocal length
    12 MPLens pixel
    F1.5 – F1.7Aperture
    1/1.7 inchImage sensor size
    CSMounting type
    1 mMinimum object distance
    Key features
    Vari-focal rangeChanges the focal length manually between 10.5 mm and 42 mm.
    P-iris controlP-iris sets the aperture step by step according to ambient light.
    IR correctionInfrared correction keeps night and day images on the same focus.
    Field of viewCovers 46.3° diagonally at the wide end and 14.3° at the tele end.
    CS mountThe standard CS mount simplifies installation and fits a wide range of cameras.
    Operating temperatureWorks between -30 °C and +70 °C.
    Performance
    Image Sensor Size1/1.7"
    Focal Length10.5 mm – 42 mm
    Pixel12MP
    Max. ApertureF1.5 (W) – F1.7 (T)
    IR CorrectionYes
    Chief Ray Angle (CRA)2.3° (W) – 3.7° (T)
    Total Optical Length102.3 mm (40.27")
    Flange Back Focal Length12.5 mm (4.92")
    Mechanical Back Focal Length8.32 mm (3.27")
    Field of View1/1.7":
    W: 46.3° × 36.7° × 27.3° (Diagonal × Horizontal × Vertical)
    T: 14.3° × 10.2° × 8.5° (Diagonal × Horizontal × Vertical)
    1/1.8":
    W: 44.6° × 35.3° × 26.3° (Diagonal × Horizontal × Vertical)
    T: 13.8° × 10.9° × 8.1° (Diagonal × Horizontal × Vertical)
    1/2":
    W: 39.4° × 31.3° × 23.3° (Diagonal × Horizontal × Vertical)
    T: 12.2° × 9.7° × 7.2° (Diagonal × Horizontal × Vertical)
    Distortion–6.2% to –2.1%
    Minimum Object Distance (MOD)1 m (3.28 ft)
    Lens Control
    ZoomManual
    FocusManual
    IrisP-iris
    Mount
    Mount TypeCS mount
    General
    Product DimensionsØ52.0 mm × 90.5 mm (Φ20.47" × 35.63")
    ColorBlack
    CasingMetal
    Net Weight0.32 kg (0.71 lb)
    Gross Weight0.38 kg (0.84 lb)
    Packaging Method40 pcs in each carton
    Packaging DimensionsInner carton: 126.0 mm × 87.0 mm × 78.0 mm (49.61" × 34.25" × 30.71") (L × W × H)
    Environment
    Operating Temperature–30°C to +70°C (–22°F to +158°F)
    Operating Humidity10% – 90% (RH)
    Storage Temperature–30°C to +70°C (–22°F to +158°F)
    Storage Humidity10% – 90% (RH)
