Powers 16 cameras over one cable and records them in the same chassis.

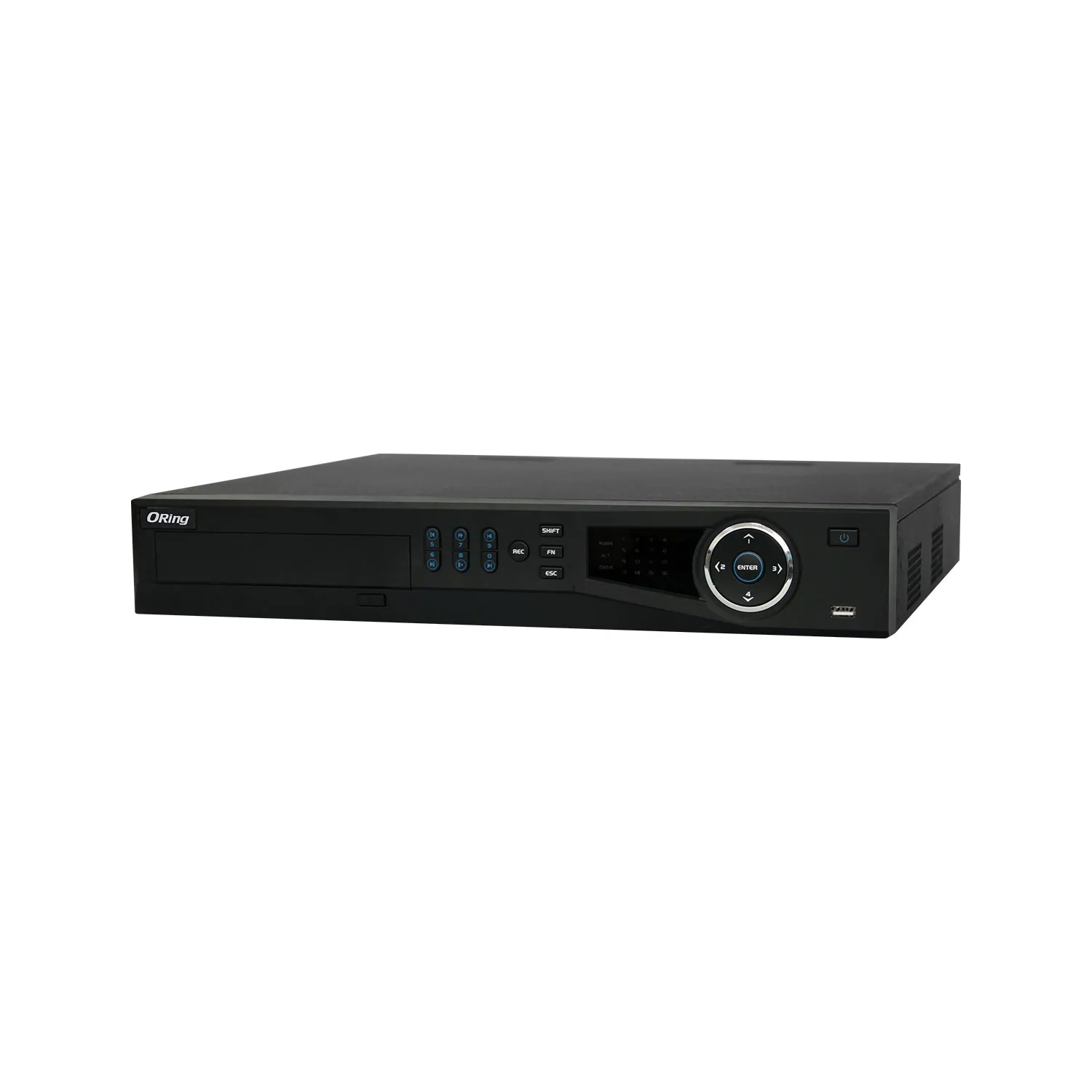

A 16-channel IP recorder. Its ARM quad-core processor writes H.265 and H.264 streams at a 200 Mbps record rate, and 16 PoE ports feed the cameras without separate adapters. Four drive bays each take a disk of up to 6 TB.
PoE portsThe 16 PoE ports comply with IEEE802.3at/af and distribute 150 W in total.
Decoding capacityDecodes 2 channels at 4K or 8 channels at 1080P at the same time.
Smart VideoHandles tripwire, intrusion, abandoned object, scene change, face recognition, people counting and heat map events on the device.
Alarm connections16 alarm inputs and 2 outputs link external sensors to the recording system.
Display outputHDMI and VGA outputs show video simultaneously.
Power consumptionDraws 13.7 W without a disk on an AC 100~240 V line.
