Spreads an office network across sixteen Fast Ethernet ports.

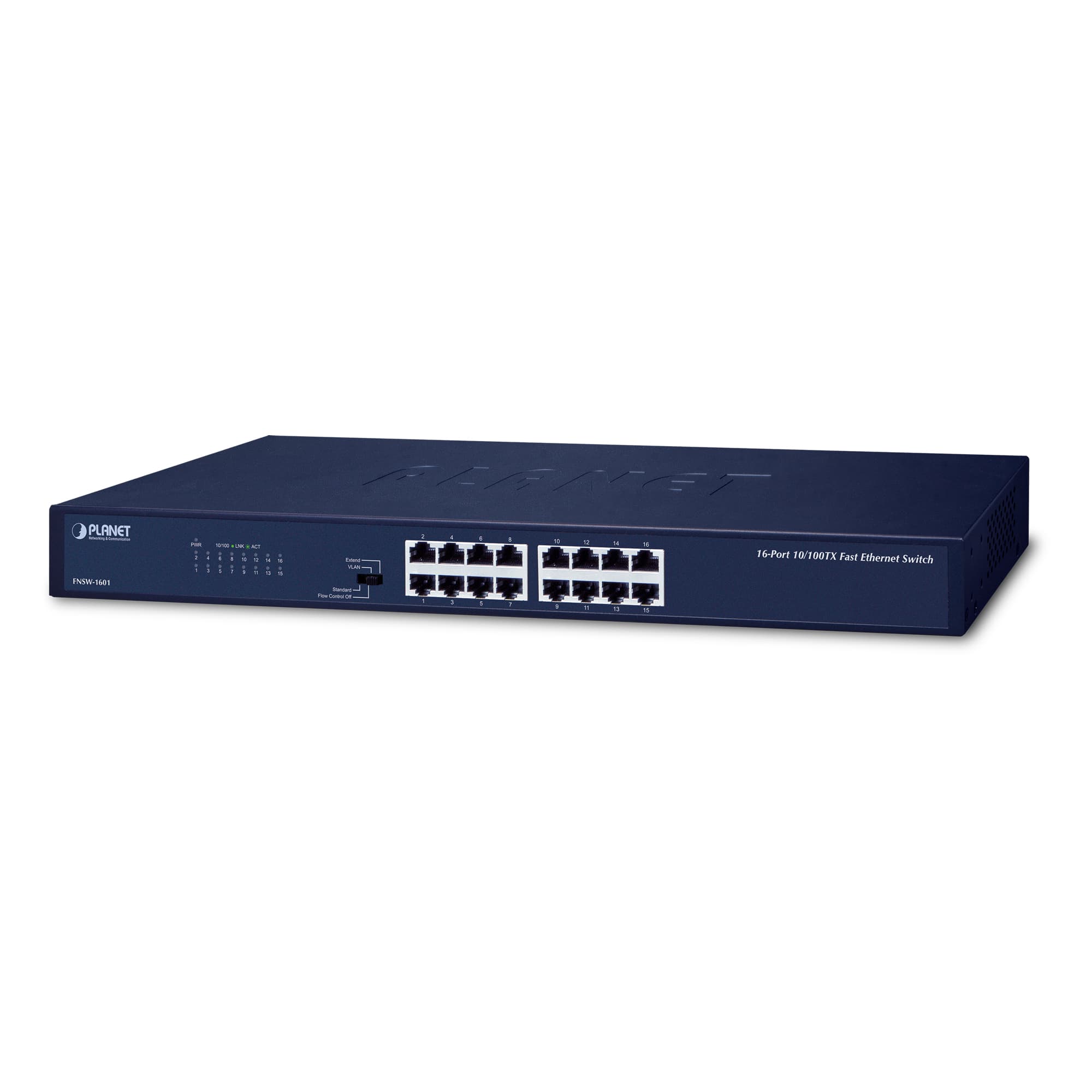

A 16-port 10/100BASE-TX Fast Ethernet switch. VLAN and extend modes picked from the DIP switch let it run in small and medium office networks without extra configuration.
Four operation modesThe DIP switch moves the unit between standard, flow control off, VLAN and extend modes.
Port-based VLANThis mode separates ports 1 to 14 from each other and links them only to uplink ports 15 and 16.
Distance extension modeIn extend mode the first 8 ports carry data up to 200 meters at 10 Mbps, past the 100 m limit of UTP cable.
Forwarding capacityStore-and-Forward switching moves 2.38 Mpps and holds an 8K address table.
Energy savingAn algorithm measures cable length, tunes the power level and cuts consumption by up to 22%.
