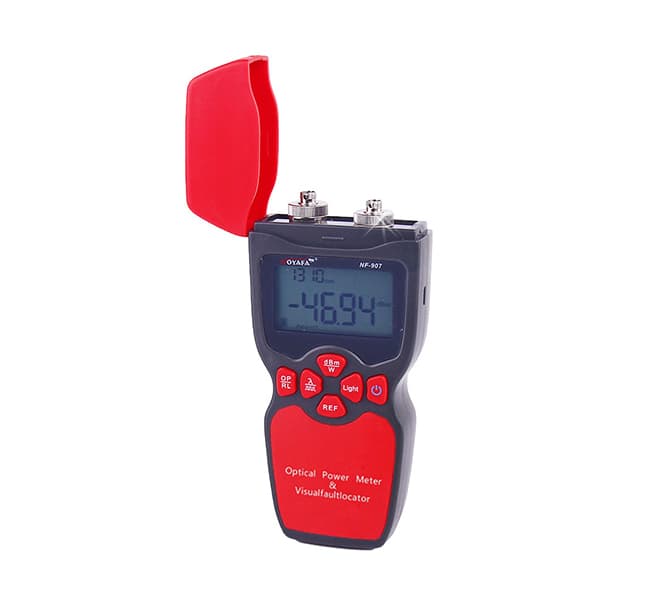

A fiber optic test instrument that combines an optical power meter and a visual fault locator in one body. It takes absolute optical power readings and exposes fiber breakage and winding faults with red light.
-50 ~ +26 dBmPower detecting range
20 mWFault locator output
650±10 nmFault locator wavelength
0.01 dBmDisplay resolution
-20 ~ +70°COperating Temperature
Optical power measurementReads the -50 ~ +26 dBm range at 0.01 dBm resolution.
Visual fault locatorEmits 20 mW at 650±10 nm and makes the break point visible.
Six standard wavelengthsMeasures at 850, 1300, 1310, 1490, 1550 and 1625 nm.

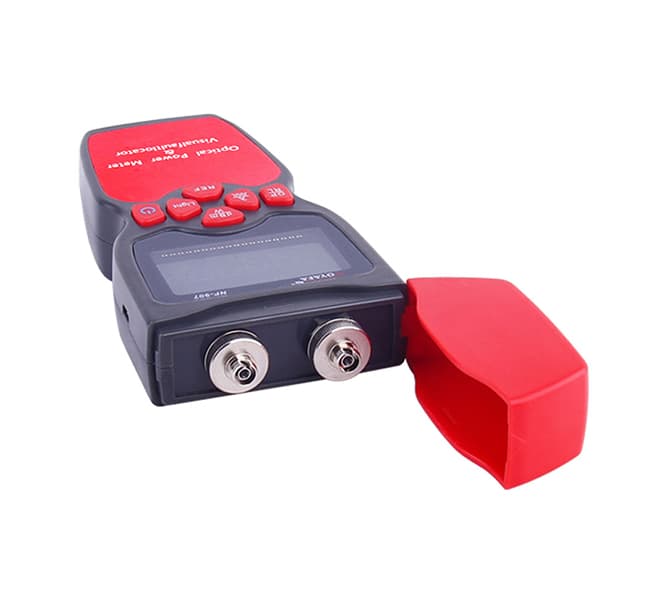

Interface optionsShips with an FC interface and switches among ST, SC and LC.
User referenceLets the user define the REF value and read insertion loss directly.

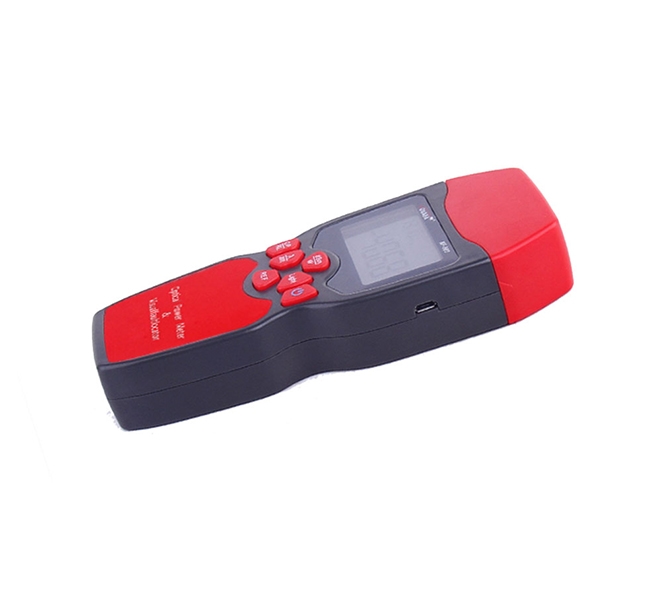

Field bodyWorks between -20 ~ +70°C and carries a 160x75x32 mm body.
