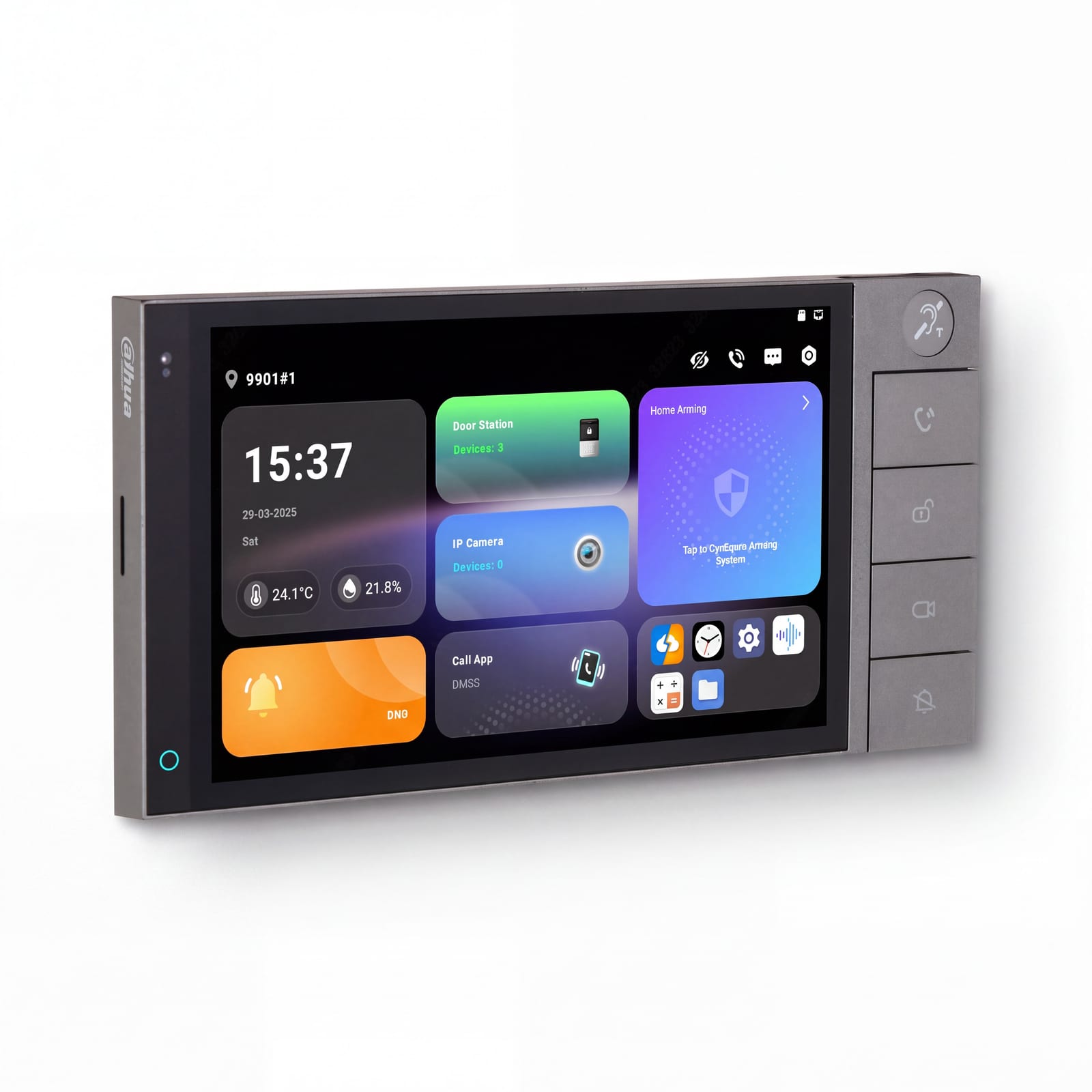

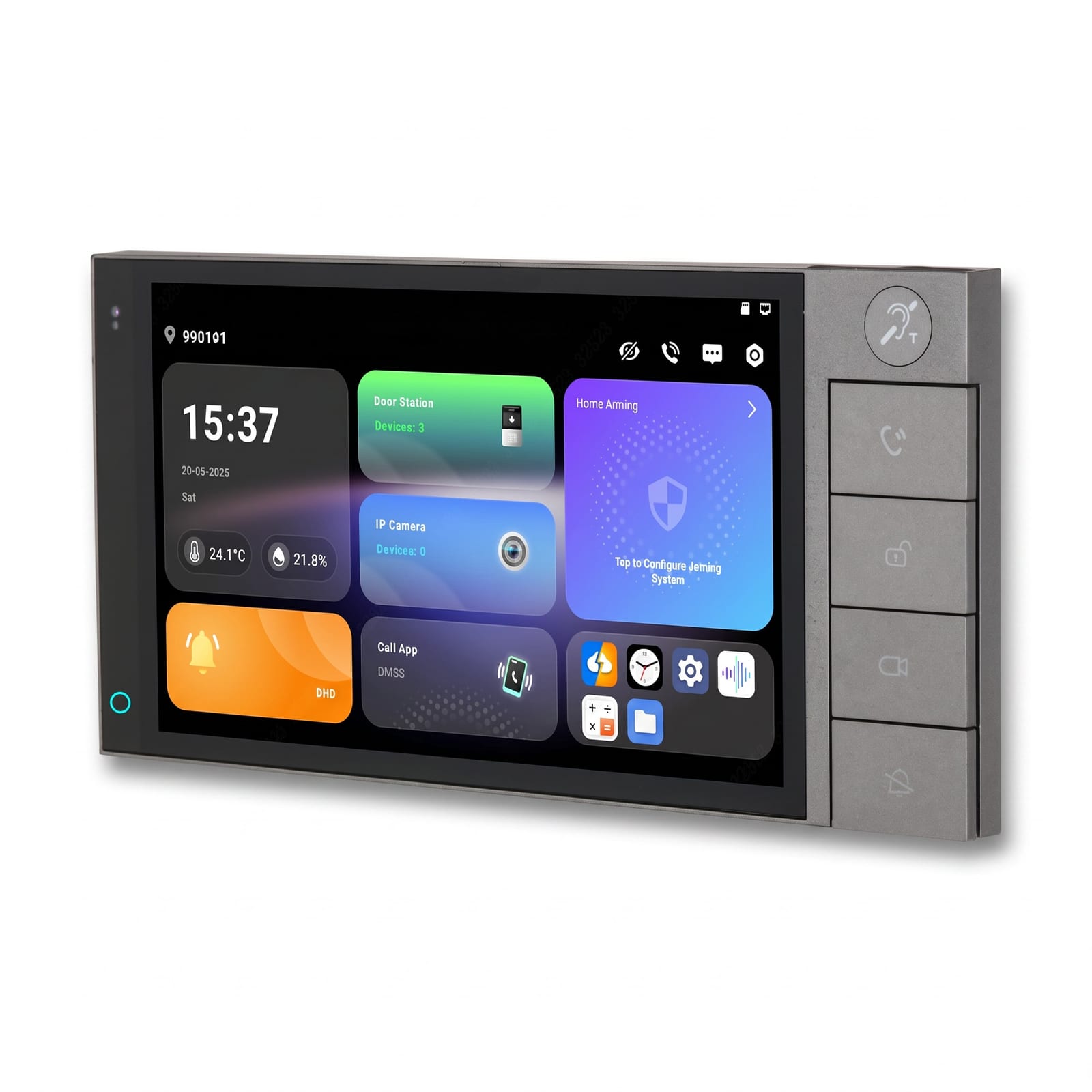

Runs video intercom, alarm and smart home control from one screen over two-wire infrastructure.

This 7-inch capacitive touch panel runs Android 14 and connects directly to digital 2-wire infrastructure, keeping the existing cabling in place. It also supports IP and Wi-Fi communication, and gathers zones in a single interface through 8 alarm input channels.

7-inchCapacitive touchscreen

Android 14Operating System

1024 × 600Screen Resolution

512 GBMicro SD card support

8 / 1Alarm input and output channels

48 VDCPower supply, PoE supported

Key features

Android 14 platformRuns on an embedded processor and pairs its up-to-date interface with mechanical buttons.

7-inch IPS displaySupports multi-touch at 1024 × 600 resolution and delivers wide viewing angles of up to 80 degrees both horizontally and vertically.

Wireless expansionAdds peripherals over Wi-Fi 2.4 GHz, Bluetooth BLE, Zigbee 802.15.4 and Sub-1G links.

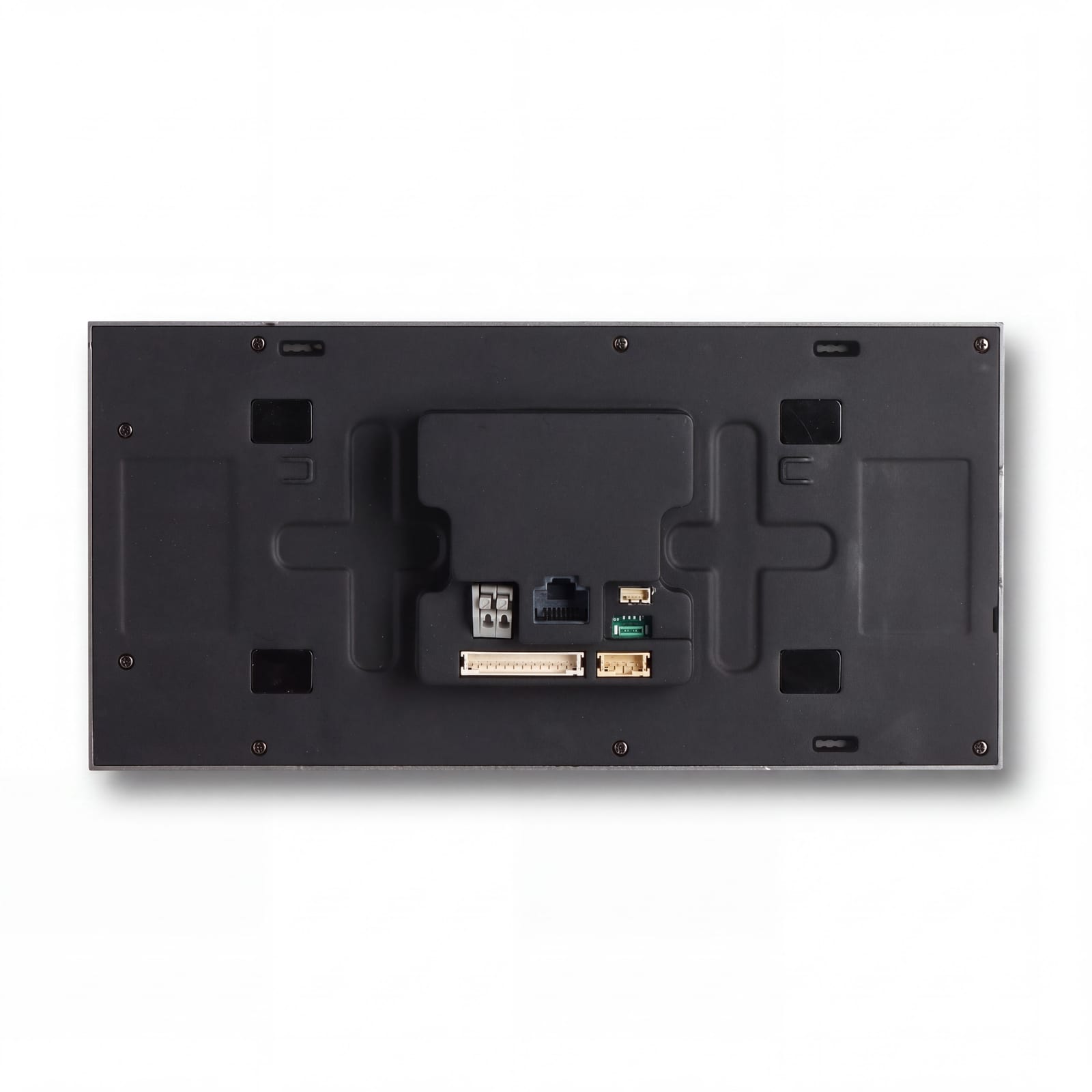

Interface portsCarries 1 × RS-485, 1 × USB and 1 × 10/100 Mbps Ethernet port, and also includes 8 alarm input channels and 1 alarm output channel.

AccessibilityWorks with induction loop systems and connects directly to hearing aids.

Power and housingWorks from a 48 VDC 0.5 A supply or standard PoE, and its 210.2 × 103.1 × 32.2 mm housing is made of PC + ABS.

System Specifications

Main Processor & OS

Embedded Processor / Android 14

Button Type

Mechanical

Network Protocol

IPv4; RTSP; UDP; DNS; FTP; RTP; TCP; SIP

Display and Audio

Display Features

7" Capacitive Touchscreen (1024 × 600)

Audio Compression

G.711a; G.711u; PCM (16 kHz, 16 bit)

Audio Input / Output

2 Channel Input / Built-in Speaker

Audio Mode

Two-way audio (Echo cancellation / Digital noise reduction)

Functions and Smart Home

Communication Mode

Full digital; Digital 2-wire

Elevator Control / Video Memo

Yes (Supported)

Expansion Modules

ZigBee, Bluetooth, 868 MHz Sensor

Storage

Micro SD card (Up to 512 GB)

Connectivity and Ports

Wireless Connectivity

Wi-Fi (2.4 GHz), BT (BLE), Zigbee (802.15.4), Sub-1G

RS-485 / USB / Ethernet

1 × RS-485 / 1 × USB / 1 × 10/100 Mbps

Alarm Input / Output

8 Channel Input / 1 Channel Output

General and Physical

Power Supply

48 VDC, 0.5 A / Standard PoE

Dimensions and Material

210.2 × 103.1 × 32.2 mm / PC + ABS

Operating Temp / Gross Weight

-10 °C to +55 °C / 1,250 g
