Brings video intercom and alarm monitoring together on a single indoor monitor.

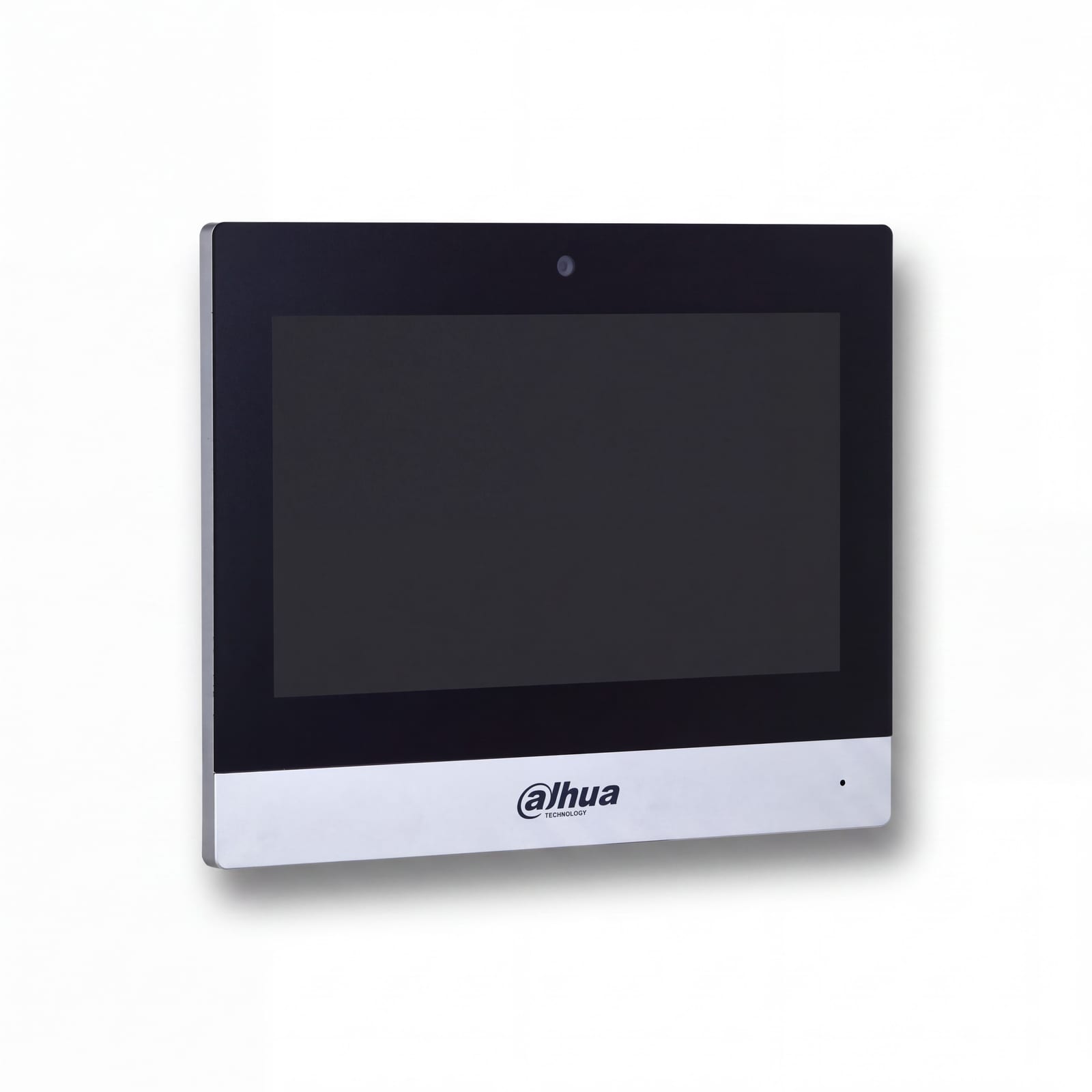

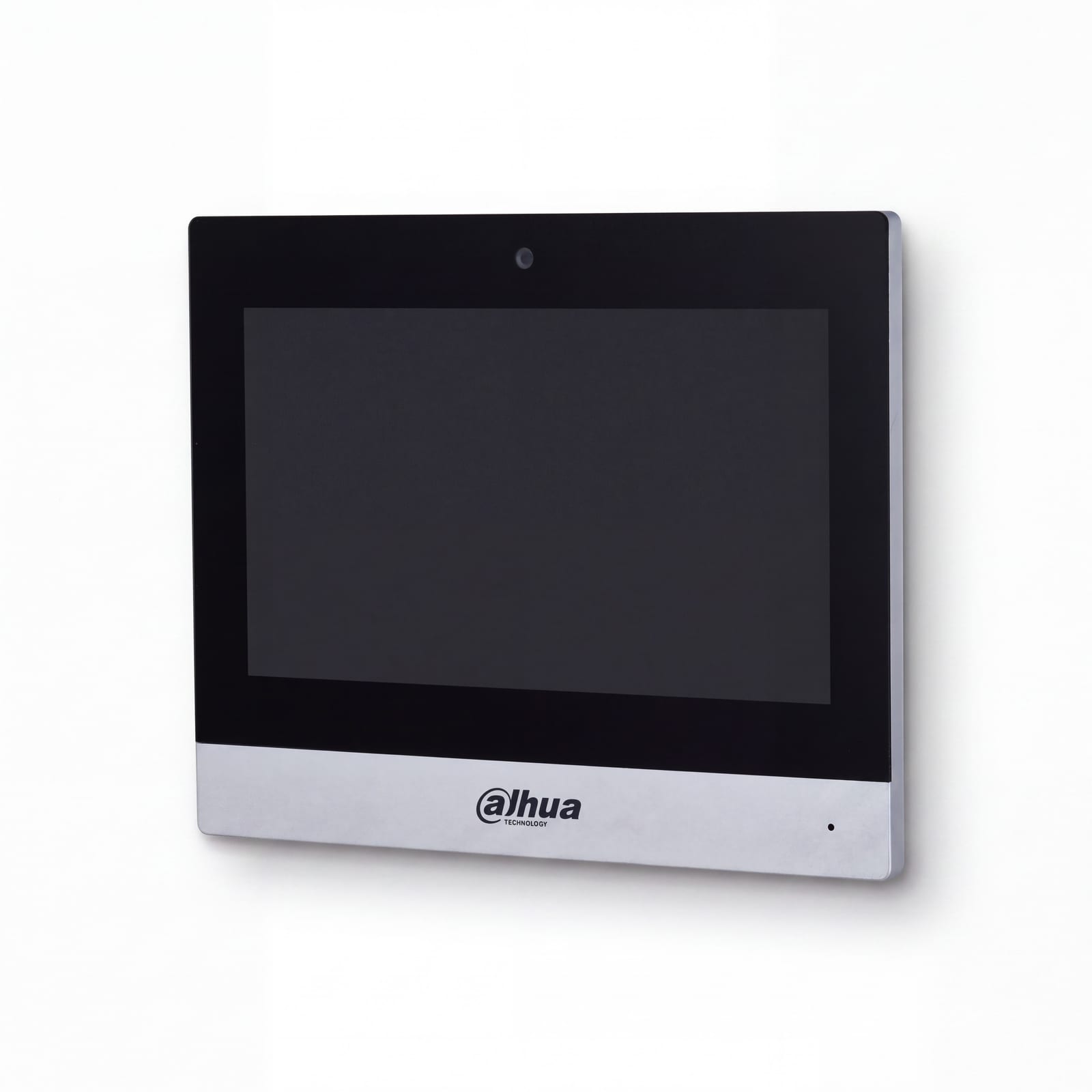

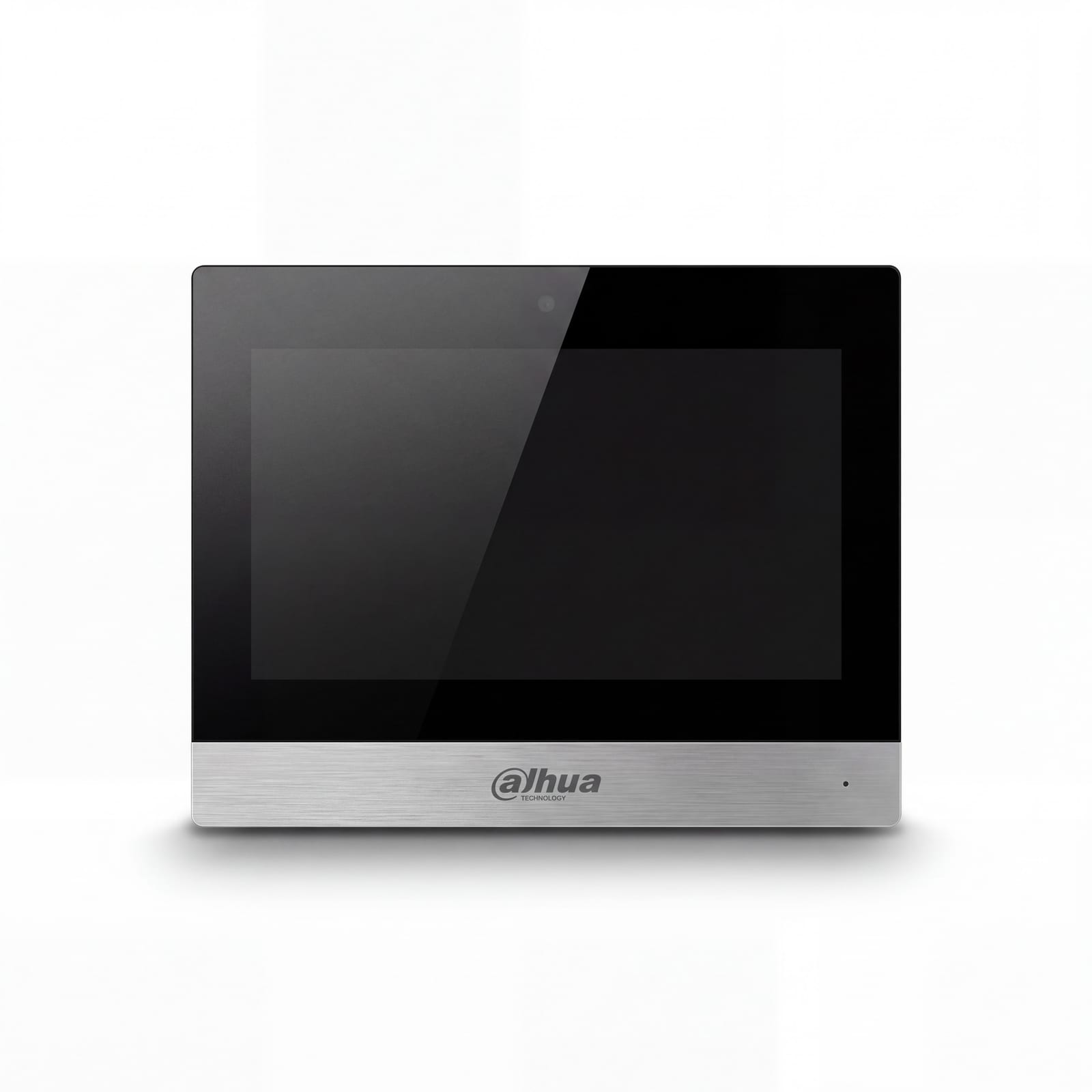

This 7-inch touchscreen indoor monitor is based on Android 8.1 and builds a fully digital intercom system together with a door station and a master station. Its built-in 2 mm lens and 2 MP sensor carry video calls between apartments, and 6 alarm input channels bring zone monitoring onto the same screen.

7-inchFull color TFT touchscreen

Android 8.1Operating System

1024 × 600Screen Resolution

H.264Video Compression

6 / 1Alarm input and output channels

12–24 VDCPower supply, PoE supported

Key features

Android 8.1 interfaceRuns a flat interface design on an embedded processor.

7-inch touchscreenUses a full color TFT panel at 1024 × 600 resolution.

Built-in cameraA 1/2.9-inch 2 MP CMOS sensor and a 2 mm lens cover a diagonal field of view of 84.5°.

Alarm zonesConnects detectors directly through 6 alarm input channels and 1 output channel.

System expansionConnects 9 extra monitors in a villa setup, 4 in an apartment setup, and a 1+2 configuration for Wi-Fi intercom.

Power and consumptionWorks from a 12–24 VDC 1 A supply or standard PoE and draws a maximum of 6 W.

System and Video Specifications

Processor & Operating System

Embedded Processor / Android 8.1

Image Sensor

1/2.9" 2MP CMOS

Lens & Field of View

2 mm (Diagonal: 84.5°, Horizontal: 73.5°, Vertical: 58.4°)

Video Compression / Protocol

H.264 / IPv4; TCP; SIP; UDP; RTSP

Display and Audio Features

Display Type & Resolution

7" Full Color TFT (1024 x 600)

Audio Input / Output

Omnidirectional Mic / Built-in Speaker

Audio Mode & Compression

Two-Way Audio (G.711, PCM) – 16 kHz, 16 bit

Function and Connectivity

Communication & Wi-Fi

Full Digital / Wi-Fi Support

Extension Capacity

Villa: 9 / Apartment: 4 / Wi-Fi Intercom: 1+2

Smart Features

Information Bulletin, DND Mode, S.O.S. Alarm

Interface and Performance

Alarm Input / Output

6 Channel Input / 1 Channel Output

Network Port

RJ-45 (10/100 Mbps Self-adaptive)

Power Requirements

12–24 VDC, 1 A; Standard PoE

General and Physical

Casing Material / Color

Aluminum + ABS / Silver

Dimensions & Weight

185 x 147 x 23.3 mm / 0.41 kg

Operating Temp / Consumption

-10 °C to +55 °C / Max. 6 W
