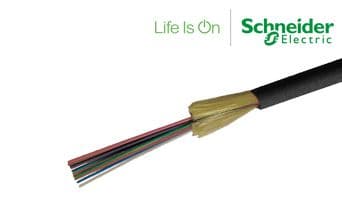

| General Information |
|---|
| Product Code | FO124M3 |

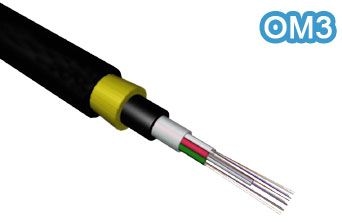

| Product Type | Fiber Optic Cable |
| Fiber Count | 24 Core |
| Fiber Type | 50/125 Multi Mode |
| Fiber Grade | OM3 |
| Cable Construction | Single Tube |
| Armour | Steel Armoured |
| Warranty | ORing Networking fiber products carry a lifetime warranty. |
| Cable Mechanical and Environmental Tests |
|---|
| Test Values | | Property | Unit | Value | Test Standard |
|---|
| Tensile Strength at Break | kN | >1.2 | EN 60794.1.E1 | | Breaking Tensile Strength | kN | >1.5 | EN 60794.1.E1 | | Crush Resistance | N/cm | >200 | EN 60794.1.E3 | | Repeating Bending Radius | mm | <20xD | EN 60794.1.E6 | | Single Bending Radius | mm | <15xD | EN 60794.1.E6 | | Torsion | +90°C, 8 | Positive | EN 187 000 M 508 | | Impact | kN | >1 | EN 187000 M 504 | | Temperature | | | EN 60794.1.E11 |
|
| Outer Sheath |
|---|
| Test Values | | Property | Unit | Value | Test Standard |
|---|
| Density | g/cm³ | >20 | ASTM D 638 | | Tensile Strength at Break | N/mm² | >400 | ASTM D 638 | | Elongation at Break | % | 2/10 | ASTM D 1693 | | E.S.C.R. (%10 Igepal C-630) | >500 hours | 2/10 | ASTM D 746 | | Breaking Cold | <-75°C | 2.5+0.5 | ASTM D 1603 | | Carbon Black Rate | % | <0.950 | ASTM D 792 Method A | | Oxygen Induction Time | 200°C | >25 | IEC 811.4.2 B |
|
| Tube Gel |
|---|
| Test Values | | Property | Unit | Value | Test Standard |
|---|
| Density (25°C) | g/cm³ | +0.05 | DIN 51 757 | | Drop Point (24 hours) | °C | Appropriate | IEC 811.5.1 B | | Drip Point (24 hours) | °C | >70 | REA PE 39 | | Flash Point | °C | >230 | ISO 2592 | | Oil Separation (150°C, 24 hours) | % | 0 | FTM STD 791 C | | Volatility | % | <2 | FTM STD 791 C | | Water Amount | % | <0.05 | DIN 51 777 | | Acid Value (100°C) | % (mg KOH/g) | <0.01 | DIN 53 402 | | Abrasion | | Positive | IEC 811.5.1 | | Penetration (25°C / -30°C) | 1/10 mm | >150 | ISO 2137 | | Oxygen Induction Time (180°C) | minutes | >20 | IEC 811.4.2 B | | 100-500 V (100°) | Ω x m | >10 | ASTM D 1169 | | 100-500 V (23°) | Ω x m | | ASTM D 1169 |
|
| Lose Tube |
|---|
| Test Values | | Property | Unit | Value | Test Standard |
|---|
| Lose Tube | | >10,11 | | | Density | g/cm³ | 1.31+0.03 | ISO 1183 | | Water Absorption (23°C) | % | <0.45 | DIN 53 495 | | Tensile Strength at Break | N/mm² | <30 | ISO 527 | | Elongation at Break | % | >50 | ISO 527 | | E-Modulus | N/mm² | >2200 | ISO 527 | | Shore | Shore D | >78 | DIN 53 505 | | Melting Temperature (DSC) | °C | >220 | ISO 3146 C | | Lin. Thermal Ext. Coeff. (-23<<+80°C) | °K-1 x10-4 | <1.3 | |
|
| E-Glass Yarn |
|---|
| Test Values | | Property | Unit | Value | Test Standard |
|---|
| Density | g/cm³ | Offered | Offered | | Tensile Strength at Break | % | Offered | Offered | | Elongation at Break | N/mm² | Offered | Offered | | E-Modulus | % | Offered | Offered |
|
| Armouring |
|---|
| Test Values | | Property | Unit | Value | Test Standard |
|---|
| Steel Thickness | nm | 0.155±0.015 | ASTM A 623 M | | Tensile Strength at Break | N/mm² | >300 | ASTM E 6892 | | Elongation at Break | % | >15 | ASTM E 6892 | | Thickness of Coating | nm | >0.050±0.01 | ASTM A 623 M | | DC Resistance | ohm/km | <40 | ASTM A 6892 |
|
