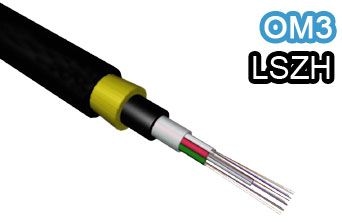

Name: 24 Core 50/125 Mutli Mode Tek Tüplü Çelik Zırhlı LSZH OM3 Fiber Optik Kablo
Brand: Oring Networking
SKU: FO124M3-LSZH

Carries building and campus backbones on 24 Multi Mode fibers.

A single-tube, steel-armored fiber optic cable carrying 24 cores of 50/125 µm Multi Mode fiber. The OM3 grade fiber feeds short-distance high-speed links across building and campus backbones. The LSZH outer jacket keeps the cable suited to indoor ducts and in-building routes.

24Core Count

50/125 µmFiber Size

Multi ModeFiber Type

OM3Fiber Grade

LSZHOuter Jacket

Steel armoredArmor

Key features

24Core

Fiber capacity

A single run carries several links together.

50/125µm

Core and cladding size

Multi Mode fiber serves short and medium distance backbone links.

1.2kN

Tensile strength at break

The cable body takes this load during duct and aerial pulls.

200N/cm

Crush resistance

The steel armor keeps top pressure away from the fibers.

1kN

Impact resistance

The body resists sudden impacts during installation.

IN THE FIELD

Steel-armored bodyIt takes outside mechanical load in ducts, conduits and buried routes.

Single loose-tube designIt gathers the fibers in one loose tube and eases splitting at the splice closure.

Tested to standardsEN and ASTM methods verify tensile, crush, torsion and impact values.

ORing Networking fiber products carry a lifetime warranty.

General Specifications

Product Code

FO124M3-LSZH

Product Type

Fiber optic cable

Fiber Count

Fiber Size

50/125

Fiber Mode

Multi Mode

Fiber Category

OM3

Tube Construction

Single tube

Armour

Steel armoured

Outer Sheath

LSZH

Warranty

Lifetime (ORing Networking fiber products)

Test Values

Cable

Property	Unit	Value	Test Standard
Tensile Strength at Break	kN	>1.2	EN 60794.1.E1
Breaking Tensile Strength	kN	>1.5	EN 60794.1.E1
Crush Resistance	N/cm	>200	EN 60794.1.E3
Repeated Bending Radius	mm	<20xD	EN 60794.1.E6
Single Bending Radius	mm	<15xD	EN 60794.1.E6
Torsion	+90°C, 8	Positive	EN 187 000 M 508
Impact	kN	>1	EN 187000 M 504
Temperature	–	–	EN 60794.1.E11

Outer Sheath

Property	Unit	Value	Test Standard
Density	g/cm³	>20	ASTM D 638
Tensile Strength at Break	N/mm²	>400	ASTM D 638
Elongation at Break	%	2/10	ASTM D 1693
E.S.C.R. (10% Igepal C-630)	>500 hours	2/10	ASTM D 746
Breaking Cold	<-75°C	2.5+0.5	ASTM D 1603
Carbon Black Rate	%	<0.950	ASTM D 792 Method A
Oxygen Induction Time	200°C	>25	IEC 811.4.2 B

Tube Gel

Property	Unit	Value	Test Standard
Density (25°C)	g/cm³	+0.05	DIN 51 757
Drop Point (24 hours)	°C	Appropriate	IEC 811.5.1 B
Drip Point (24 hours)	°C	>70	REA PE 39
Flash Point	°C	>230	ISO 2592
Oil Separation (150°C, 24 hours)	%	0	FTM STD 791 C
Volatility	%	<2	FTM STD 791 C
Water Amount	%	<0.05	DIN 51 777
Acid Value (100°C)	% (mg KOH/g)	<0.01	DIN 53 402
Abrasion	–	Positive	IEC 811.5.1
Penetration (25°C / -30°C)	1/10 mm	>150	ISO 2137
Oxygen Induction Time (180°C)	minute	>20	IEC 811.4.2 B
100-500 V (100°)	Ω × m	>10	ASTM D 1169
100-500 V (23°)	Ω × m	–	ASTM D 1169

Loose Tube

Property	Unit	Value	Test Standard
Loose Tube	–	>10,11	–
Density	g/cm³	1.31+0.03	ISO 1183
Water Absorption (23°C)	%	<0.45	DIN 53 495
Tensile Strength at Break	N/mm²	<30	ISO 527
Elongation at Break	%	>50	ISO 527
E-Modulus	N/mm²	>2200	ISO 527
Shore	Shore D	>78	DIN 53 505
Melting Temperature (DSC)	°C	>220	ISO 3146 C
Lin. Thermal Expansion Coefficient (-23 … +80°C)	°K-1 x10-4	<1.3	–

E-Glass Yarn

Property	Unit	Value	Test Standard
Density	g/cm³	As offered	As offered
Tensile Strength at Break	%	As offered	As offered
Elongation at Break	N/mm²	As offered	As offered
E-Modulus	%	As offered	As offered

Armouring

Property	Unit	Value	Test Standard
Steel Thickness	nm	0.155±0.015	ASTM A 623 M
Tensile Strength at Break	N/mm²	>300	ASTM E 6892
Elongation at Break	%	>15	ASTM E 6892
Thickness of Coating	nm	>0.050±0.01	ASTM A 623 M
DC Resistance	ohm/km	<40	ASTM A 6892

Property

Unit

Value

Test Standard

Tensile Strength at Break

>1.2

EN 60794.1.E1

Breaking Tensile Strength

>1.5

EN 60794.1.E1

Crush Resistance

N/cm

>200

EN 60794.1.E3

Repeated Bending Radius

<20xD

EN 60794.1.E6

Single Bending Radius

<15xD

EN 60794.1.E6

Torsion

+90°C, 8

Positive

EN 187 000 M 508

Impact

EN 187000 M 504

Temperature

–

EN 60794.1.E11

Property

Unit

Value

Test Standard

Density

g/cm³

>20

ASTM D 638

Tensile Strength at Break

N/mm²

>400

ASTM D 638

Elongation at Break

2/10

ASTM D 1693

E.S.C.R. (10% Igepal C-630)

>500 hours

2/10

ASTM D 746

Breaking Cold

<-75°C

2.5+0.5

ASTM D 1603

Carbon Black Rate

<0.950

ASTM D 792 Method A

Oxygen Induction Time

200°C

>25

IEC 811.4.2 B

Property

Unit

Value

Test Standard

Density (25°C)

g/cm³

+0.05

DIN 51 757

Drop Point (24 hours)

°C

Appropriate

IEC 811.5.1 B

Drip Point (24 hours)

°C

>70

REA PE 39

Flash Point

°C

>230

ISO 2592

Oil Separation (150°C, 24 hours)

FTM STD 791 C

Volatility

FTM STD 791 C

Water Amount

<0.05

DIN 51 777

Acid Value (100°C)

% (mg KOH/g)

<0.01

DIN 53 402

Abrasion

–

Positive

IEC 811.5.1

Penetration (25°C / -30°C)

1/10 mm

>150

ISO 2137

Oxygen Induction Time (180°C)

minute

>20

IEC 811.4.2 B

100-500 V (100°)

Ω × m

>10

ASTM D 1169

100-500 V (23°)

Ω × m

–

ASTM D 1169

Property

Unit

Value

Test Standard

Loose Tube

–

>10,11

–

Density

g/cm³

1.31+0.03

ISO 1183

Water Absorption (23°C)

<0.45

DIN 53 495

Tensile Strength at Break

N/mm²

<30

ISO 527

Elongation at Break

>50

ISO 527

E-Modulus

N/mm²

>2200

ISO 527

Shore

Shore D

>78

DIN 53 505

Melting Temperature (DSC)

°C

>220

ISO 3146 C

Lin. Thermal Expansion Coefficient (-23 … +80°C)

°K-1 x10-4

<1.3

–

Property

Unit

Value

Test Standard

Density

g/cm³

As offered

Tensile Strength at Break

As offered

Elongation at Break

N/mm²

As offered

E-Modulus

As offered

Property

Unit

Value

Test Standard

Steel Thickness

0.155±0.015

ASTM A 623 M

Tensile Strength at Break

N/mm²

>300

ASTM E 6892

Elongation at Break

>15

ASTM E 6892

Thickness of Coating

>0.050±0.01

ASTM A 623 M

DC Resistance

ohm/km

<40

ASTM A 6892
