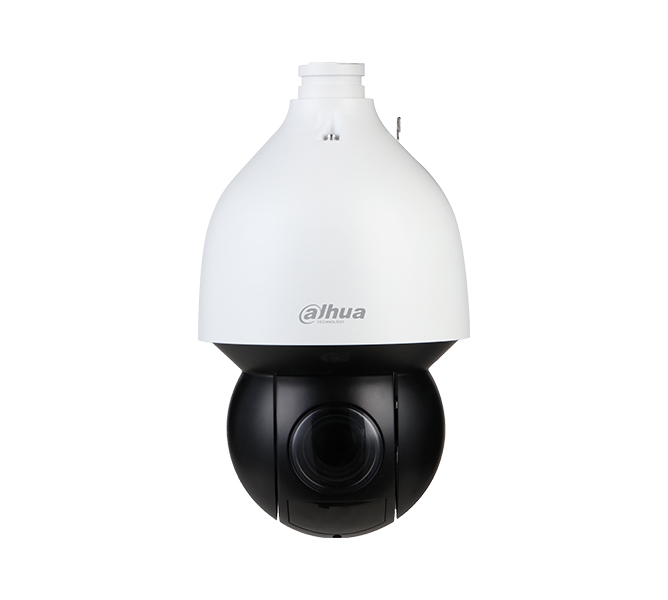

Stock Code: SD5A225XA-HNR-SL
| Camera | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/2.8" CMOS | ||||||||
| Max. Resolution | 1920 (H) × 1080 (V) | ||||||||
| Pixel | 2 MP | ||||||||
| ROM | 4 GB | ||||||||
| RAM | 1 GB | ||||||||
| Electronic Shutter Speed | 1/3 – 1/30000 s | ||||||||
| Scanning System | Progressive | ||||||||
| Min. Illumination | Color: 0.005 Lux@F1.6 B/W: 0.0005 Lux@F1.6 0 Lux (IR light on) |
||||||||
| IR Distance | 150 m (492.13 ft) | ||||||||
| Illuminator On/Off Control | Zoom Prio / Manual / SmartIR / Off | ||||||||
| Illuminator Number | 4 | ||||||||
| Lens | |||||||||
| Focal Length | 5.4 mm – 135 mm | ||||||||
| Max. Aperture | F1.6 – F3.5 | ||||||||
| Field of View | H: 58.7° – 3.1° V: 33.2° – 1.7° D: 67.3° – 3.9° |
||||||||
| Optical Zoom | 25x | ||||||||
| Focus Control | Auto / Semi-Auto / Manual | ||||||||
| Close Focus Distance | 0.1 m – 1.5 m (0.32 ft – 4.92 ft) | ||||||||
| Iris Control | Auto / Manual | ||||||||
| DORI Distance | |||||||||
| DORI Distance |
|
||||||||
| PTZ | |||||||||
| Pan/Tilt Range | Pan: 0° – 360° Tilt: -15° – +90° |
||||||||
| Manual Control Speed | Pan: 0.1°/s – 300°/s Tilt: 0.1°/s – 200°/s |
||||||||
| Preset Speed | Pan: 400°/s Tilt: 300°/s |
||||||||
| Presets | 300 | ||||||||
| Tour | 8 (up to 32 preset per tour) | ||||||||
| Pattern | 5 | ||||||||
| Scan | 5 | ||||||||
| Speed Adjustment | Support | ||||||||
| Power-off Memory | Support | ||||||||
| Idle Motion | Preset / Tour / Pattern / Scanning | ||||||||
| Protocol | DH-SD Pelco-P/D (Auto recognition) |
||||||||
| General Intelligence | |||||||||
| Event Trigger | Motion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, and storage anomaly. | ||||||||
| IVS | Object Abandoned/Missing | ||||||||
| Artificial Intelligence | |||||||||
| Smart Capture | Support human, motor vehicle and non-motor vehicle image capture. | ||||||||
| Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. | ||||||||
| SMD PLUS | Support | ||||||||
| Auto Tracking | Support | ||||||||
| Face Detection | Support | ||||||||
| Video | |||||||||
| Compression | H.265 / H.265+ / H.264+ / H.264 / MJPEG (Sub Stream) | ||||||||
| Streaming Capability | 3 streams | ||||||||
| Resolution | 1080P (1920 × 1080); 1.3 M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) | ||||||||
| Frame Rate | Main stream: 1080P/1.3 M/720P (1 – 50/60 fps) Sub stream 1: D1/CIF (1 – 25/30 fps) Sub stream 2: 1080P/1.3M/720P/D1/CIF (1 – 25/30 fps) |
||||||||
| Bit Rate Control | Variable / Constant | ||||||||
| Bit Rate | H.265/H.264: 3 kbps – 20480 kbps | ||||||||
| Day/Night | Auto (ICR) / Color / B/W | ||||||||
| BLC | Support | ||||||||
| WDR | 120 dB | ||||||||
| HLC | Support | ||||||||
| White Balance | Auto / Indoor / Outdoor / Tracking / Manual / Sodium lamp / Natural / Street lamp | ||||||||
| Gain Control | Auto / Manual | ||||||||
| Noise Reduction | 2D / 3D | ||||||||
| Motion Detection | Support | ||||||||
| Region of Interest (RoI) | Support | ||||||||
| Image Stabilization | Electronic | ||||||||
| Defog | Support | ||||||||
| Digital Zoom | 16x | ||||||||
| Flip | 180° | ||||||||
| Privacy Masking | Up to 24 areas, and up to 8 areas in the same view | ||||||||
| Audio | |||||||||
| Compression | G.711A; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723 | ||||||||
| Network | |||||||||
| Ethernet | 1 × RJ-45 Port 10/100Base-T | ||||||||
| Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP | ||||||||
| Interoperability | ONVIF Profile S&G&T; CGI | ||||||||
| Streaming Method | Unicast / Multicast | ||||||||
| User/Host | 20 (Total bandwidth 64M) | ||||||||
| Storage | FTP; Micro SD card (256G); NAS | ||||||||
| Browser | IE7 and newer versions Chrome 42 and older versions Firefox 52 and older versions Safari |
||||||||
| Management Software | Smart Player / Smart PSS / DSS / Easy4ip | ||||||||
| Mobile Phone | iOS / Android | ||||||||
| Certification | |||||||||
| Certifications | CE: EN55032 / EN55024 / EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1 + CAN/CSA C22.2 No.60950-1 IEC: 60950-22 IEC: 62236-4 IEC: 60068-2-6 |
||||||||
| Port | |||||||||
| Audio Input | 1 (LINE IN; bare wire) | ||||||||
| Audio Output | 1 (LINE OUT; bare wire) | ||||||||
| Alarm I/O | 2/1 | ||||||||
| Power | |||||||||
| Power Supply | DC 24 V / 2.5 A PoE+ |
||||||||
| Power Consumption | 8 W 20 W (IR light on) |
||||||||
| Environment | |||||||||
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) | ||||||||
| Operating Humidity | ≤ 95% RH | ||||||||
| Protection | IP67; IK10; TVS 6000V lightning protection; surge protection | ||||||||
| Structure | |||||||||
| Casing | Metal | ||||||||
| Dimensions | Φ190 mm × 332 mm (7.48" × 13.07") | ||||||||
| Net Weight | 4.7 kg (10.36 lb) | ||||||||
| Gross Weight | 8 kg (17.64 lb) | ||||||||
