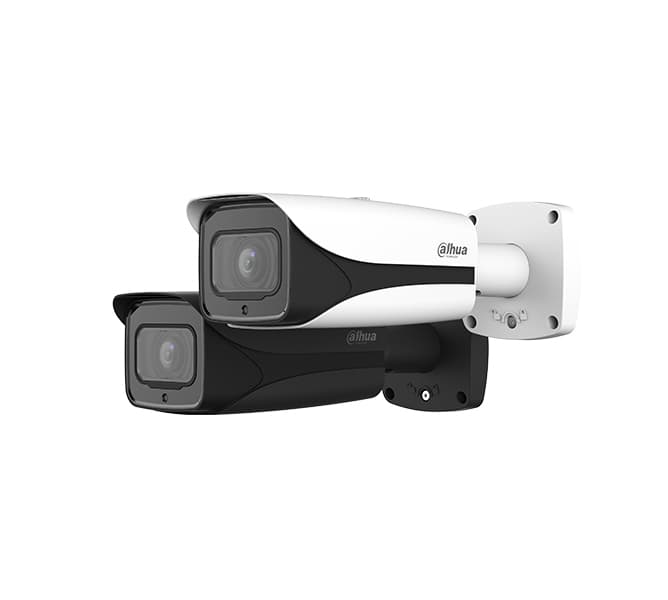

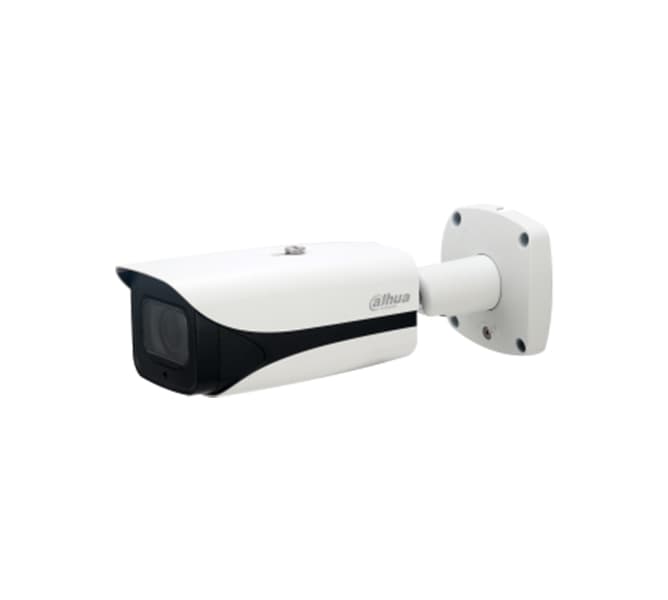

Stock Code: IPC-HFW5241E-Z5E
| Camera | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/2.8" CMOS | |||||||||||||||
| Max. Resolution | 1920 (H) × 1080 (V) | |||||||||||||||
| ROM | 4 GB | |||||||||||||||
| RAM | 1 GB | |||||||||||||||
| Scanning System | Progressive | |||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s – 1/100,000 s | |||||||||||||||
| Min. Illumination | 0.0007 lux@F1.6 (Color, 30 IRE); 0.0004 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) | |||||||||||||||
| S/N Ratio | >56 dB | |||||||||||||||
| Illumination Distance | Up to 120 m (393.70 ft) (IR) | |||||||||||||||
| Illuminator On/Off Control | Auto; Zoomprio; Manual | |||||||||||||||
| Illuminator Number | 4 (IR LED) | |||||||||||||||
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° | |||||||||||||||
| Lens | ||||||||||||||||
| Lens Type | Motorized vari-focal | |||||||||||||||
| Lens Mount | Module | |||||||||||||||
| Focal Length | 7 mm – 35 mm | |||||||||||||||
| Max. Aperture | F1.6 | |||||||||||||||
| Field of View | H: 30°–11°; V: 17°–6°; D: 35°–13° | |||||||||||||||
| Iris Control | Auto | |||||||||||||||
| Close Focus Distance | 1.5 m (4.92 ft) | |||||||||||||||
| DORI Distance |
| |||||||||||||||
| Intelligence | ||||||||||||||||
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection. Supports long-distance mode. Supports self-learning, it filters out false alarms. | |||||||||||||||
| Smart Object Detection | Smart abandoned object; smart missing object | |||||||||||||||
| SMD | SMD 3.0 | |||||||||||||||
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal, and motor vehicles, and search through live and recorded videos to quickly locate targets. | |||||||||||||||
| AI SSA | Yes | |||||||||||||||
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. | |||||||||||||||
| People Counting | Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. | |||||||||||||||
| Heat Map | Yes | |||||||||||||||
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. | |||||||||||||||
| Smart Search | Work together with Smart NVR to perform refined intelligent search, event extraction and merging to event videos | |||||||||||||||
| Smart Sound Detection | Yes | |||||||||||||||
| Video | ||||||||||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | |||||||||||||||
| Smart Codec | Smart H.265+; Smart H.264+ | |||||||||||||||
| AI Coding | AI H.265; AI H.264 | |||||||||||||||
| Video Frame Rate | Main stream: 1080p@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | |||||||||||||||
| Stream Capability | 4 streams | |||||||||||||||
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576 / 704 × 480); VGA (640 × 480); CIF (352 × 288 / 352 × 240) | |||||||||||||||
| Bit Rate Control | CBR/VBR | |||||||||||||||
| Video Bit Rate | H.264: 32 kbps – 12032 kbps; H.265: 12 kbps – 7424 kbps | |||||||||||||||
| Day/Night | Auto(ICR)/Color/B/W | |||||||||||||||
| BLC | Yes | |||||||||||||||
| HLC | Yes | |||||||||||||||
| WDR | 120 dB | |||||||||||||||
| Scene Self-adaptation (SSA) | Yes | |||||||||||||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | |||||||||||||||
| Gain Control | Auto | |||||||||||||||
| Noise Reduction | 3D NR | |||||||||||||||
| Motion Detection | OFF/ON (4 areas, rectangular) | |||||||||||||||
| Region of Interest (RoI) | Yes (4 areas) | |||||||||||||||
| Image Stabilization | Electronic Image Stabilization (EIS) | |||||||||||||||
| Defog | Yes | |||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) | |||||||||||||||
| Mirror | Yes | |||||||||||||||
| Privacy Masking | 8 areas | |||||||||||||||
| Audio | ||||||||||||||||
| Built-in MIC | Yes | |||||||||||||||
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 | |||||||||||||||
| Alarm | ||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection | |||||||||||||||
| Network | ||||||||||||||||
| Network Port | RJ-45 (10/100 Enhancement Base-T) | |||||||||||||||
| SDK and API | Yes | |||||||||||||||
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register | |||||||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI | |||||||||||||||
| User/Host | 20 (Total bandwidth: 80 M) | |||||||||||||||
| Storage | FTP; SFTP; Micro SD card (support max. 1 TB); NAS | |||||||||||||||
| Browser | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later | |||||||||||||||
| Management Software | SmartPSS Lite; DSS; DMSS | |||||||||||||||
| Mobile Client | iOS; Android | |||||||||||||||
| Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification | |||||||||||||||
| Certification | ||||||||||||||||
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 | |||||||||||||||
| Port | ||||||||||||||||
| Audio Input | 1 channel (RCA port) | |||||||||||||||
| Audio Output | 1 channel (RCA port) | |||||||||||||||
| Alarm Input | 2 channels in: wet contact, 5mA 3V–5V DC | |||||||||||||||
| Alarm Output | 1 channel out: wet contact, 300mA 12V DC | |||||||||||||||
| Power | ||||||||||||||||
| Power Supply | 12 VDC/PoE (802.3af)/ePoE | |||||||||||||||
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. | |||||||||||||||
| Power Consumption | Basic: 3.4 W (12 VDC); 4.5 W (PoE) Max. (H.265+ WDR+ Intelligence on+ IR on): 9.3 W (12 VDC); 11.6 W (PoE) | |||||||||||||||
| Environment | ||||||||||||||||
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | |||||||||||||||
| Operating Humidity | ≤95% | |||||||||||||||
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | |||||||||||||||
| Storage Humidity | 10%–95% (RH), non-condensing | |||||||||||||||
| Protection | IP67; IK10 | |||||||||||||||
| Structure | ||||||||||||||||
| Casing Material | Metal | |||||||||||||||
| Product Dimensions | 273.2 mm × 95.0 mm × 95.0 mm (10.76" × 3.74" × 3.74") (L × W × H) | |||||||||||||||
| Net Weight | 1.13 kg (2.49 lb) | |||||||||||||||
| Gross Weight | 1.68 kg (3.70 lb) | |||||||||||||||
