Frames the scene remotely and tells people from vehicles

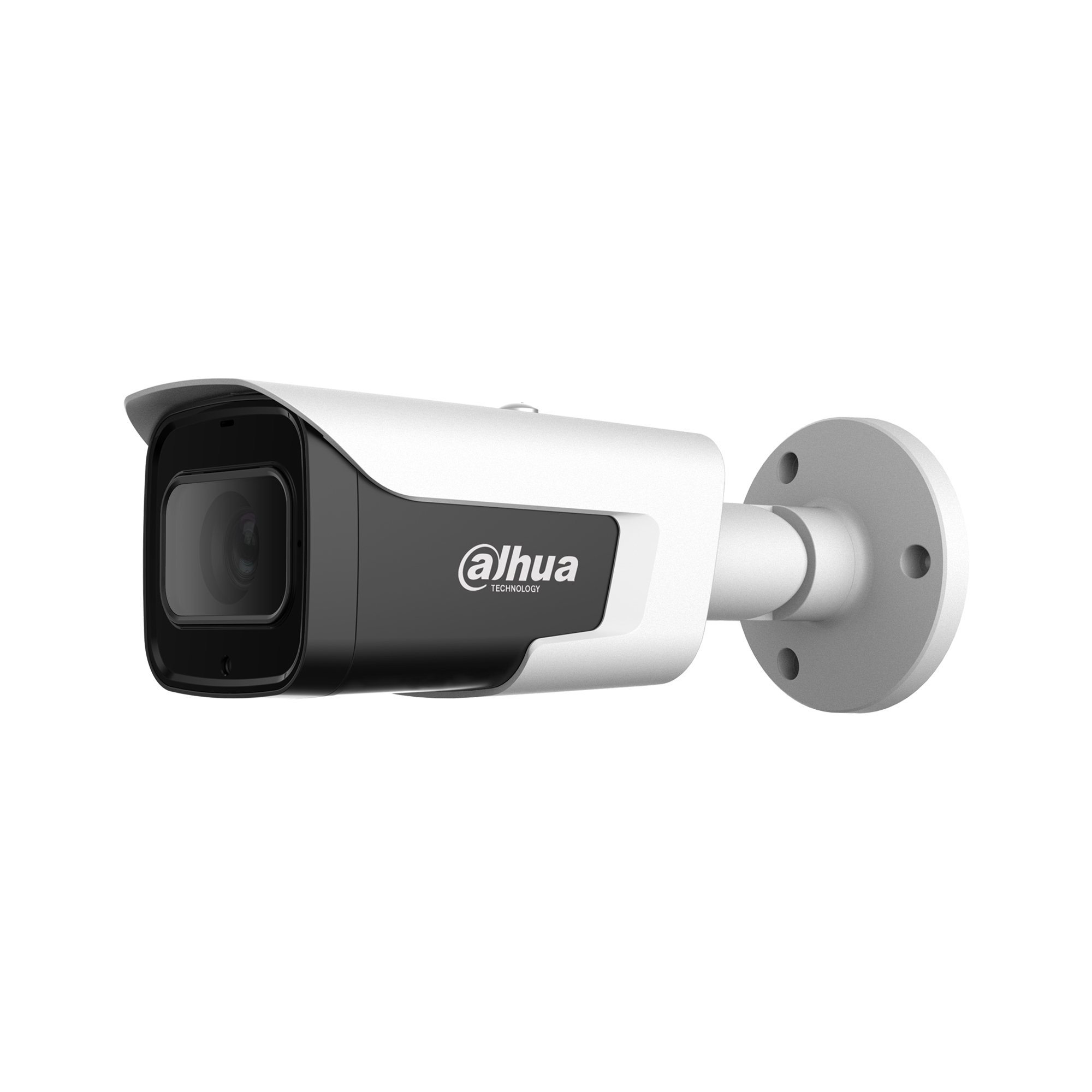

An outdoor bullet network camera with a motorized vari-focal lens. The field of view changes without touching the camera, and IVS rules classify tripwire and intrusion events as human or vehicle.

1920 × 1080Max. resolution

1/2.8"Image sensor

2.7 – 13.5 mmFocal length

IP67 · IK10Protection Grade

12 VDC · PoEPower supply

Key features

2MP

1080p output resolution

The 1/2.8" CMOS sensor delivers 1920 × 1080 video at up to 25/30 fps.

2.7 – 13.5mm

Motorized vari-focal lens

It sets the frame from wide to narrow without removing the camera.

120dB

Wide dynamic range

It opens up the dark areas in a scene shot against the light.

256GB

Recording inside the camera

It records to a micro SD card, to FTP, and to SFTP.

H.265

Video Compression

Smart H.265+ lowers the bit rate and stretches recording time.

IN DAILY USE

Tells people from vehiclesSMD Plus classifies motion and cuts down alarms that lead nowhere.

Installs on one cableIt draws both power and the network link from a PoE switch.

Works outdoorsThe sealed housing keeps dust and water out and the shell resists impact.

Usage areasOutdoor surveillance·Perimeter protection

Alarm and audio inputs and outputs exist only on the -ZAS model.

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto / Manual; 1/3 s – 1/100,000 s

Minimum Illumination

0.002 lux@F1.4 (Color, 30 IRE); 0.0002 lux@F1.4 (B/W, 30 IRE); 0 lux (IR on)

S/N Ratio

> 56 dB

IR Distance

Max. 60 m (IR LED)

IR On/Off Control

Auto; Manual

Illuminator Number

4 (IR LED)

Pan / Tilt / Rotation Range

Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Mount Type

φ14

Focal Length

2.7 mm – 13.5 mm

Max. Aperture

F1.4

Field of View

Horizontal: 108°–30°; Vertical: 56°–17°; Diagonal: 131°–35°

Iris Control

Fixed

Close Focus Distance

0.8 m

DORI Distance

Lens	Detect	Observe	Recognize	Identify
Wide	44.1 m	17.7 m	8.8 m	4.4 m
Tele	144.8 m	57.9 m	29.0 m	14.5 m

Intelligence

IVS (Perimeter Protection)

Tripwire, intrusion (vehicle and human detection)

Smart Search

Integrated smart search with Smart NVR, event extraction

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (supported in sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main Stream: 1920 × 1080 @ (1–25/30 fps); Sub Stream 1: 704 × 576 @ (1–25 fps) / 704 × 480 @ (1–30 fps); Sub Stream 2: CIF @ (1–15 fps)

Stream Capability

Resolution

1080p; 1.3M; 720p; D1; VGA; CIF

Bit Rate Control

CBR / VBR

Video Bit Rate

H.264: 32 kbps – 6144 kbps; H.265: 12 kbps – 6144 kbps

Day/Night

Auto (ICR) / Color / B/W

Backlight Compensation (BLC)

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

On / Off (4 areas, rectangular)

Region of Interest (ROI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (90°/270° supported at 1080p and lower resolutions)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G.726; PCM

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (only -ZAS supported); SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P; SNMP; QoS; SSL; HTTPS; SIP

Interoperability

ONVIF (Profile S/Profile T); CGI

User/Host

6 (Total bandwidth: 36 M)

Storage

FTP; SFTP; Micro SD card (max. 256 GB)

Browser

IE; Chrome; Firefox

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Application

iOS; Android

Cybersecurity

Video encryption; configuration encryption; WSSE; account lockout; IP/MAC filtering; X.509 certificate generation and import; syslog; HTTPS; 802.1x; trusted boot, execution and upgrade

Certifications

CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL 62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port) (only -ZAS supported)

Audio Output

1 channel (RCA port) (only -ZAS supported)

Alarm Input

1 channel, 5 mA 3 V–5 V DC (only -ZAS supported)

Alarm Output

1 channel, 300 mA 12 V DC (only -ZAS supported)

Power

Power Supply

12 V DC / PoE (802.3af)

Power Consumption

ZS: Basic: 2 W (12 V DC); 2.6 W (PoE); Max. (H.265 + smart + WDR + IR): 8.5 W (12 V DC); 9.8 W (PoE); ZAS: Basic: 2 W (12 V DC); 2.6 W (PoE); Max. (H.265 + smart + WDR + IR): 8.6 W (12 V DC); 9.9 W (PoE)

Environmental

Operating Temperature

–35 °C to +60 °C

Operating Humidity

≤ 95%

Storage Temperature

–40 °C to +60 °C

Ingress Protection

IP67; IK10; TVS 2000 V lightning protection, surge protection and voltage protection

Construction

Casing Material

Metal

Dimensions

238.5 mm × 90.7 mm × 90.7 mm

Net Weight

ZS: 0.73 kg; ZAS: 0.76 kg

Gross Weight

ZS: 0.99 kg; ZAS: 1.02 kg
