Delivers color video after dark.

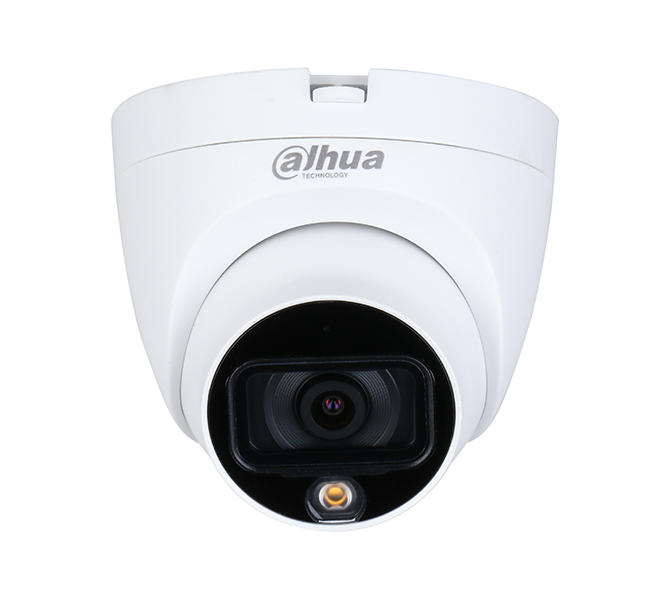

An HDCVI eyeball camera that keeps recording in color at night with its white light illuminator. The quick-to-install body shortens mounting time, and a single BNC port switches between CVI, TVI, AHD and CVBS output.

2MPEffective Pixels

1/2.8 inchImage Sensor

F1.6Max. Aperture

20 mIllumination Distance

IP67Protection Grade

12V ±30% DCPower Supply

Key features

0Lux

Color night view under white light

With the white light on it produces color video in an unlit scene, and reaches 0.01 Lux with the light off.

30fps

Smooth 1080p video

Records up to 30 frames per second at 1920 × 1080 resolution.

BNCport

Four output formats

One BNC port switches between CVI, TVI, AHD and CVBS output.

126.2°

Wide field of view

The 2.8 mm lens covers 126.2° diagonal and 106° horizontal; the 3.6 mm option narrows to 103.6° diagonal.

43.9m

DORI detection distance

With the 2.8 mm lens it detects motion up to 43.9 meters and recognizes up to 8.8 meters.

IN DAILY USE

Night footage keeps its colorThe camera records color information after dark, so clothing and vehicle color stay readable.

Faster mountingThe quick-to-install eyeball body cuts installation time.

Built for rough conditionsThe IP67 rated housing keeps dust and water out and works from –40°C to +60°C.

ApplicationsIndoor installations·HDCVI analog recording systems

Camera

Image Sensor

1/2.8 inch CMOS

Effective Pixels

1920 (H) × 1080 (V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s; NTSC: 1/30 s–1/100000 s

S/N Ratio

>65 dB

Minimum Illumination

0.01 Lux/F1.6; 0 Lux white light on

Illumination Distance

Distance up to 20 m (65.61 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

Pan/Tilt/Rotation Range

Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: 126.2° × 106° × 56.5° (Diagonal × Horizontal × Vertical)
3.6 mm: 103.6° × 86.9° × 46.3° (Diagonal × Horizontal × Vertical)

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 0.7 m (2.29 ft); 3.6 mm: 1.2 m (3.94 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	43.9 m (144.02 ft)	17.5 m (57.41 ft)	8.8 m (28.87 ft)	4.4 m (14.43 ft)
3.6 mm	55.2 m (181.1 ft)	22.1 m (72.5 ft)	11.0 m (36.1 ft)	5.5 m (18.0 ft)

Video

Frame Rate

CVI: PAL 1080p@25 fps, 720p@25 fps; NTSC 1080p@30 fps, 720p@30 fps
AHD: PAL 1080p@25 fps; NTSC 1080p@30 fps
TVI: PAL 1080p@25 fps; NTSC 1080p@30 fps
CVBS: PAL 960H; NTSC 960H

Resolution

1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480)

BLC

BLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart Light

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

CE (EN55032, EN55024, EN50130-4, EN60950-1)

FCC

FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Interface

N/A

Power

Power Supply

12V ±30% DC

Power Consumption

Max 3.1W (12V DC, white light on)

Environment

Operating Temperature

–40°C to +60°C (–40°F to 140°F); <95% (non-condensation)

Storage Temperature

–40°C to +60°C (–40°F to 140°F); <95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Inner core: metal + plastic; Cover: plastic; Pedestal: plastic

Camera Dimensions

φ97.1 mm × 91.4 mm (φ3.82" × 3.6")

Net Weight

0.21 kg (0.46 lb)

Gross Weight

0.28 kg (0.62 lb)
