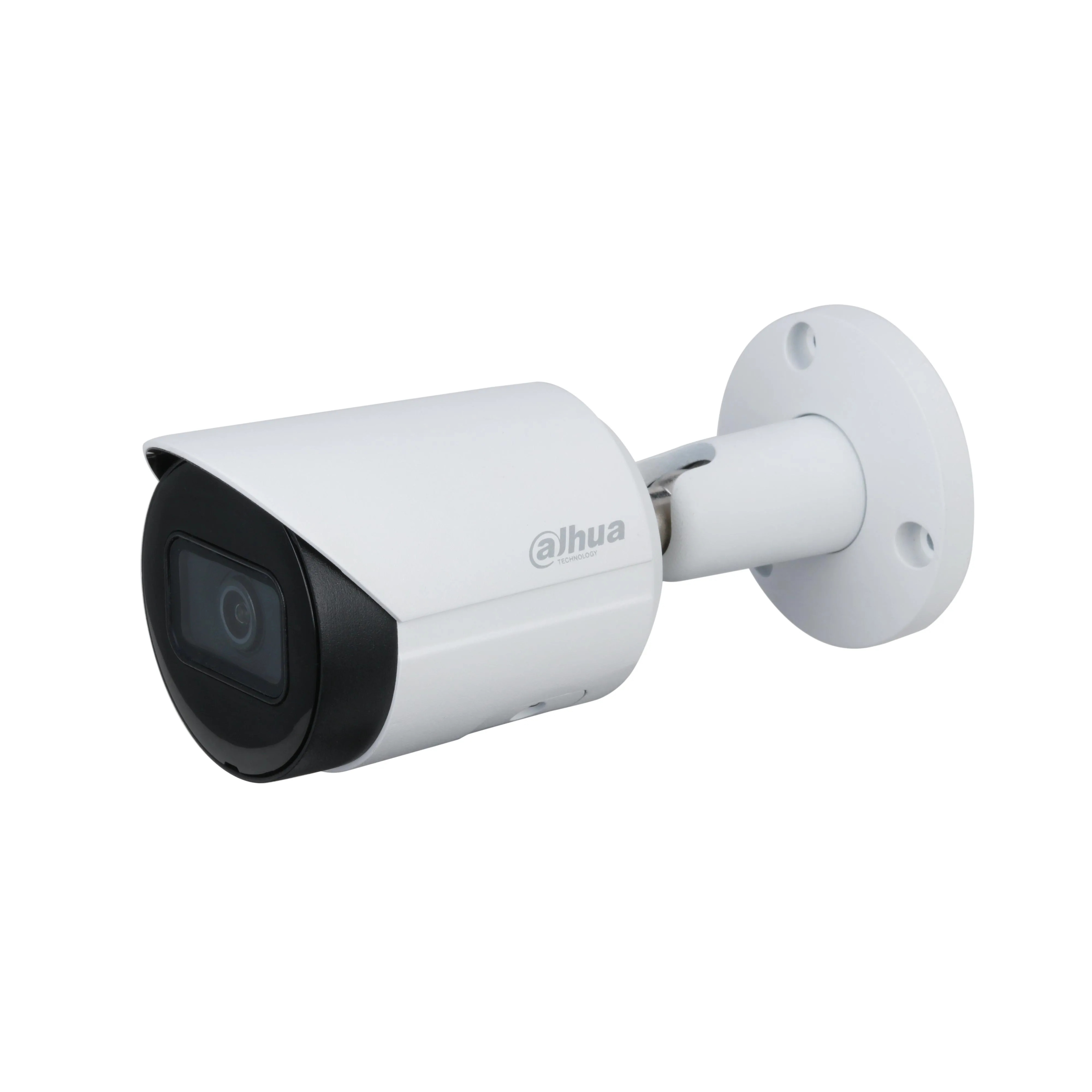

An outdoor bullet camera that holds detail against strong backlight

A metal-housed bullet network camera for outdoor monitoring points. The IP67-rated body withstands rain and dust, and 120 dB WDR balances the image in difficult light such as sunset.

1920 × 1080Max. Resolution

1/2.8" CMOSSensor

F1.6Maximum Aperture

30 mIR LED Distance

IP67Protection Grade

12 V DC / PoEPower

Key features

2MP

Full HD video stream

A 1/2.8" CMOS sensor delivers 1920 × 1080 at 25/30 fps.

30m

Night vision

A single IR LED lights the scene up to 30 meters when the light drops.

120dB

Wide dynamic range

WDR balances dark areas against strong backlight.

H.265+

Lower bit rate

Smart H.265+ encoding cuts network traffic and disk usage.

256GB

Onboard recording

The micro SD card slot takes up to 256 GB, so recording continues if the network drops.

IN DAILY USE

InstallationIt mounts to a wall or ceiling on a bracket, and the body turns on three axes for manual framing.

Recording managementIt connects to ONVIF-compliant NVRs and appears in Smart PSS, DSS and DMSS.

Event alertsIt sends alerts on motion, video tampering, tripwire and intrusion.

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s – 1/100,000 s

Min. Illumination

0.002 Lux@F1.6 (Color, 30 IRE)
0.0002 Lux@F1.6 (B/W, 30 IRE)
0 Lux (Illuminator on)

S/N Ratio

> 56 dB

IR Distance

30 m (98.43 ft) (IR)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0° – 360°
Tilt: 0° – 90°
Rotation: 0° – 360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

2.8 mm: F1.6
3.6 mm: F1.6

Field of View

2.8 mm: Horizontal: 107°; Vertical: 56°; Diagonal: 127°
3.6 mm: Horizontal: 88°; Vertical: 44°; Diagonal: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.7 m (2.30 ft)
3.6 mm: 1.3 m (4.27 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	43.9 m (144.03 ft)	17.5 m (57.41 ft)	8.8 m (28.87 ft)	4.4 m (14.44 ft)
3.6 mm	58.9 m (193.24 ft)	23.6 m (77.43 ft)	11.8 m (38.71 ft)	5.9 m (19.36 ft)

Smart Event

IVS

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream:
1920 × 1080@1 – 25/30 fps
Sub stream:
704 × 576@1 – 25 fps
704 × 480@1 – 30 fps
The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps – 6144 kbps
H.265: 12 kbps – 6144 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

12 V DC/PoE (802.3af)

Power Consumption

Basic: 1.8 W (12 V DC); 2.4 W (PoE)
Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 3.9 W (12 V DC); 4.6 W (PoE)

Environment

Operating Temperature

-40 °C to +60 °C (-40 °F to +140 °F)

Operating Humidity

≤ 95%

Storage Temperature

-40 °C to +60 °C (-40 °F to +140 °F)

Protection

IP67

Structure

Casing

Metal

Product Dimensions

166.2 mm × Φ70 mm (6.54" × Φ2.76")

Net Weight

0.48 kg (1.06 lb)

Gross Weight

0.57 kg (1.26 lb)
