System

Main Processor

Intel Dual-core Processor

Memory

8GB, up to 32GB

Operating System

Embedded LINUX

Artificial Intelligence

Face Recognition

8 channel video stream face recognition / 20 channel picture stream face recognition (with FD camera)

Performance

20 face pictures /sec processing (modeling and comparing)

Metadata

Sturctured data of gender, age, expression, glasses, moustache, mouth mask information.

Stranger Mode

Detect strangers' faces(not in device's face database).Similarity threshold can be set manually.

Trigger Events

Buzzer, snapshot, recording, etc.

Search by Image

Up to 10 target face images search at same time. Support similarity threshold set for each target face image.

Database Management

Up to 20 face databases with 100,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.

Database Application

Each database can be applied to video channels independently.

Audio and Video

IP Camera Input

128 Channel

Two-way Talk

1 audio input, 2 audio output, RCA

Display

Interface

3 HDMI, 2VGA

Resolution

HDMI1/2/3 : 3840 × 2160 , 1920 × 1080 , 1280 × 1024,

1280 × 720

VGA1/2 : 1920 × 1080 , 1280 × 1024,

1280 × 720

Decoding Capability

20-ch@1080P(30fps)

Multi-screen Display

Up to 36 split for each screen

OSD

Camera title, Time, Motion detection, Recording

Recording

Bandwidth

320Mbps

Compression

H.265/H.264/MJPEG/MPEG4

Resolution

12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, etc.

Record Mode

Schedule (Continuous, Event)

Video Detection and Alarm

Trigger Events

Recording, Snapshot, Buzzer, etc.

Video Detection

Motion Detection, MD Zones: 396 (22 × 18); Tampering

Alarm input

16 Channel

Relay Output

8 Channel

Playback and Backup

Sync Playback

Up to 16ch sync playback, 64Mbps playback bandwidth

Search Mode

Time /Date, Video Detection, Face and Exact Search (accurate to second)

Backup Mode

USB Device/Network

Third-party Support

Third-party Support

AXIS, Panasonic, Sony, etc.

Network

Interface

4 RJ-45 Ports (10/100/1000Mbps)

Network Port Mode

Independent Ethernet Ports, Load Balance, Fault-Tolerance, Link Aggregation

Network Function

HTTP, HTTPS, TCP/IP, UDP, RTSP, IPv4, NTP, DHCP, DNS, IP Filter, IP Search (Support Dahua IP camera, DVR, etc.), P2P

Interoperability

ONVIF 2.4, SDK

Storage

Internal HDD

8 SATA HDDs, Up to 10 TB capacity for each HDD

HDD Mode

Single, Raid 0/1/5/6/10(Enterprise-level HDDs are recommended), Support Global HDD Hot-spare

eSATA

1 eSATA Port (Please contact technical engineer to confirm the compatible device)

Auxiliary Interface

USB

4 USB Ports (2 USB 2.0 , 2 USB 3.0 )

RS232

1 Port, for PC Communication

RS485

1 Port

Electrical

Power Supply

AC100V ~ 240V, 50 ~ 60 Hz

Power Consumption

<130W (With HDD)

Environmental

Operating Conditions

0°C ~ +45°C (+32°F ~ +113°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions

2U, 439.7mm x 446.2mm x 90.8mm (17.32" x 17.57" x 3.57")

Net Weight

8.55kg (18.85lb) (without HDD)

Installation

Standard 19-inch Rack-mounted

Certifications

CE

EN55032, EN55035, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

UL

UL 60950-1

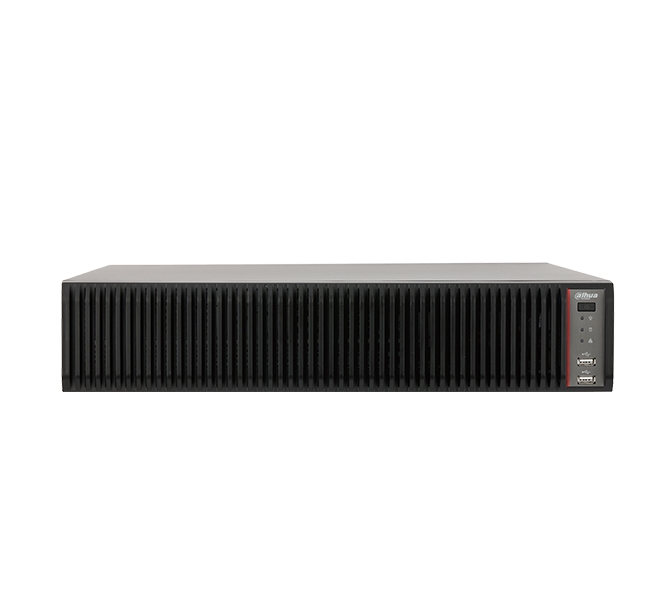

2U 8HDD AI NVR
