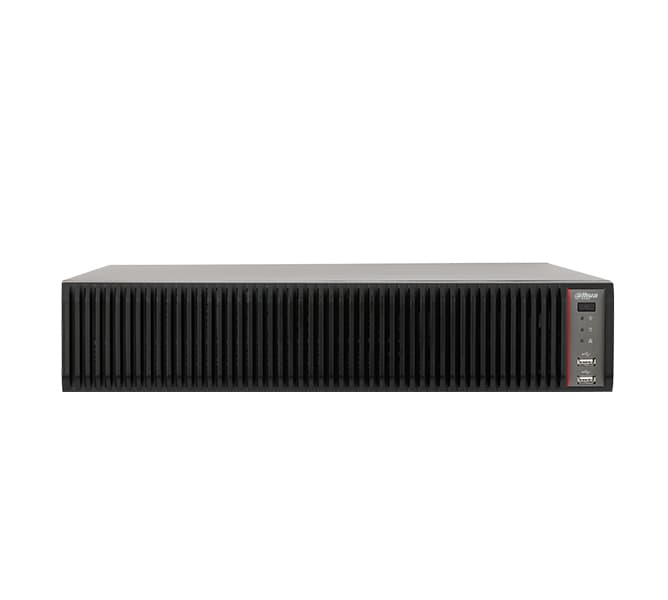

Stock Code: IVSS7024DR-16I
| System | |
|---|---|
| Main Processor | Industry embedded micro-controller |
| Operating System | Embedded Linux OS |
| Operation Interface | WEB (PCAPP), local GUI |
| AI Applications | |
| AI by Camera | Face detection, face recognition, video metadata, IVS (tripwire, intrusion, abandoned object, missing object, fast moving, parking detection, crowd gathering, loitering, and fence-crossing), people counting, smoking detection, call detection |
| AI by Device | Face detection, face recognition, video metadata, IVS (tripwire, intrusion, crowd gathering, loitering detection, parking detection) |
| IVS | |
| IVS Performance (AI by Device) (Channel Number) | General model: 256-channel; Advanced model: 64-channel |
| IVS Performance (AI by Camera) (Channel Number) | 256-channel |
| Human Face Detection | |
| Human Face Properties | Supports 6 properties: Gender, age range (6 levels), glasses, expression (8 types), mouth mask, and beard |
| Face Detection Performance (AI by Device) (1080P) (Channel Number) | 128-channel |
| Face Detection Performance (AI by Camera) (Channel Number) | 256-channel |
| Human Face Recognition | |
| Face Database Capacity | 50 plate databases with 300,000 plate numbers in total |
| Human Face Recognition Performance (AI by Device) (1080P) (Channel Number) | 128-channel with normal IP camera; 256-channel with face detection IP camera (Totally 256 face pictures analyzed per second) |
| Human Face Recognition Performance (AI by Camera) (Channel Number) | 256-channel |
| ANPR | |
| Plate Database Capacity | 50 plate databases with 300,000 plate numbers in total; Supports black list/white list |
| Plate Detection Performance by ITC Camera (Channel Number) | 64-channel |
| Video Metadata | |
| Human Body Properties | Top color, top type, bottom color, bottom type, cap, bag, age, gender, and umbrella |
| Vehicle Properties | Supports 9 properties: Plate, plate color, vehicle body, vehicle brand, driver calling, seatbelt status, decoration object in the vehicle, and vehicle registration place |
| Non-motorized Vehicle Properties | Supports 4 properties: Vehicle type, vehicle color, people amount, and helmet |
| Metadata Performance (AI by Device) (1080P) (Channel Number) | 64-channel |
| Metadata Performance (AI by Camera) (Channel Number) | 64-channel |
| Video Parameters | |
| Remote Connection | 256-channel |
| Network Bandwidth | Incoming bandwidth: 512Mbps recording bandwidth: 384Mbps outgoing bandwidth: 128Mbps |
| Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/CIF/QCIF |
| Decoding Capability | 6-channel12MP (20fps)/7-channel12MP (15fps)/6-channel8MP (30fps)/12-channel8MP (15fps)/7-channel6MP(30fps)/9-channel5MP(30fps)/11-channel5MP (25fps)/12-channel4MP (30fps)/18-channel4MP (20fps)/19-channel3MP (25fps)/12-channel1080P (60fps)/24-channel1080P (30fps)/36-channel720P (30fps) |
| Video Output | 1-channel VGA output, 3-channel HDMI output, VGA 1/HDMI 1 outputs the same video source Supports 4K output |
| Multi-screen Display | Customized display Max. 36-channel local live view Max. 16-channel PCAPP live view |
| Third-party Support | Onvif, RTSP, Sony, Panasonic, Axis, Arecont, Pelco, Canon, Samsung |
| Operating System | Embedded Linux OS |
| Operation Interface | WEB (PCAPP), local GUI |
| Compression | |
| Video Compression | Smart H.265+/Smart H.264+/H.265/H.264 |
| Audio Compression | G.711A/G.711U/PCM/G726 |
| Network | |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
| Mobile Phone | DMSS |
| Interoperability | ONVIF (Profile S, T and G), CGI, SDK |
| Browser | Chrome, PCAPP, IE9 or higher, Firefox |
| Network Mode | NIC binding mode such as multiple-address mode, load balance, fault-tolerance, etc |
| Record Playback | |
| Multiple-channel Playback | Max. 16-channel playback |
| Record Search | Search video detection/manual record/IO alarm/intelligent event/all record file |
| Storage Medium | Internal HDD, SAS disk array enclosure |
| Backup Method | HDD, peripheral USB storage device |
| Playback Function | Play, pause, stop, fast forward, fast backward, reverse play, frame by frame play Full-screen, backup (clip/file), snapshot, digital zoom, audio on/off |
| Storage | |
| HDD Group | 24 |
| RAID | RAID 0/1/5/6/10 |
| Storage Pool | N/A |
| Alarm | |
| General Alarm | Motion detect, tampering, local alarm |
| Anomaly Alarm | IPC offline alarm, storage error, HDD full, IP conflict, MAC conflict, login lock, AI module temperature alarm, AI module offline, fan malfunction |
| Intelligent Alarm | Human face detection, human face recognition, video metadata (person/vehicle/non-motorized vehicle), perimeter protection (intrusion, tripwire), plate recognition |
| Alarm Linkage | Record, snapshot (full image), local external alarm output, IPC external alarm output, access & control, audio prompt, buzzer, log, preset, email |
| Peripheral Interface | |
| Audio Input | 1-channel (reserved) |
| Audio Output | 1-channel, speaker output, audio linkage output |
| Alarm Input | 16-channel |
| Alarm Output | 8-channel |
| Internal HDD | 24 slots, SATA3.0/SAS. Max.10T/HDD |
| eSATA | 1 port (reserved) |
| SAS | 2 SAS3.0 ports |
| RS-232 | 1 port, for debug or transparent COM data |
| RS-485 | 1 port, control peripheral PTZ and so on Supports various protocols |
| USB | 4 ports 2 USB2.0 port at the front panel and 2 USB3.0 port at the rear panel |
| HDMI | 3 ports. 4K output |
| VGA | 1 port |
| Network | 4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports |
| Power | 2 ports |
| PoE | N/A |
| General Parameters | |
| Power Supply | 100V AC – 240V AC 50±2%Hz |
| Power Consumption | 144W (Without HDD, idling) |
| Net Weight | 17 kg (37.48 lb) |
| Gross Weight | 18 kg (39.68 lb) |
| Dimensions (W × L × H) | Chassis: 446 mm × 543.4 mm × 175 mm (17.56" × 21.39" × 6.89") Max. size: 482.6 mm (with hanger) × 543.4 mm × 175 mm (with feet mat) (19.00" × 21.39" × 6.89") |
| Packaging Dimensions (W × L × H) | 689 mm × 779 mm × 552 mm (27.13" × 30.67" × 21.73") |
| Operating Conditions | 0°C to +45°C (+32°F to +113°F)/10%RH–90% RH |
| Storage Conditions | 0°C to +40°C (+32°F to +104°F)/30%RH–85% RH |
| Operating Altitude | 5000 m (16404.20 ft) |
| Installation Mode | Desktop/rack |
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN55024, EN55035, EN50130-4, EN60950-1 FCC: Part 15 Subpart A UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07 |
