Keeps the contacts of an idle multipin plug covered.

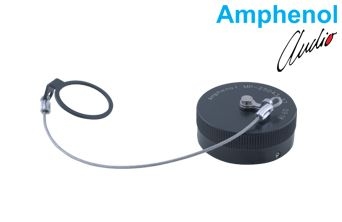

A dust cap that closes the mating face of MP-4101 series multipin plugs. A PVC coated lanyard keeps the cap tied to the plug, and a crimp swage with a PG ring secures the lanyard. The technical drawing gives 205 ±5 mm for the cap and lanyard assembly.
37Multipin Count
MP-4101-37PTo Suit Connector
1.5 mmLanyard Outer Diameter
205 ±5 mmDrawing Dimension
Key features
Compatible plugFits the MP-4101-37P multipin plug within the MP-4101 series.
LanyardA PVC coated lanyard, 1.5 mm in outer diameter, keeps the cap tied to the plug.
Attachment hardwareA crimp swage and a PG ring fasten the lanyard to the plug.
Dust protectionIt closes the contact face while the plug is unused and keeps dust away.
