Stock Code: EP-3-12
| General | |
|---|---|
| Part Number | EP-3-12 |
| Brand | Amphenol |

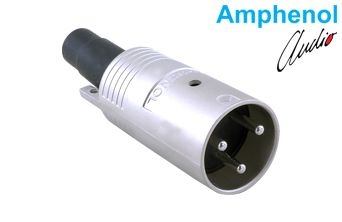

| Description | 3 Pole Male Metal Loudspeaker Cable Connector, Machined Contacts, Nickel Finish |
| Connector Type | Cable Plug (Male) |
| Mechanical Specifications | |
| No. of Positions | 3 |
| Contact Type | Machined |
| Termination | Solder |
| Max. Wire Gauge | 12 AWG |
| Housing Material | Diecast Zinc Alloy |
| Finish | Nickel |
| Overall Length | 86 mm (ref.) |
| Mating Cycle Durability | 1000 |
| Electrical Specifications | |
| Current Carrying Capacity | 20 A |
| Environmental & Compliance | |
| IP Rating | IP40 |
| Operating Temperature | -25°C to +75°C (-13°F to +167°F) |
| Flammability Rating | UL94V-0 |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
| Applications | |
| Typical Applications | Radio and TV broadcasting; professional studios; sound reinforcement and PA; musicians and DJs; special applications |
