Name: Connector Metal Plug Str Cord 3 Skt
Brand: Amphenol
SKU: EP-3-11P

Terminates loudspeaker cable in a 3 pole metal connector

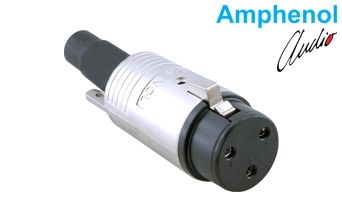

A 3 pole female metal loudspeaker cable connector for broadcast, studio and stage installations. Machined contacts end in solder termination and accept wire up to 12 AWG, while a nickel plated zinc alloy housing encloses the contacts.

3Number of contacts

20 ACurrent carrying capacity

IP40Protection Grade

12 AWGMax. wire gauge

1000Mating cycles

86 mmLength (reference)

Key features

Contact designMachined contacts end in solder termination and accept wire up to 12 AWG.

HousingThe diecast zinc alloy housing carries a nickel finish.

DurabilityIt withstands up to 1000 mating cycles and the housing meets the UL94V-0 flammability rating.

Operating conditionsIt carries an IP40 rating and works from -25°C to +75°C.

ComplianceThe connector complies with EU RoHS 2 Directive 2011/65/EU.

General Information

Part Number

EP-3-11P

Series

Product Description

3 pole female metal loudspeaker cable connector, machined contacts, nickel finish

Applications

Radio and TV broadcasting; professional studios; sound reinforcement and PA systems; musicians and DJs; special applications

Mechanical Specifications

No. of Positions

Contact Type

Machined

Termination

Solder

Max. Wire Gauge

12 AWG

Housing Material

Diecast Zinc Alloy

Finish

Nickel

Mating Cycle Durability

1000

Length (drawing reference)

86 mm / 66.5 mm (REF)

Electrical Specifications

Current Carrying Capacity

20 A

Environmental Specifications

IP Rating

IP40

Operating Temperature

-25°C to +75°C (-13°F to +167°F)

Flammability Rating

UL94V-0

Environmental

Complies with EU RoHS 2 Directive 2011/65/EU
