  10. 4 Core 50/125 Multi Mode Tek Tüplü Çelik Zırhlı Fiber Optik Kablo
  11. 4 Core 50/125 Multi Mode Tek Tüplü Çelik Zırhlı Fiber Optik Kablo
    Oring Networking

    4 Core 50/125 Multi Mode Tek Tüplü Çelik Zırhlı Fiber Optik Kablo

    Stock Code: FO104M

    Options

    4 options
    Core Count44
    Currently viewing: FO104M · 4

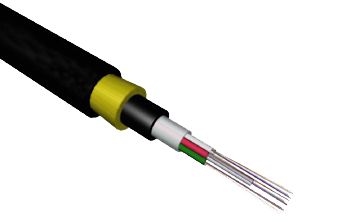

    Steel-armoured Multi Mode cable carrying four fibers in one tube
    This single-tube cable carries 4 fibers of 50/125 µm Multi Mode glass, and its steel armour holds the link together on routes with heavy mechanical load. The armour wraps the cable against crushing and external impact.
    4 CoreFiber Count
    50/125 µmFiber Size
    Multi ModeFiber Type
    Single tubeCable Structure
    Steel armouredCable protection
    Key features
    4Core
    Fibers in a single tube
    It carries four fibers inside one tube and lays four links in a single pull.
    50/125µm
    Multi Mode fiber size
    It uses a 50/125 µm core and cladding size for multimode transmission.
    1.5kN
    Breaking tensile strength
    It withstands a 1.5 kN pulling load in the EN 60794.1.E1 test.
    200N/cm
    Crush resistance
    It meets a 200 N/cm crush load under the EN 60794.1.E3 test.
    15xDmm
    Single bending radius
    It bends down to a 15xD radius in a single bend.
    IN DAILY USE
    Pulls through hard routesThe steel armour wraps the cable against friction inside ducts and conduits.
    Terminates as one bundleIt gathers four fibers in one tube, so the field team terminates them at a single point.
    Lifetime warrantyThe manufacturer covers its fiber products with a lifetime warranty.
    General
    BrandORing Networking
    Product TypeFiber optic cable
    Fiber ModeMulti Mode
    Fiber Size50/125
    Fiber Count4
    Cable ConstructionSingle tube
    ArmourSteel armoured
    WarrantyLifetime warranty
    Cable Mechanical and Environmental Tests
    PropertyUnitValueTest Standard
    Tensile Strength at BreakkN>1.2EN 60794.1.E1
    Breaking Tensile StrengthkN>1.5EN 60794.1.E1
    Crush ResistanceN/cm>200EN 60794.1.E3
    Repeated Bending Radiusmm<20xDEN 60794.1.E6
    Single Bending Radiusmm<15xDEN 60794.1.E6
    Torsion+90°C, 8positiveEN 187 000 M 508
    ImpactkN>1EN 187000 M 504
    TemperatureEN 60794.1.E11
    Outer Sheath
    PropertyUnitValueTest Standard
    Densityg/cm³>20ASTM D 638
    Tensile Strength at BreakN/mm²>400ASTM D 638
    Elongation at Break%2/10ASTM D 1693
    E.S.C.R. (%10 Igepal C-630)>500 hours2/10ASTM D 746
    Breaking Cold<-75°C2.5+0.5ASTM D 1603
    Carbon Black Rate%<0.950ASTM D 792 Method A
    Oxygen Induction Time200°C>25IEC 811.4.2 B
    Tube Gel
    PropertyUnitValueTest Standard
    Density (25°C)g/cm³+0.05DIN 51 757
    Drop Point (24 hours)°CappropriateIEC 811.5.1 B
    Drip Point (24 hours)°C>70REA PE 39
    Flash Point°C>230ISO 2592
    Oil Separation (150°C, 24 hours)%0FTM STD 791 C
    Volatility%<2FTM STD 791 C
    Water Amount%<0.05DIN 51 777
    Acid Value (100°C)% (mg KOH/g)<0.01DIN 53 402
    AbrasionpositiveIEC 811.5.1
    Penetration (25°C / -30°C)1/10 mm>150ISO 2137
    Oxygen Induction Time (180°C)minute>20IEC 811.4.2 B
    100-500 V (100°)Ω x m>10ASTM D 1169
    100-500 V (23°)Ω x mASTM D 1169
    Loose Tube
    PropertyUnitValueTest Standard
    Densityg/cm³1.31+0.03ISO 1183
    Water Absorption (23°C)%<0.45DIN 53 495
    Tensile Strength at BreakN/mm²<30ISO 527
    Elongation at Break%>50ISO 527
    E-ModulusN/mm²>2200ISO 527
    ShoreShore D>78DIN 53 505
    Melting Temperature (DSC)°C>220ISO 3146 C
    Linear Thermal Expansion Coefficient (-23<<+80°C)°K-1 x10-4<1.3
    E-Glass Yarn
    PropertyUnitValueTest Standard
    Densityg/cm³offeredoffered
    Tensile Strength at Break%offeredoffered
    Elongation at BreakN/mm²offeredoffered
    E-Modulus%offeredoffered
    Armouring
    PropertyUnitValueTest Standard
    Steel Thicknessnm0.155±0.015ASTM A 623 M
    Tensile Strength at BreakN/mm²>300ASTM E 6892
    Elongation at Break%>15ASTM E 6892
    Thickness of Coatingnm>0.050±0.01ASTM A 623 M
    DC Resistanceohm/km<40ASTM A 6892
