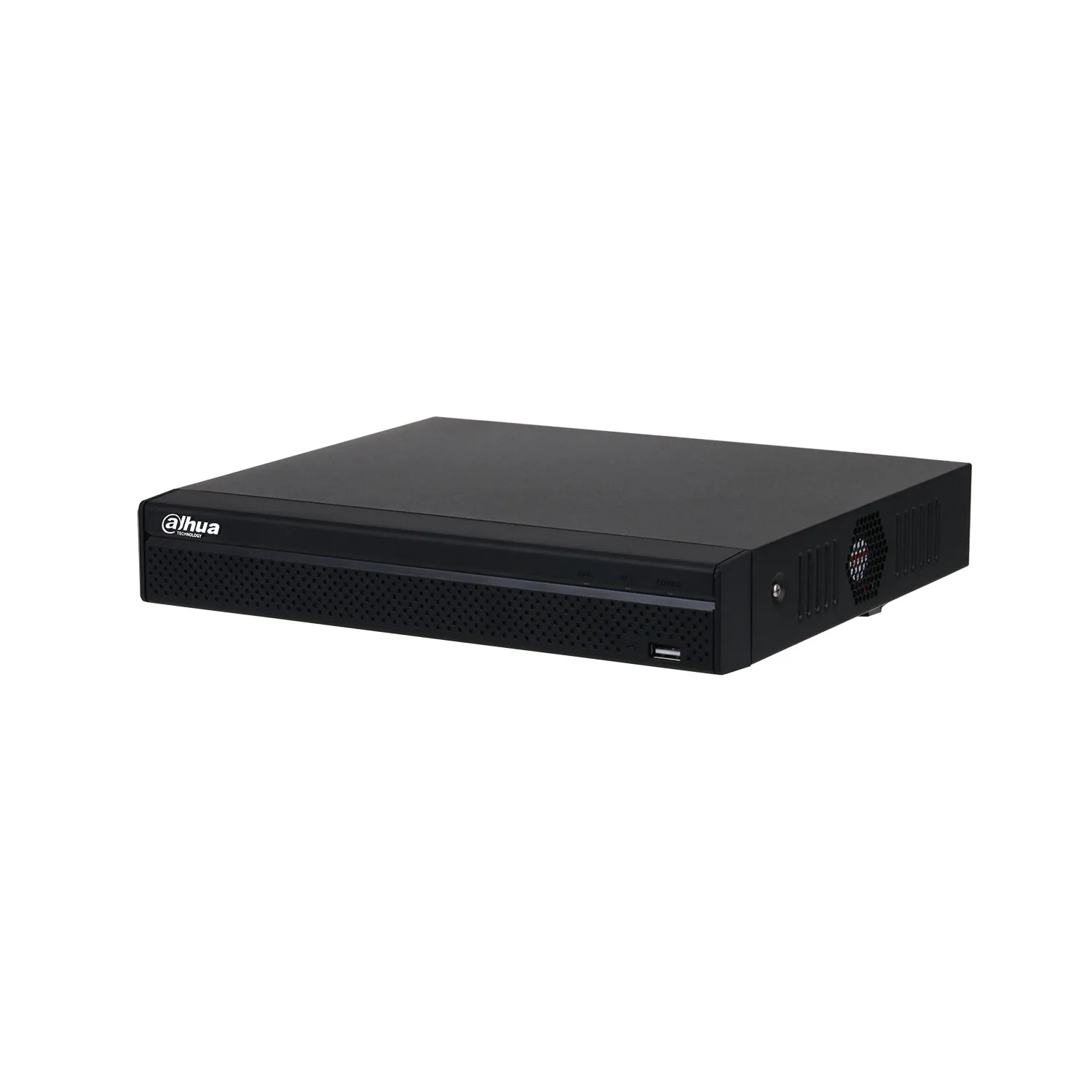

Name: 4 Channel Compact 1U 4PoE Lite H.265 Network Recorder
Brand: Dahua
SKU: NVR2104HS-P-T

Four PoE ports power the cameras and record them

A compact 1U recorder that powers cameras without separate adapters. Its PoE ports carry 36 W in total, and recordings build up on a single disk of up to 8 TB.

4Number of channels

8 TBMax HDD capacity

1 SATADisk bay

Smart H.265+Video compression

1 HDMI · 1 VGAVideo output

10/100 MbpsNetwork port

Key features

4PoE

Powers cameras directly

Four RJ-45 ports carry 36 W to the cameras in total, and a single port delivers up to 25.5 W.

8MP

High-resolution streams

It records camera resolutions from 8 MP down to CIF.

80Mbps

Access and storage bandwidth

It carries 80 Mbps for access and storage and 60 Mbps for forwarding.

8TB

Storage on a single disk

The SATA 2.0 port takes a disk of up to 8 TB and keeps recordings locally.

ONVIF

Third-party camera support

It works with cameras that support the ONVIF and RTSP protocols.

IN DAILY USE

Single-cable installEach camera draws video and power over the same network cable, with no outlet nearby.

Remote managementIt changes settings and upgrades firmware for same-model IP cameras in batches.

Viewing from a phoneThe iDMSS and gDMSS apps reach the live view from iOS and Android phones.

The total PoE budget is 36 W, so the connected cameras must draw less than that in total.

Model
Model	NVR2104HS-P-T
System
Main Processor	Industrial-grade Embedded Processor
Operating System	Embedded Linux
Operation Interface	Web/local GUI operation
Video
Access Channel	4 Channels
Network Bandwidth	80 Mbps for access, 80 Mbps for storage, and 60 Mbps for forwarding
Resolution	8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
Decoding Capability	1–ch@8MP(30FPS) or 1–ch@5MP(30FPS) or 2–ch@4MP(30FPS) or 2–ch@3MP(30FPS) or 4–ch@1080P(30FPS)
Video Output	1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P
Multi-screen Display	1/4
Third-party Camera Access	ONVIF, RTSP
Compression
Video	Smart 265+/H.265/Smart H.264+/H.264
Audio	PCM/G711A/G711U/G726/AAC
Network
Network Protocol	HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P
Smart Phone Access	iDMSS (iOS), gDMSS (Android)
Access Standard	ONVIF (Profile T / Profile S / Profile G), CGI, SDK
Browser	Chrome, IE9 or above, Firefox
Alarm
General Alarm	Motion Detection, Privacy Masking, video loss, PIR alarm, IPC alarm
Anomaly Alarm	Front-end device going offline, Storage Error, Storage Full, IP conflict, MAC conflict, log lock, network security anomaly
Alarm Linkage	Video record, snapshot, recording, preset, tour
External Port
HDD	1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with ambient temperature
USB	1 front USB 2.0 port, 1 rear USB 2.0 port
HDMI	1
VGA	1
RCA Input	1
RCA Output	1
Alarm	None
Network	1 RJ–45 port (10/100 Mbps), 4 RJ–45 ports with PoE (10/100 Mbps)
General Parameters
Power Supply	DC48V/53V, 1.25A/1.22A
Power Consumption	Total NVR output ≤ 10W (without HDD); total PoE output power 36W; single port power 25.5W
Net Weight	0.84 kg (1.85 lb)
Gross Weight	1.86 kg (4.10 lb)
Product Dimensions	260 mm × 225 mm × 47.6 mm (W × L × H)
Box Dimensions	87 mm × 331 mm × 312 mm (W × L × H)
Operating Temperature	-10°C ~ 45°C (+34°F ~ +113°F)
Storage Temperature	0°C ~ 40°C (+32°F ~ +104°F)
Operating Humidity	10% ~ 93%
Storage Humidity	30% ~ 85%
Operating Altitude	3000 m (9843 ft)
Installation	Desktop installation
Certification	CE/FCC

Model

NVR2104HS-P-T

System

Main Processor

Industrial-grade Embedded Processor

Operating System

Embedded Linux

Operation Interface

Web/local GUI operation

Video

Access Channel

4 Channels

Network Bandwidth

80 Mbps for access, 80 Mbps for storage, and 60 Mbps for forwarding

Resolution

8MP/5MP/4MP/3MP/1080P/720P/D1/CIF

Decoding Capability

1–ch@8MP(30FPS) or 1–ch@5MP(30FPS) or 2–ch@4MP(30FPS) or 2–ch@3MP(30FPS) or 4–ch@1080P(30FPS)

Video Output

1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P

Multi-screen Display

1/4

Third-party Camera Access

ONVIF, RTSP

Compression

Video

Smart 265+/H.265/Smart H.264+/H.264

Audio

PCM/G711A/G711U/G726/AAC

Network

Network Protocol

HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P

Smart Phone Access

iDMSS (iOS), gDMSS (Android)

Access Standard

ONVIF (Profile T / Profile S / Profile G), CGI, SDK

Browser

Chrome, IE9 or above, Firefox

Alarm

General Alarm

Motion Detection, Privacy Masking, video loss, PIR alarm, IPC alarm

Anomaly Alarm

Front-end device going offline, Storage Error, Storage Full, IP conflict, MAC conflict, log lock, network security anomaly

Alarm Linkage

Video record, snapshot, recording, preset, tour

External Port

HDD

1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with ambient temperature

USB

1 front USB 2.0 port, 1 rear USB 2.0 port

HDMI

VGA

RCA Input

RCA Output

Alarm

None

Network

1 RJ–45 port (10/100 Mbps), 4 RJ–45 ports with PoE (10/100 Mbps)

General Parameters

Power Supply

DC48V/53V, 1.25A/1.22A

Power Consumption

Total NVR output ≤ 10W (without HDD); total PoE output power 36W; single port power 25.5W

Net Weight

0.84 kg (1.85 lb)

Gross Weight

1.86 kg (4.10 lb)

Product Dimensions

260 mm × 225 mm × 47.6 mm (W × L × H)

Box Dimensions

87 mm × 331 mm × 312 mm (W × L × H)

Operating Temperature

-10°C ~ 45°C (+34°F ~ +113°F)

Storage Temperature

0°C ~ 40°C (+32°F ~ +104°F)

Operating Humidity

10% ~ 93%

Storage Humidity

30% ~ 85%

Operating Altitude

3000 m (9843 ft)

Installation

Desktop installation

Certification

CE/FCC
