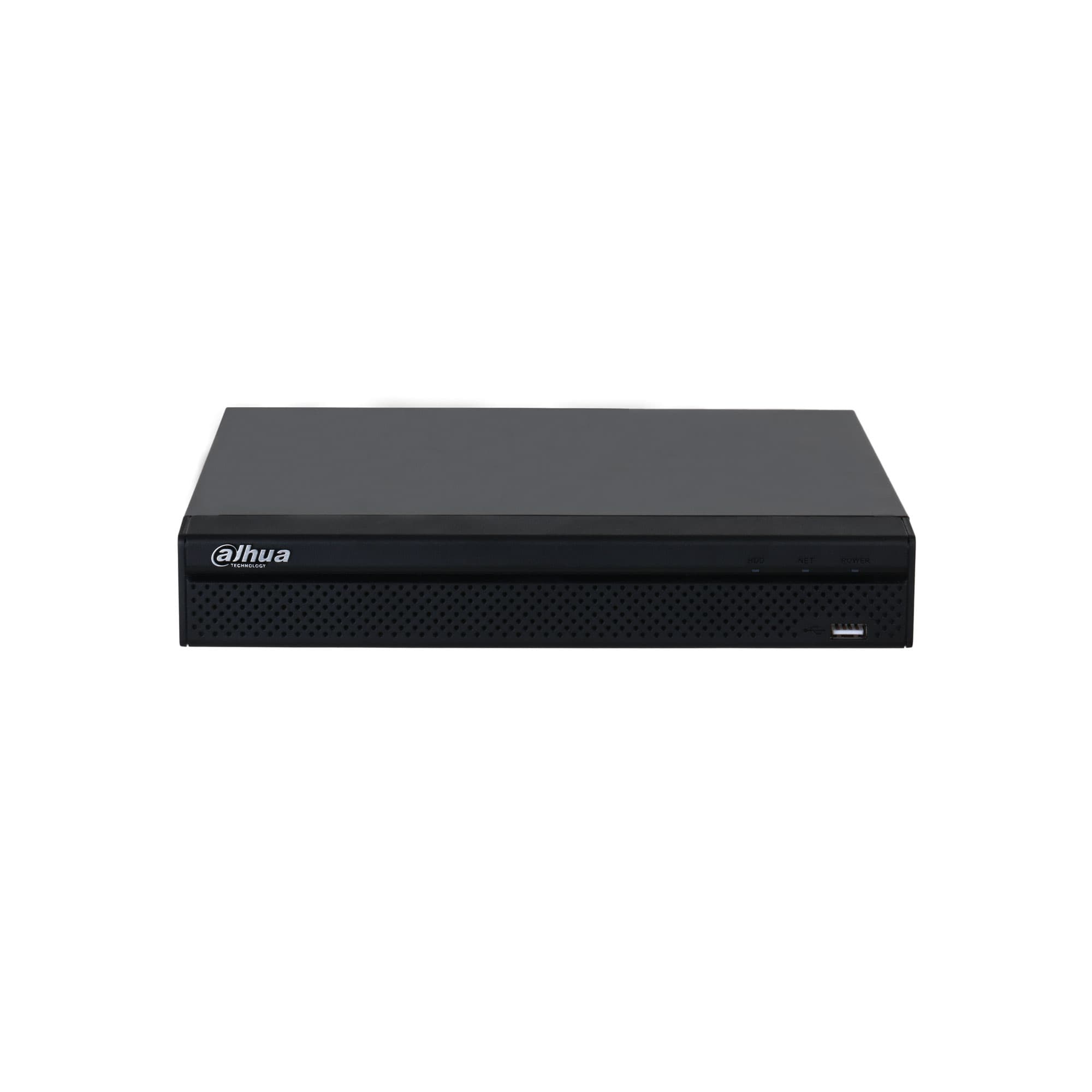

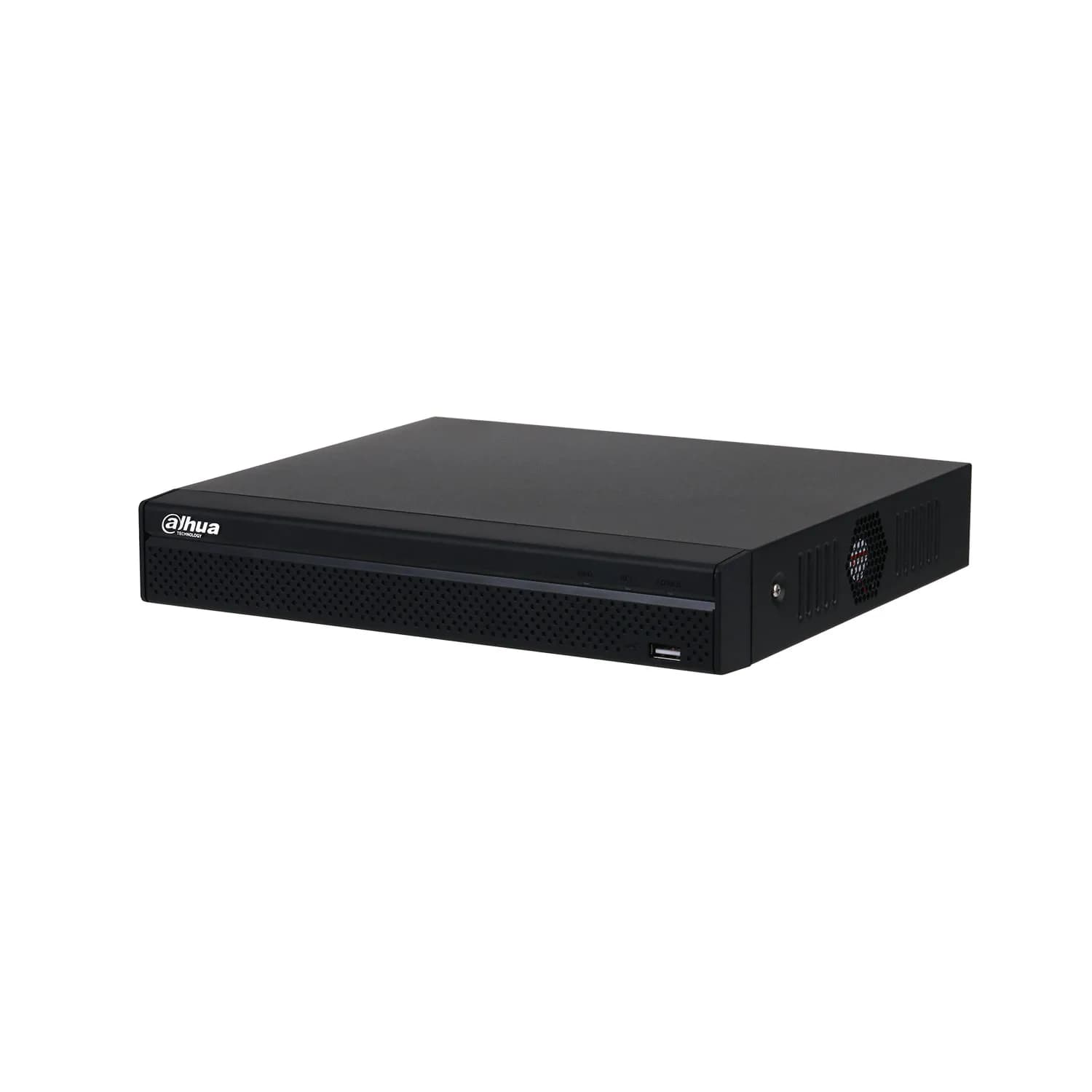

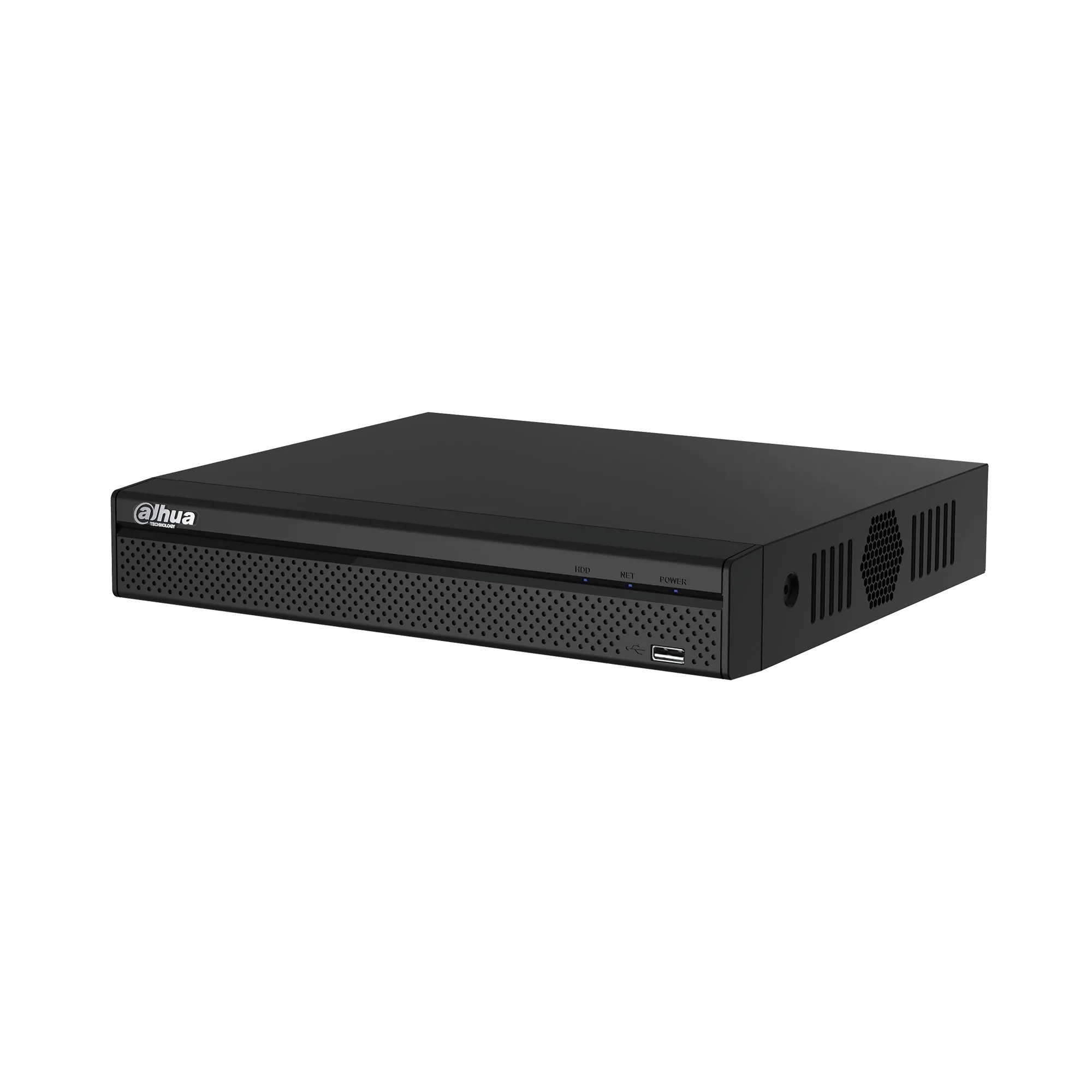

Stock Code: NVR4104HS-4KS2/L
| System | |
|---|---|
| Main Processor | Industrial-grade embedded processor |
| OS | Embedded Linux |
| Operation Interface | Web/operating in local GUI |
| Perimeter Protection by Camera | |
| Performance | 4 channels |
| AI Search | Search for pictures by channel, time and event type |
| Face Detection by Camera | |
| Performance | 4 channels |
| Face Attributes | 6 attributes: Gender, age, glasses, expression, mouth mask, and beard |
| AI Search | Search for pictures by channel, time and face attributes |
| SMD Plus by Camera | |
| Performance | 4 channels |
| AI Search | Search by target classification (human, vehicle) |
| Video | |
| Access Channel | 4 |
| Network Bandwidth | Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps |
| Resolution | 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 |
| Decoding Capability | 8 × 1080p@30 fps |
| Video Output | 1 × VGA output, 1 × HDMI output; supports simultaneous video output for VGA and HDMI |
| Multi-screen Display | 1, 4 views |
| Third-party Camera Access | ONVIF; RTSP |
| Compression | |
| Video | Smart H.265/H.265/Smart H.264/H.264/MJPEG |
| Audio | PCM/G711A/G711U/G726/AAC |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP camera, DVR, NVS, etc.); P2P; auto register |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF (profile T/S/G); CGI; SDK |
| Browser | Chrome; IE9 or later; Firefox |
| Record and Playback | |
| Multi-channel Playback | Up to 4 channels |
| Record Mode | Manual record; alarm recording; SMD recording; smart recording |
| Storage | Local HDD; network |
| Backup | USB storage device |
| Playback Function | 1. Play/pause/stop/slow/quick/backward/by frame 2. Full screen, backup (video clip/file), partial zoom in, and audio on/off |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm |
| Anomaly Alarm | Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception |
| Intelligent Alarm | Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms |
| Alarm Linkage | Recording, snapshot, audio, buzzer, log, preset, and email |
| External Port | |
| Audio Input | 1 × RCA input |
| Audio Output | 1 × RCA output |
| HDD | 1 SATA III port, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| USB | 2 (1 × front USB2.0; 1 × back USB2.0) |
| HDMI | 1 (supports up to 4K resolution output) |
| VGA | 1 |
| Network | 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| General Parameters | |
| Power Supply | 12 VDC, 2A |
| Power Consumption | < 10 W (HDD not included, idling) |
| Net Weight | 0.81 kg (1.79 lb) |
| Gross Weight | 1.41 kg (3.11 lb) |
| Product Dimensions | 260 mm × 232.5 mm × 50.3 mm (10.24" × 9.15" × 1.98") (W × L × H) |
| Package Dimensions | 89 mm × 333 mm × 315 mm (3.50" × 13.11" × 12.40") (W × L × H) |
| Operating Conditions | –10 °C to +55 °C (+10 °F to +131 °F) |
| Storage Conditions | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 10% ~ 93% |
| Storage Humidity | 30% ~ 85% |
| Operating Altitude | 3000 m (9842.52 ft) |
| Installation | Desktop mounted |
| Certifications | CE: EN62368-1; EN55032, EN55024, EN55035, EN61000-3-2, EN61000-3-3, EN50130-4 FCC: Part 15 Subpart B |
