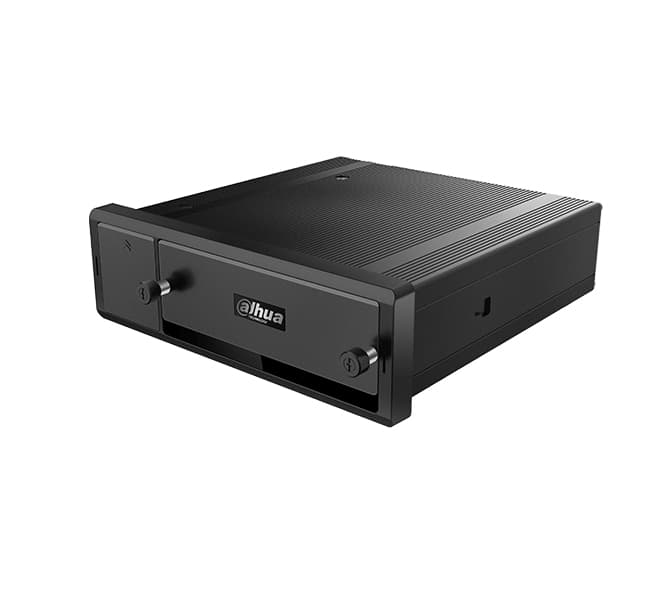

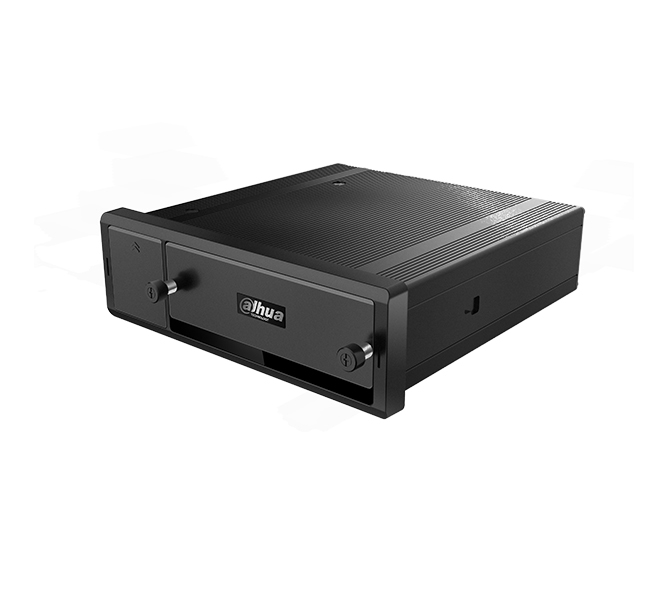

Stock Code: MNVR8104-I
| System | |
|---|---|
| Main Processor | Embedded microprocessor |
| Operating System | Embedded LINUX |
| Audio | |
| Audio Compression | G711A, G711U, G726, PCM |
| Audio Output | 2 channels |
| Audio Sampling | 8 KHz, 16 Bit |
| Image | |
| Image Compression | H.265+/H.265/H.264+/H.264 |
| Resolution | 1080p (1920×1080) for all channels |
| Video | |
| Video Input | 4 channels of POE RJ-45 ports; 2 channels of HDCVI analog video signal input (DSM/ADAS) |
| Video Output | VGA, M16 aviation connector, HDMI |
| Video Frame Rate | PAL: 1 fps–25 fps; NTSC: 1 fps–30 fps |
| Multi-screen Display | 1 window, 4 windows, 6 windows |
| Tour | Timed auto control, dynamic surveillance and alarm |
| OSD | Channel, time, license plate, GPS |
| Color | Set tone, brightness, contrast, saturation and gains for each channel's video image |
| Alarm | |
| Alarm Input | 9 channels; Alarm1–8 are local alarm input, Alarm 9 is pulse input |
| Alarm Output | 2 channels; 1 relay out, 1 controllable 12 V 0.75 A out |
| Linkage | Snapshot, tour, recording, buzzing and email |
| Hard Disk | |
| Quantity & Storage Space | 1 SD card with max storage capacity of 512G, 1 internal HDD |
| Work Management | Non-working hard disks fall asleep, to help reduce power consumption and dissipate heat |
| Function | |
| Recording Priority | Manual recording > alarm recording > motion detection recording > timed recording |
| Recording Resolution | 1080P for all channels |
| Recording Lasting Time | 1 min–60 min (default: 60 min), pre-record: 1 sec–30 sec, post-record: 10 sec–300 sec |
| HDD Full | Stop record; overwrite |
| Recording Searching | Time/Date, Alarm, MD and Exact Search (accurate to second) |
| Recording Playback Speed | Slow/fast playback, playing video backwards, manual single frame playback |
| Recording Playback Switching | When playing a recording, with one click, switch to recording in another channel at the same play time |
| Playback | 1 channel |
| Digital Zoom | When playing recording in full screen, select a region on the screen to enlarge it |
| Motion Detection | 396 motion detection regions for each channel; different sensitivity levels selectable for a region |
| Video Loss | Yes |
| Vehicle Event Detection | Rolling over and hitting detection |
| Storage Capacity Extension | Extends storage capacity by USB flash drive or mobile hard disk |
| User Management | Management of users of different roles |
| User Password Security | Yes |
| Program Upgrade | Upgrade by web, MHVR client or other tools; by USB flash drive |
| Port | |
| SD Card | 1, with max 512G storage capacity |
| USB Port | 2 × USB 3.0, 1 × USB 2.0 |
| Network Port | 1 × RJ45 10M/100M self-adaptive Ethernet port |
| SATA | 1 |
| RS–485 | 1 |
| RS–232 | 2 |
| CAN | 1 |
| VGA | 1 |
| HDMI | 1 |
| Wi-Fi | Optional |
| 3G/4G | Optional |
| GPS | Optional |
| AI | |
| Face Comparison | Max 30,000 face images, 20 face databases |
| Driver Status Monitoring | DSM: Smoking, calling, yawning, looking around unfocused, being absent; ADAS: Warning of cars hit; detection of lane departure |
| Vehicle Recognition | Recognition of license plate, vehicle brand |
| Performance | Support max 2 intelligent rules for channels at the same time |
| Others | |
| Power Supply | 6 V DC–36 V DC |
| Power Consumption | ≤12 W (only for MHVR and without any peripheral) |
| Operating Temperature | -30°C to +70°C; 10%–90% |
| Dimension | 180 mm × 190 mm × 50 mm (7.0" × 8.7" × 2.0") |
| Gross Weight (Package Box Contained) | 2.1 kg |
| Certifications | |
| CE | Yes |
| FCC | Yes |
| EN50155 | Yes |
| ISO7637-2 | Yes |
| ISO16750 | Yes |
