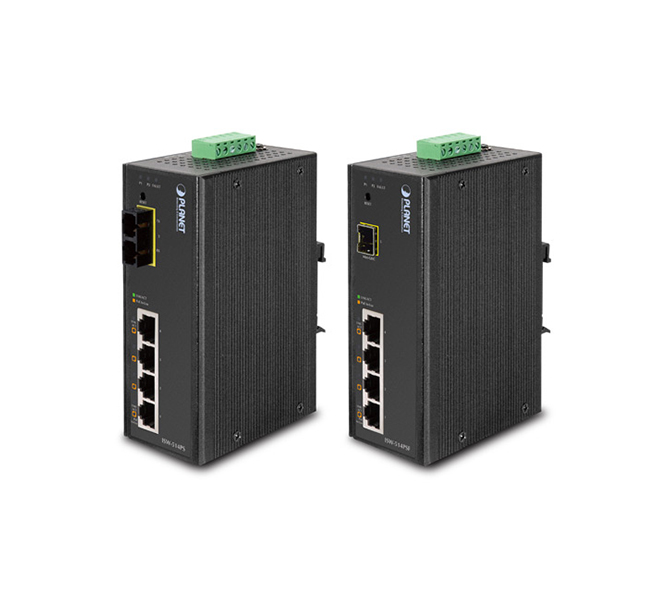

Stock Code: ISW-514PS / ISW-514PS15 / ISW-514PSF
| Hardware Specifications | |
|---|---|
| 10/100Base-TX Ports | 4 |
| 100Base-FX Port | 1 |
| Fiber Port Type | ISW-514PS: Multi-Mode ISW-514PS15: Single Mode ISW-514PSF: Vary on SFP |
| Connector Type | ISW-514PS: SC ISW-514PS15: SC ISW-514PSF: SFP |
| Maximum Distance | ISW-514PS: 2km ISW-514PS15: 15km ISW-514PSF: Vary on SFP |
| Optical Wavelength | ISW-514PS: 1300nm ISW-514PS15: 1310nm ISW-514PSF: Vary on SFP |
| Launch Power (dBm) | ISW-514PS: Max.: -14 Min.: -20 ISW-514PS15: Max.: 0 Min.: -20 ISW-514PSF: Vary on SFP |
| Receive Sensitivity (dBm) | ISW-514PS: -32 ISW-514PS15: -32 ISW-514PSF: Vary on SFP |
| IEEE 802.3af PoE Ports | 4 |
| Dimensions (D x W x H) | 135 x 87.8 x 56 mm |
| Weight | 871g |
| Power LED | Power1, Power2 and Fault Port 1~4: PoE in-use, LNK/ACT Port 5: LNK/ACT |
| Power Requirements | 24 or 48V DC, redundant power with polarity reverse protection function |
| Enclosure | IP30 aluminum metal case |
| Protection | ESD (Ethernet): 6KV DC Surge (Power): 6KV DC |
| Installation | DIN rail kit and wall mount ear |
| Alarm | One relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
| Power over Ethernet | |
|---|---|
| PoE Standard | IEEE 802.3af Power over Ethernet / PSE |
| PoE Power Supply Type | End-Span |
| PoE Power Output | Per Port 48V DC, 350mA, max. 15.4 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| Switch Specifications | |
|---|---|
| Switch Processing Scheme | Store-and-Forward |
| Switch Fabric | 1Gbps |
| Throughput (packet per second) | 0.74Mpps@64bytes |
| Address Table | 1K entries |
| Maximum Frame Size | 1536 Bytes |
| Pack Buffer | 512k bits |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Network cables | • 10/100Base-TX: • 4-Pair UTP Cat. 3, 4, 5, 5e, 6 (100 meters, max.) • EIA/TIA-568 100-ohm STP (100 meters, max.) • 100Base-FX: • Multi-Mode optic fiber 62.5/125µm or 50/125µm • Single-Mode optic fiber 9/125µm |
| Layer 2 Function | |
|---|---|
| Management | Web management, SNMP Trap |
| VLAN | • Port-based VLAN • IEEE 802.1Q Tag-based VLAN, Up to 16 VLAN groups |
| QoS | 2 priority queues for three type of Class of Service • Port-based • IEEE 802.1p priority tag • TCP/IP header's DSCP classifier Weighted Round Robin queue scheduling |
| Bandwidth Control | Inbound Rate Limit and Outbound Traffic shaping |
| Storm Control | Disable, 12.5%, 25%, 50%, 62.5% 4 levels |
| Security | Supports 5 IP addresses that have permission to access the Switch |
| Standards Conformance | |
|---|---|
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
| Standard Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging |
| Environment | |
|---|---|
| Temperature | Operating: -10~60 °C Storage: -40~85 °C |
| Humidity | Operating: 5~90% Storage: 5~90% (non-condensing) |
