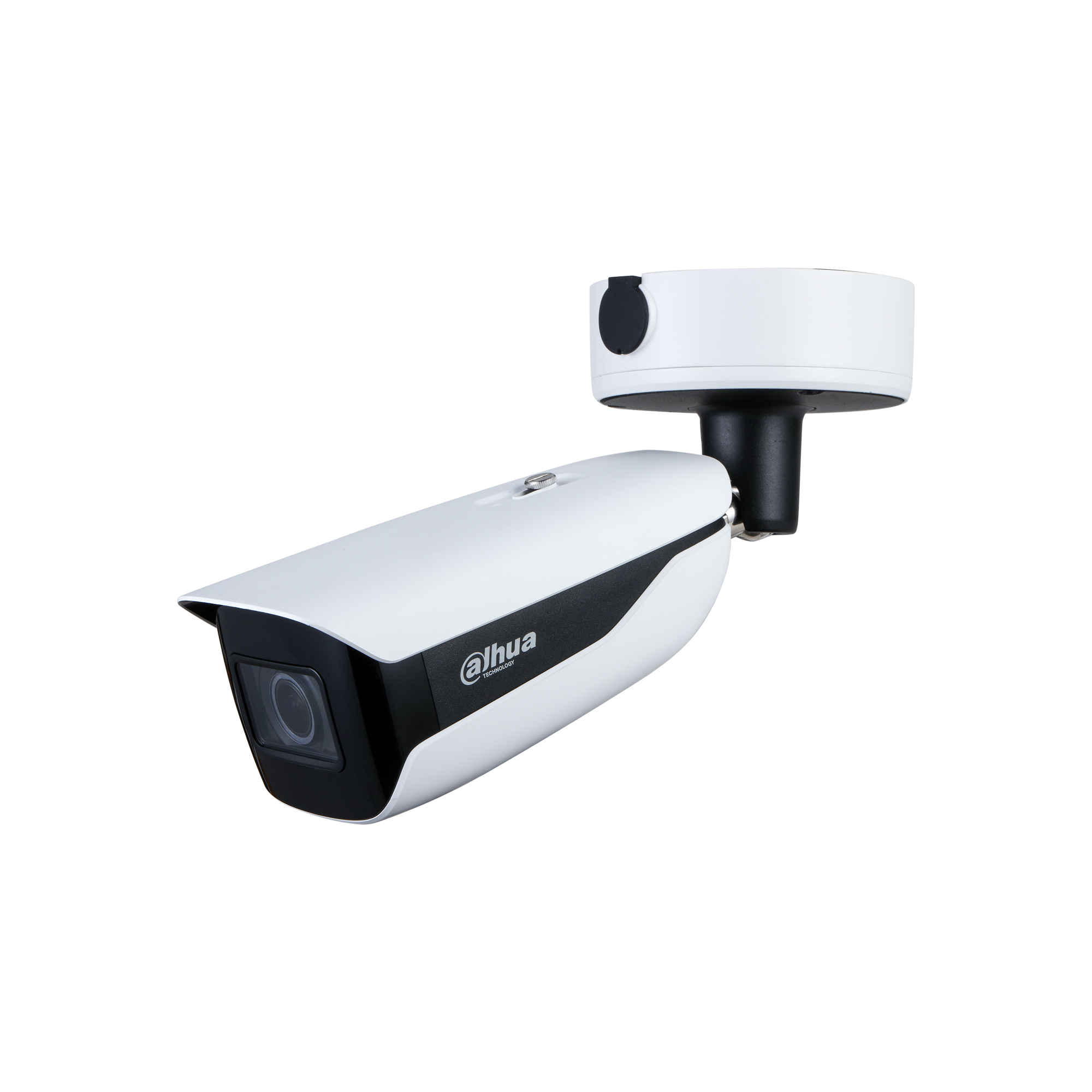

An outdoor bullet camera with a motorized lens that sees up to 60 m in the dark.

The 1/1.8" CMOS sensor delivers 4 MP video at 2688 × 1520, and the motorized lens sets focal length between 2.7 mm and 12 mm. The IP67 and IK10 rated housing suits open sites such as perimeter walls and storage yards. Perimeter protection rules tell people from vehicles.

2688 × 1520Max. Resolution

1/1.8" CMOSSensor

2.7 – 12 mmFocal Length

60 mIR LED Distance

IP67 · IK10Protection Grade

256 GBSD Card

Key features

4MP

Resolution that keeps detail

Streams 2688 × 1520 video at 30 fps.

60m

Night vision

The built-in IR LED lights the dark up to 60 m.

140dB

Wide dynamic range

Holds detail at dusk and against backlight.

256GB

Recording on the camera

Takes a Micro SD card and keeps recording when the network drops.

3streams

Separate feeds for separate targets

Publishes main, sub and third streams at separate resolutions.

IN DAILY USE

Junction box mountSits on a junction box and leaves no cable exposed.

Alarm loopThree alarm inputs and two alarm outputs bring a detector and siren into the system.

Simple powerDraws power from a PoE switch or a 12 V DC adapter.

Camera

Image Sensor

1/1.8" 4 Megapixel progressive CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s – 1/100,000 s

Min. Illumination

0.003 Lux @F1.8

S/N Ratio

56 dB

Illumination Distance

60 m (196.9 ft) (IR LED)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Mount Type

Focal Length

2.7 mm – 12 mm

Max. Aperture

F1.8

Field of View

Horizontal: 107°–44°
Vertical: 69°–29°
Diagonal: 134°–53°

Iris Type

Auto

Close Focus Distance

W/T: 1.2 m (3.9 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
W	57.0 m (187.0 ft)	23.0 m (75.5 ft)	11.0 m (36.1 ft)	5.7 m (18.7 ft)
T	130.7 m (428.8 ft)	52.0 m (170.6 ft)	26.0 m (85.3 ft)	13.0 m (42.7 ft)

Professional, Intelligent

IVS (Perimeter Protection)

Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection

Face Detection

Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract (6 attributes and 8 expressions: gender, age, glasses, expression, mask, beard)

People Counting

Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/weekly/daily reports

IVS

Abandoned object; missing object

Heat Map

Yes

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520 (1 fps–25/30 fps)
1920 × 1080 (1 fps–50/60 fps)
Sub stream: D1 (1 fps–50/60 fps)
Third stream: 1080p (1 fps–25/30 fps)

Stream Capability

3 streams

Resolution

2688 × 1520; 2560 × 1440; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576 / 704 × 480); VGA (640 × 480); CIF (352 × 288 / 352 × 240)

Bit Rate Control

CBR / VBR

Video Bit Rate

H.264: 32 kbps – 8192 kbps
H.265: 19 kbps – 8192 kbps

Day/Night

Auto (ICR) / Color / B/W

BLC

Yes

HLC

Yes

WDR

140 dB

White Balance

Auto / natural / street lamp / outdoor / manual / regional custom

Gain Control

Auto / Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Rotation

0°/90°/180°/270°

Mirror

Yes

Privacy Masking

Yes (8 areas)

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD Card (support max. 256 G); NAS

Browser

IE: IE8 and later; Chrome; Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

CE-LVD: EN62368-1, EN60950-22 (optional)
CE-EMC: 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07, UL 50E NEMA Type 4X (optional)

Port

Audio Input

1 channel (3.5 mm JACK port)

Audio Output

1 channel (3.5 mm JACK port)

Alarm Input

3 channels in: 5 mA 3 V–5 V DC

Alarm Output

2 channels out: 300 mA 12 V DC

Power

Power Supply

12 V DC (±30%) / PoE (802.3af) / ePoE

Power Consumption

Basic: 2.5 W (12 V DC); 3.3 W (PoE)
Max. (max. stream + intelligent function + IR LED + focus): 9.7 W (12 V DC); 11.6 W (PoE)

Environment

Operating Conditions

-30°C to +60°C (-22°F to +140°F) / Less than 95% RH

Storage Conditions

-40°C to +60°C (-40°F to +140°F)

Protection Grade

IP67; IK10; Anti-Corrosion Protection: NEMA 4X (optional)

Structure

Casing

Metal + Plastic

Dimensions

340.1 mm × 108.5 mm × 92.9 mm (13.4" × 4.3" × 3.7") (L × W × H)

Net Weight

1.47 kg (3.2 lb)

Gross Weight

2.34 kg (5.2 lb)
