Lights up a dark area to 30 m and keeps recording outdoors around the clock.

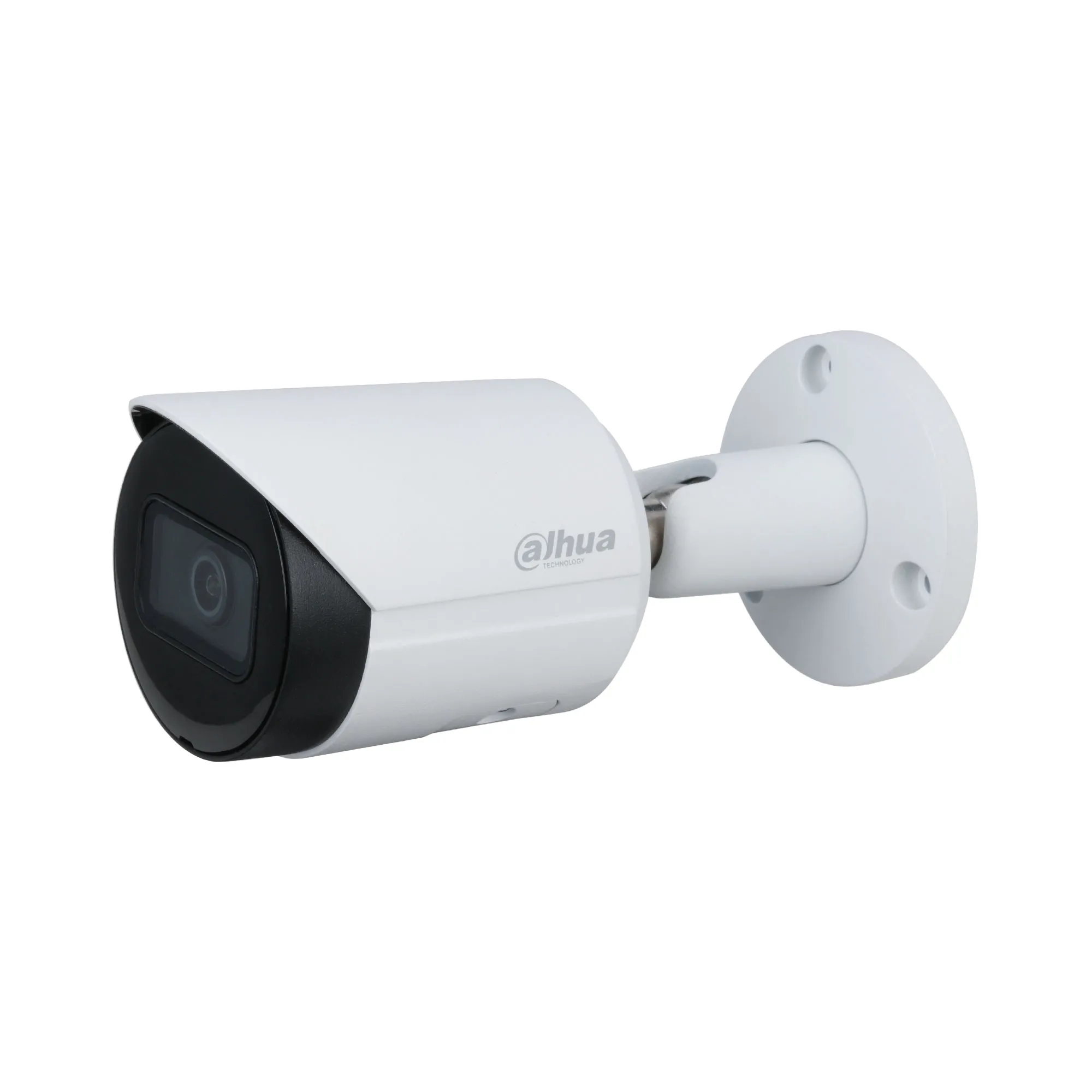

A fixed-focal bullet network camera for outdoor surveillance. It delivers 2688 × 1520 video; when light drops, the built-in IR LED switches on and illuminates the scene up to 30 m.

2688 × 1520Max. resolution

1/3" CMOSSensor

2.8 mm · 3.6 mmFocal length

30 mIR illumination

IP67Protection Grade

12 V DC · PoEPower supply

Key features

2688× 1520

4 MP imaging

Main stream runs at 20 fps and reaches 25/30 fps at 2560 × 1440.

30m

IR illumination

A single IR LED lights the scene once ambient light is gone.

120dB

Wide dynamic range

Balances bright and dark areas within the same frame.

0.008lx

Low light threshold

Delivers an image down to this light level at F2.0.

256GB

Local recording

Takes a Micro SD card and also pushes recordings to FTP, SFTP and NAS.

IN DAILY USE

Smart detectionSet tripwire and intrusion rules; the camera triggers an alarm on a violation.

Fault noticeReports SD card errors, network disconnection and IP conflicts.

Single cable powerThe PoE link carries both data and power, so no separate adapter is needed.

Camera Features

Image Sensor

1/3" 4Megapixel Progressive CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

S/N Ratio

56 dB

Min. Illumination

0.008 Lux@F2.0

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (IR LED)

Horizontal/Vertical/Rotation Range

Horizontal: 0°–360°
Vertical: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm–12 mm

Max. Aperture

2.8 mm: F2.0
3.6 mm: F2.0

Field of View

2.8 mm:
Horizontal 102.0° × Vertical 55.0° × Diagonal 121.0°
3.6 mm:
Horizontal 84.0° × Vertical 45.0° × Diagonal 100.0°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (3.61 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	56 m (183.73 ft)	22.4 m (73.49 ft)	11.2 m (36.75 ft)	5.6 m (18.37 ft)
3.6 mm	80 m (262.47 ft)	32.0 m (104.99 ft)	16.0 m (52.49 ft)	8.0 m (26.25 ft)

Video Features

Video Compression

H.265; H.264; H.264B; MJPEG (only supported by sub stream)

Smart Coding

Smart H.265+/Smart H.264+

Video Frame Rate

Main Stream:
2688 × 1520 (1 fps-20 fps)
2560 × 1440 (1 fps-25/30 fps)
Sub Stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)

Stream Capability

2 Streams

Resolution

2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

Off/On (4 area, rectangle)

Region of Interest (ROI)

Yes (4 area)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (supports 2688 × 1520 resolution and below with 90°/270°)

Mirroring

Yes

Privacy Masking

4 area

Alarm

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception

Network Features

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; manufacturer software encryption; configuration encryption; Digest; WSSE; account lock; security logs; IP/MAC filtering; X.509 certificate creation and import; system log; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Compliance

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User

Storage

FTP; SFTP; Micro SD Card (max support 256 GB); NAS

Browser

IE; Chrome; Firefox

Management Software

Smart PSS; DSS; DMSS

Smartphone

iOS; Android

Certificate

Certificates

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12 V DC/PoE (802.3af)

Power Consumption

< 5 W

Environmental Features

Operating Conditions

-40°C to +60°C (-40°F to +140°F) / ≤ 95% relative humidity

Storage Temperature

-40°C to +60°C (-40°F to +140°F)

Protection

IP67

Structure

Casing

Metal

Dimensions

166.2 mm × Φ70 mm (6.54" × Φ2.76")

Net Weight

0.48 kg (1.1 lb)

Gross Weight

0.57 kg (1.3 lb)

Lights up a dark area to 30 m and keeps recording outdoors around the clock.

A fixed-focal bullet network camera for outdoor surveillance. It delivers 2688 × 1520 video; when light drops, the built-in IR LED switches on and illuminates the scene up to 30 m.

2688 × 1520Max. resolution

1/3" CMOSSensor

2.8 mm · 3.6 mmFocal length

30 mIR illumination

IP67Protection Grade

12 V DC · PoEPower supply

Key features

2688× 1520

4 MP imaging

Main stream runs at 20 fps and reaches 25/30 fps at 2560 × 1440.

30m

IR illumination

A single IR LED lights the scene once ambient light is gone.

120dB

Wide dynamic range

Balances bright and dark areas within the same frame.

0.008lx

Low light threshold

Delivers an image down to this light level at F2.0.

256GB

Local recording

Takes a Micro SD card and also pushes recordings to FTP, SFTP and NAS.

IN DAILY USE

Smart detectionSet tripwire and intrusion rules; the camera triggers an alarm on a violation.

Fault noticeReports SD card errors, network disconnection and IP conflicts.

Single cable powerThe PoE link carries both data and power, so no separate adapter is needed.

Camera Features

Image Sensor

1/3" 4Megapixel Progressive CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

S/N Ratio

56 dB

Min. Illumination

0.008 Lux@F2.0

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (IR LED)

Horizontal/Vertical/Rotation Range

Horizontal: 0°–360°
Vertical: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm–12 mm

Max. Aperture

2.8 mm: F2.0
3.6 mm: F2.0

Field of View

2.8 mm:
Horizontal 102.0° × Vertical 55.0° × Diagonal 121.0°
3.6 mm:
Horizontal 84.0° × Vertical 45.0° × Diagonal 100.0°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (3.61 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	56 m (183.73 ft)	22.4 m (73.49 ft)	11.2 m (36.75 ft)	5.6 m (18.37 ft)
3.6 mm	80 m (262.47 ft)	32.0 m (104.99 ft)	16.0 m (52.49 ft)	8.0 m (26.25 ft)

Video Features

Video Compression

H.265; H.264; H.264B; MJPEG (only supported by sub stream)

Smart Coding

Smart H.265+/Smart H.264+

Video Frame Rate

Main Stream:
2688 × 1520 (1 fps-20 fps)
2560 × 1440 (1 fps-25/30 fps)
Sub Stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)

Stream Capability

2 Streams

Resolution

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

Off/On (4 area, rectangle)

Region of Interest (ROI)

Yes (4 area)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (supports 2688 × 1520 resolution and below with 90°/270°)

Mirroring

Yes

Privacy Masking

4 area

Alarm

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception

Network Features

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Compliance

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User

Storage

FTP; SFTP; Micro SD Card (max support 256 GB); NAS

Browser

IE; Chrome; Firefox

Management Software

Smart PSS; DSS; DMSS

Smartphone

iOS; Android

Certificate

Certificates

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12 V DC/PoE (802.3af)

Power Consumption

< 5 W

Environmental Features

Operating Conditions

-40°C to +60°C (-40°F to +140°F) / ≤ 95% relative humidity

Storage Temperature

-40°C to +60°C (-40°F to +140°F)

Protection

IP67

Structure

Casing

Metal

Dimensions

166.2 mm × Φ70 mm (6.54" × Φ2.76")

Net Weight

0.48 kg (1.1 lb)

Gross Weight

0.57 kg (1.3 lb)

4MP Lite IR Fixed-focal Bullet Network Camera

Datasheet

IPC-HFW1431S-S-S2

Sertifika

CE Belgesi

Similar Products

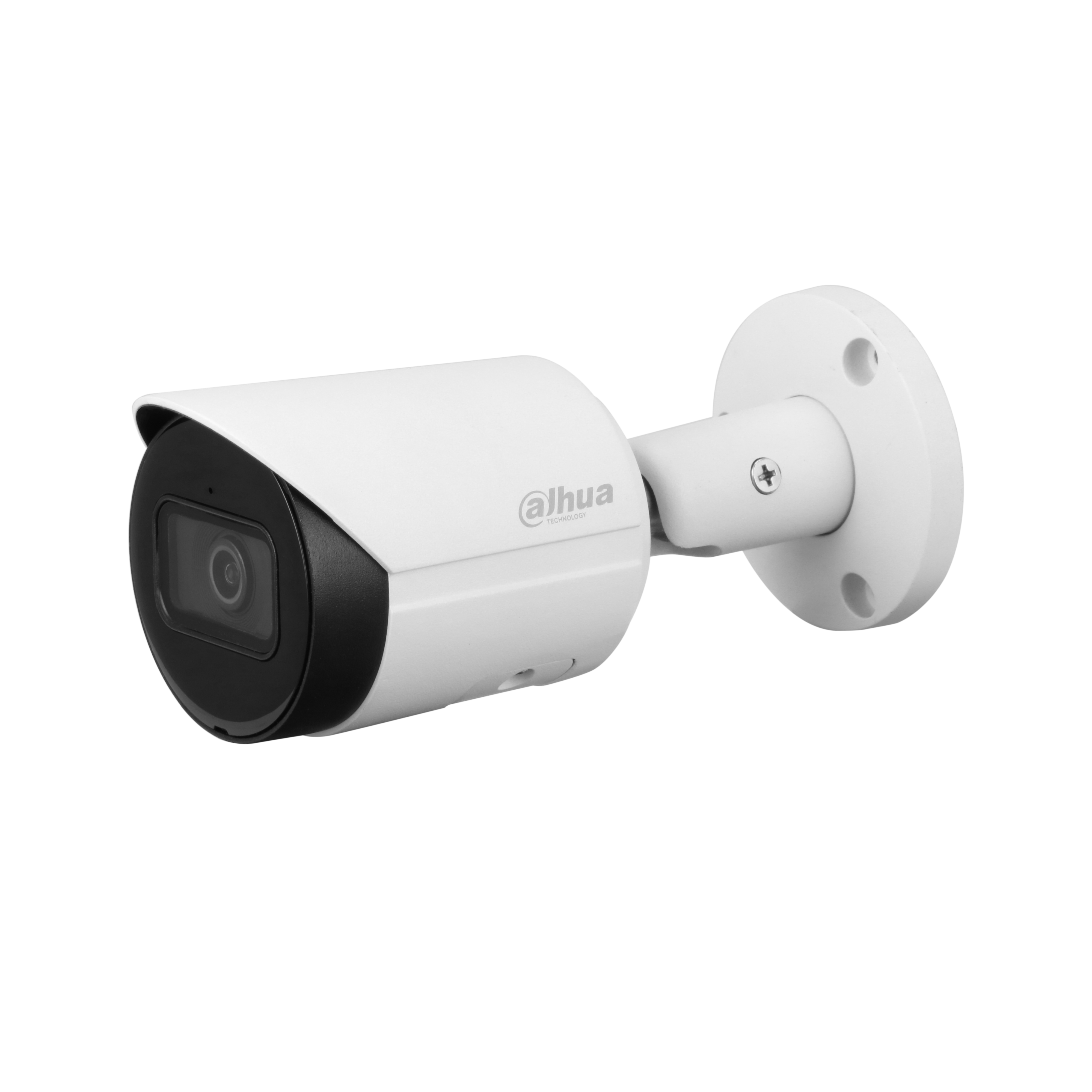

4MP IR Fixed-focal Bullet WizSense Network Camera

4MP IR Fixed-focal Bullet WizSense Network Camera

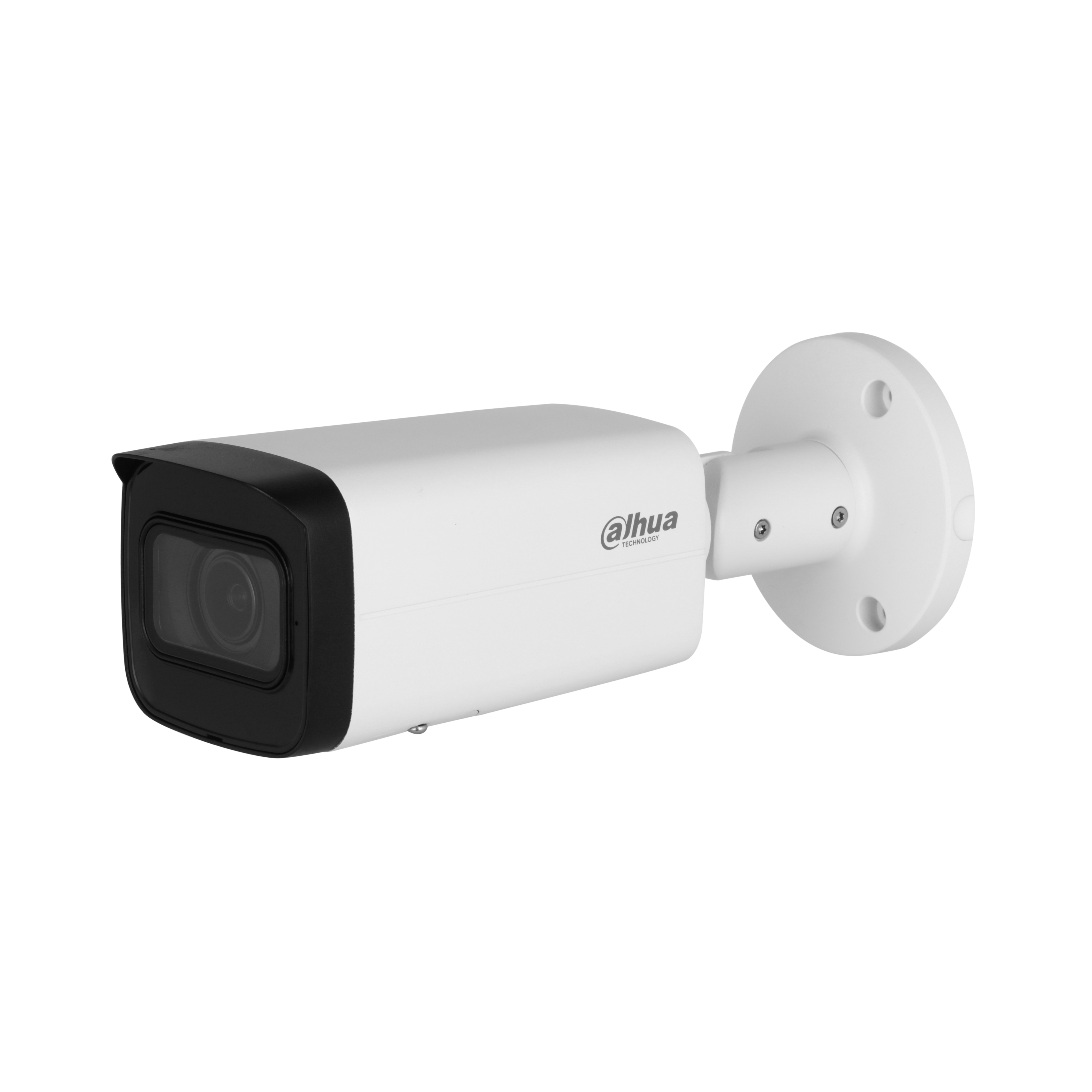

4MP IR Vari-focal Bullet WizSense Network Camera
