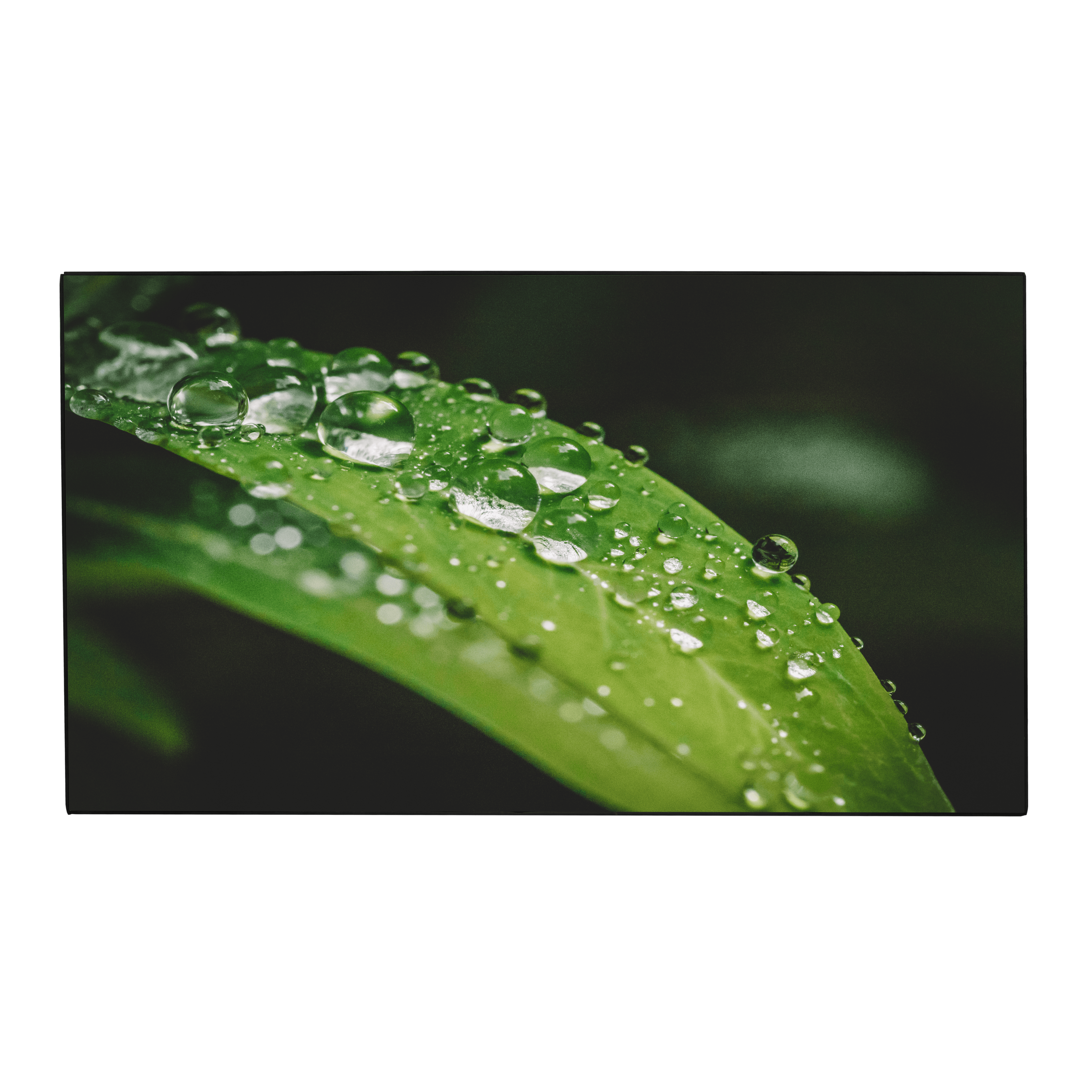

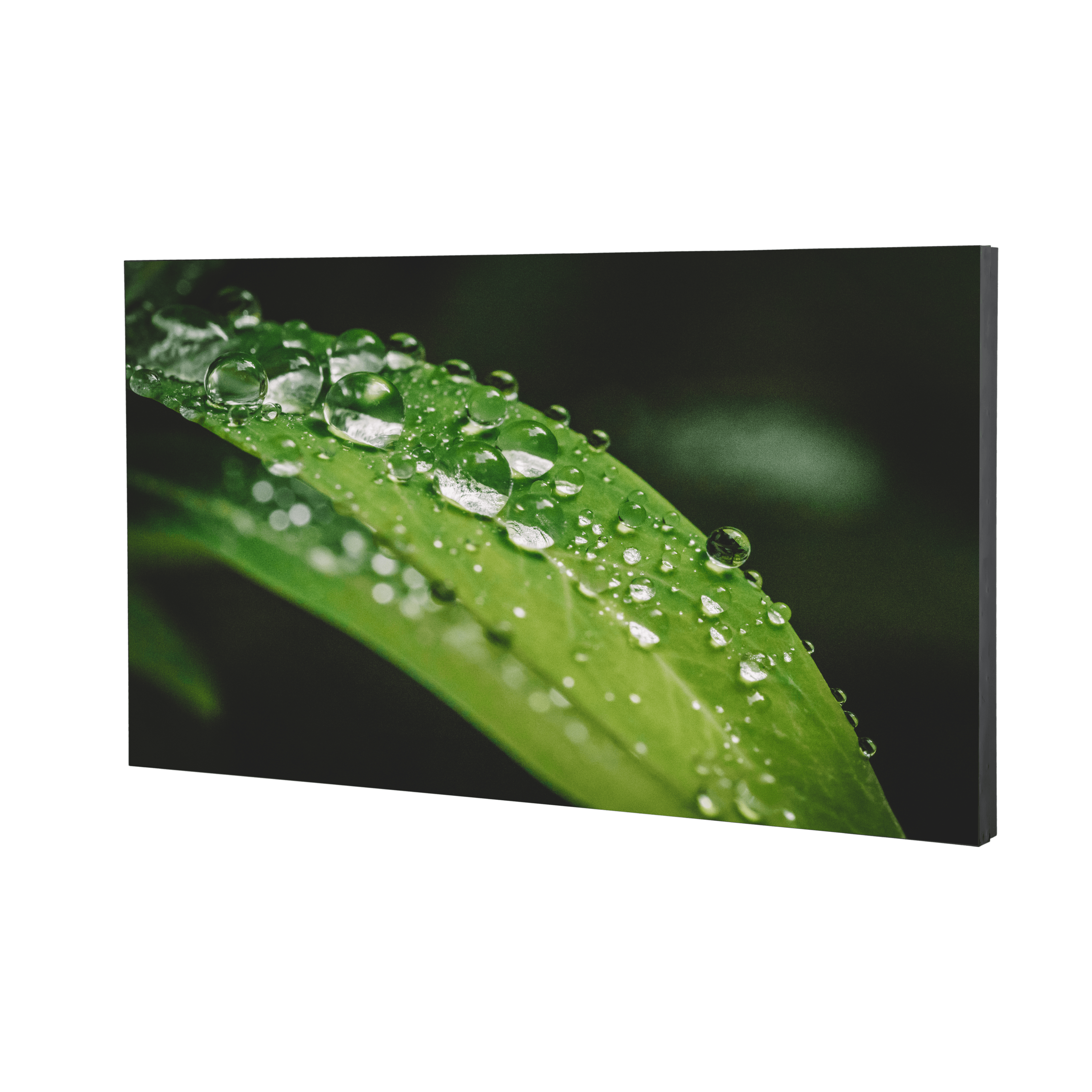

55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm)

Name: 55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm)
Brand: Dahua
SKU: LS550UDM-UF

Stock Code: LS550UDM-UF

A 1.7 mm bezel wall unit that takes a 4K source

An industrial ADS panel runs 24/7 at 1920×1080 and leaves a 1.7 mm panel-to-panel bezel. The DP input takes a 4K source directly, and the DP output passes the same signal to the next unit.

55"screen size

1920×1080resolution

500 cd/m²brightness

1200:1contrast ratio

8 msresponse time

ADSpanel type

Key features

2.45mm

Active area to active area

The gap between the images of two neighboring units stays at this width.

1.07billion colors

Wide color depth

10-bit processing prevents banding in gradients.

28%haze

Anti-glare surface

The matte finish scatters overhead light and keeps the image readable.

600× 400 mm

VESA mount

The standard M6 pattern supports both floor-standing and wall mounting.

180W

Typical power draw

Each unit in the wall works at this figure, and the maximum stays at 195 W.

IN DAILY USE

Modular installationThe modular structure allows several floor and wall layouts.

Control from a PCAn infrared remote and RS232 drive the wall from the operator's computer.

Built-in splicingThe unit splits one image across the wall without an extra controller.

Usage areasSurveillance center·Command center·Meeting room·Commercial display

Display
Diagonal Size	55" (16:9)
Panel Type	ADS
Resolution	1920×1080 (FHD)
Bezel Width	B2B: 1.7 mm (Panel Bezel to Panel Bezel), 0.9 mm (T/L), 0.8 mm (B/R); A2A: 2.45 mm (Active area to Active area), 1.5 mm (T/L), 0.95 mm (B/R)
Backlight	Direct LED
Brightness	500 cd/m²
Contrast Ratio	1200:1
Pixel Density	40 dpi
Viewing Angle	H178°, V178°
Response Time (G-to-G)	8 ms
Color Depth	10 bit (1.07b)
Color Temperature	10,000K
Surface Treatment	Haze 28%, 3H
MTBF	50,000 h
Signals
Input	VGA (D-Sub) ×1, DVI-D ×1, HDMI ×2, DP ×1, RS232 ×1, Audio ×1, IR ×1
Output	DP ×1, RS232 ×1, Audio ×1
General
Power Supply	AC100V ~ AC240V, 50/60 Hz
Power Consumption (Standby)	<0.5 W
Power Consumption (Typical)	180 W
Power Consumption (Max.)	195 W
Energy Efficiency Class (EU)	G
Installation Mode	Floor-standing, wall-mounted
VESA	600×400 mm, M6
Control Mode	Infrared, RS232 dual mode, supporting remote control by computer
Net Weight	28 kg (61.73 lb)
Gross Weight	33 kg (72.75 lb)
Product Dimension (W×H×D)	1212.7 mm × 683.5 mm × 121.7 mm (47.7" × 26.9" × 4.8")
Package Dimension (W×H×D)	1360 mm × 945 mm × 280 mm (53.5" × 37.2" × 11.0")
Temperature	0°C ~ +50°C
Humidity	10%RH ~ 80%RH (non-condensing)

Datasheet

LS550UDM-UF

ENpdf1/29/2024

A&E Dökümanları

LS550UDM-UF

docx5/16/2025

Kullanım Kılavuzu

LS550UDM-UF

pdf5/16/2025

LS550UDM-UF

pdf5/16/2025

Teknik Çizim

Fotoğraf

LS550UDM-UF

png5/16/2025

LS550UDM-UF

png5/16/2025
