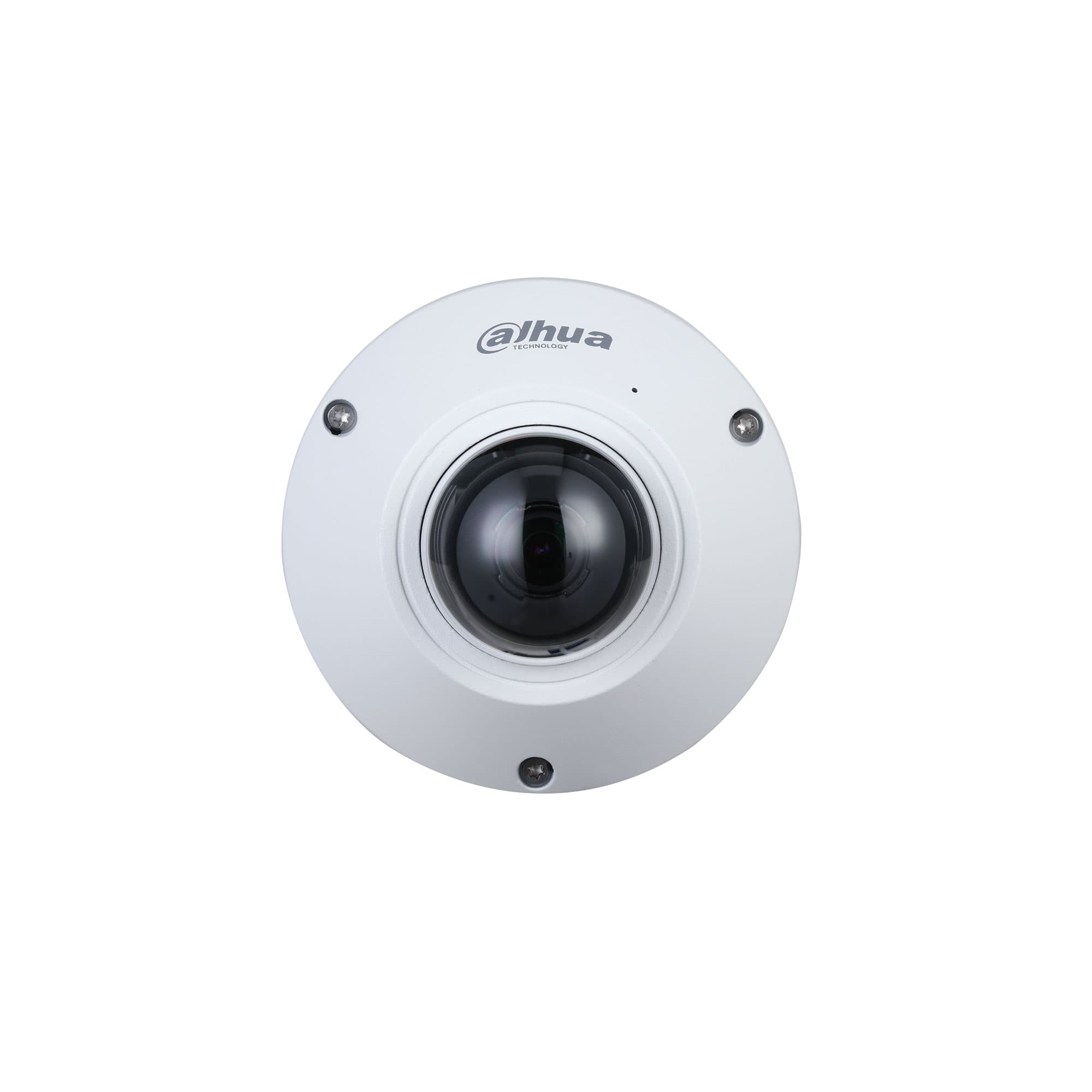

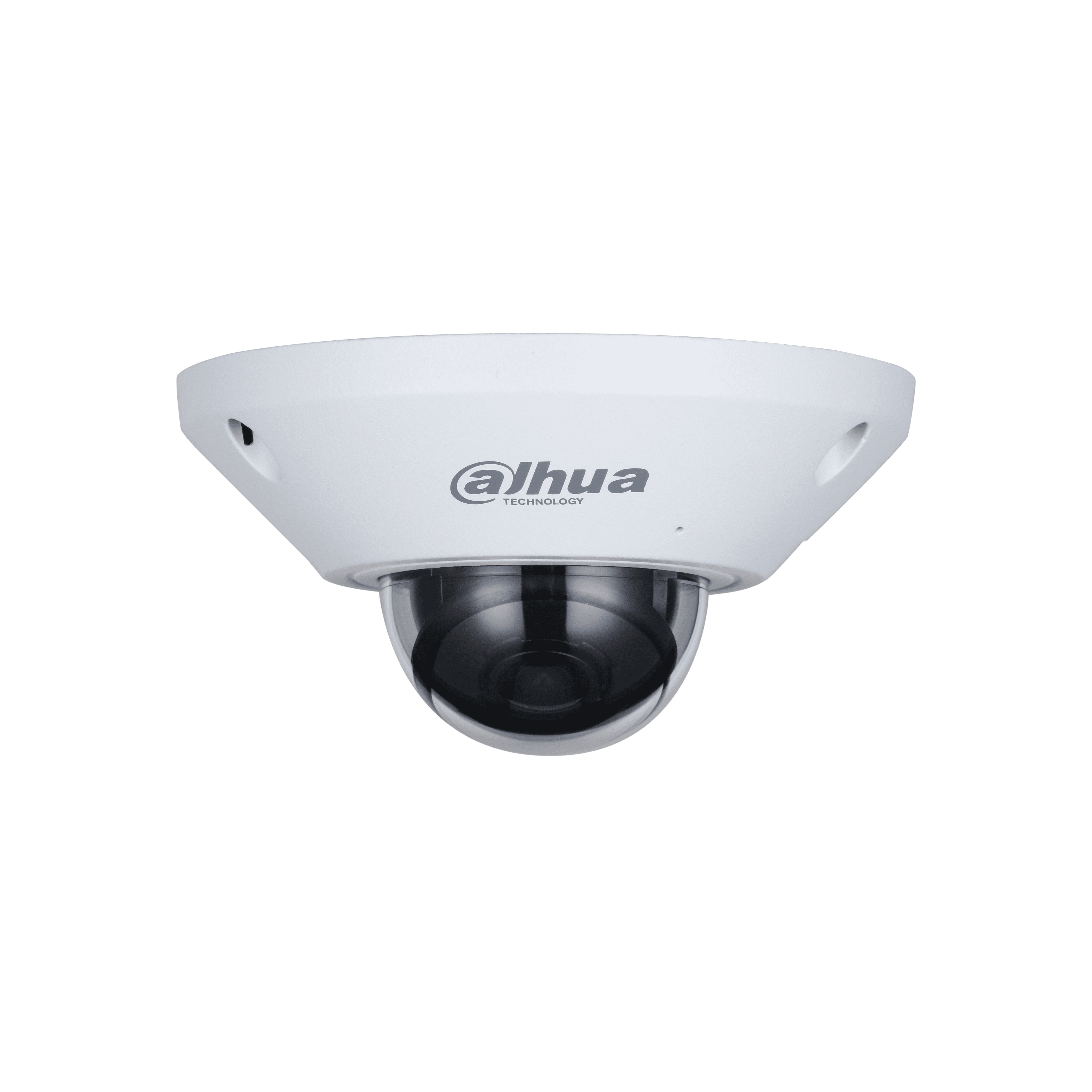

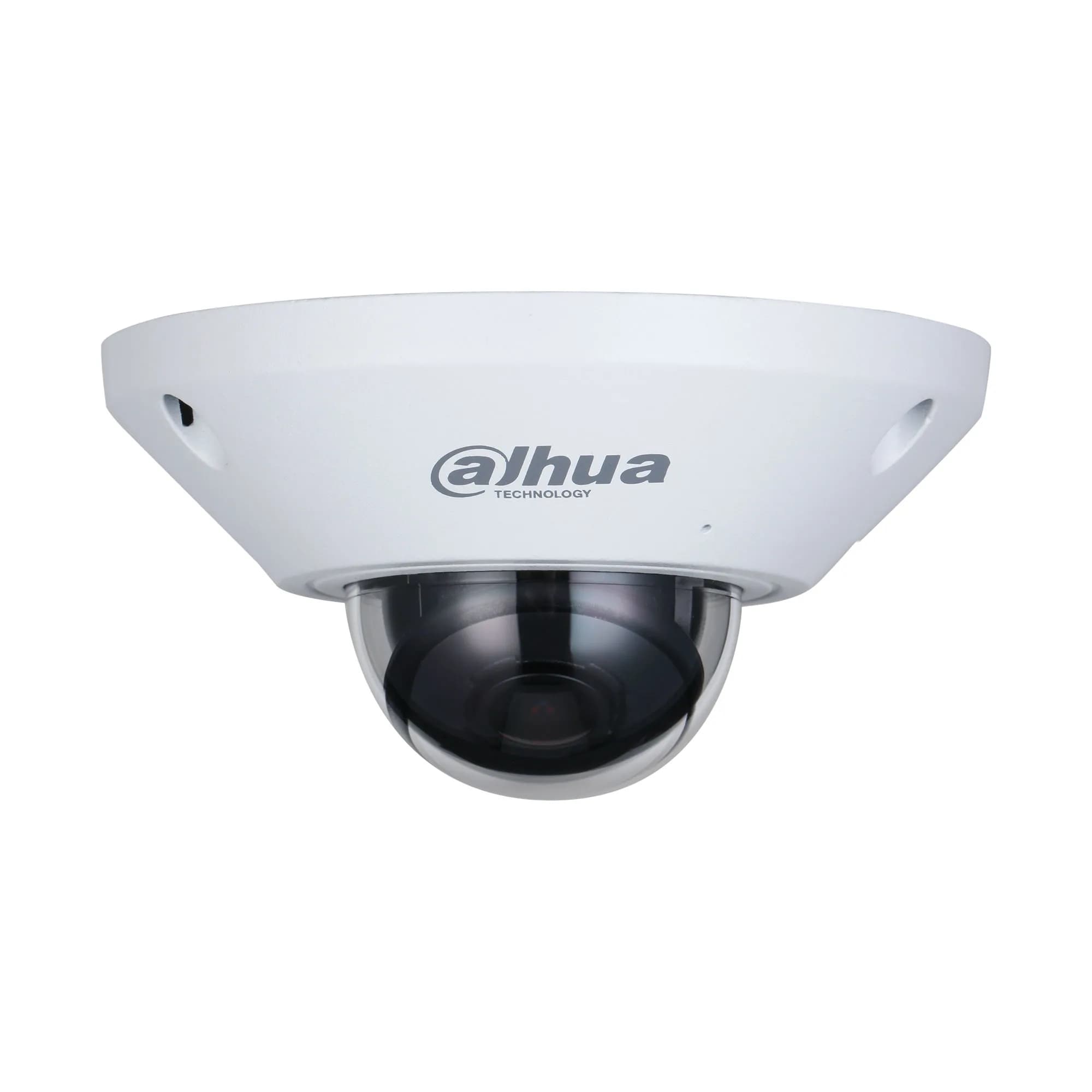

Stock Code: IPC-EB5541-M12-SA
| Camera | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/2.7" 5Megapixel progressive CMOS | ||||||||
| Max. Resolution | 2592 (H) × 1944 (V) | ||||||||
| ROM | 128 MB | ||||||||
| RAM | 512 MB | ||||||||
| Scanning System | Progressive | ||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||||
| Min. Illumination | 0.006 Lux@F2.0 (Color, 30IRE) | ||||||||
| S/N Ratio | > 56 dB | ||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–55° Rotation: 0°–360° | ||||||||
| Lens | |||||||||
| Lens Type | Fixed-focal | ||||||||
| Mount Type | M12 | ||||||||
| Focal Length | 1.4 mm | ||||||||
| Max. Aperture | F2.0 | ||||||||
| Field of View | Horizontal: 180° Vertical: 180° Diagonal: 180° | ||||||||
| Iris Type | Fixed | ||||||||
| Close Focus Distance | 0.2 m (0.7 ft) | ||||||||
| DORI Distance |
| ||||||||
| Smart Event | |||||||||
| Heat Map | Yes | ||||||||
| Professional, intelligent | |||||||||
| IVS (Perimeter Protection) | Tripwire; intrusion | ||||||||
| People Counting | Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas | ||||||||
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. | ||||||||
| Video | |||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | ||||||||
| Smart Codec | Smart H.265+/ Smart H.264+ | ||||||||
| Video Frame Rate | Main stream (2592 × 1944 @1–25/30 fps) sub stream (704 × 576 @1–25 fps/704 × 480 @1–30 fps) third stream (1280 × 720 @1–25/30 fps) | ||||||||
| Stream Capability | 3 streams | ||||||||
| Resolution | 5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||
| Bit Rate Control | CBR/VBR | ||||||||
| Video Bit Rate | H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps | ||||||||
| Day/Night | Color/B/W | ||||||||
| BLC | Yes | ||||||||
| HLC | Yes | ||||||||
| WDR | 120 dB | ||||||||
| Scene Self-adaptation (SSA) | Yes | ||||||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||||||
| Gain Control | Auto/Manual | ||||||||
| Noise Reduction | 3D DNR | ||||||||
| Motion Detection | OFF/ON (4 areas) | ||||||||
| Region of Interest (RoI) | Yes (4 areas) | ||||||||
| Privacy Masking | 4 areas | ||||||||
| Audio | |||||||||
| Built-in MIC | Yes | ||||||||
| Audio Compression | PCM; G.711a; G.711Mu; G726 | ||||||||
| Alarm | |||||||||
| Alarm Event | No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception | ||||||||
| Network | |||||||||
| SDK and API | Yes | ||||||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP | ||||||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P | ||||||||
| User/Host | 20 (Total bandwidth: 64 M) | ||||||||
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS | ||||||||
| Browser | IE: IE8, IE9 and IE11 Chrome Firefox | ||||||||
| Management Software | Smart PSS; DSS; DMSS | ||||||||
| Mobile Phone | IOS; Android | ||||||||
| Certification | |||||||||
| Certification | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 EN50155 EN45545-2 E-MARK: ECE Regulation 10.05 | ||||||||
| Power | |||||||||
| Power Supply | PoE (802.3af) | ||||||||
| Power Consumption | Basic power consumption: 4.7W (PoE) Max. power consumption (H.265 + intelligent function + WDR): 6W (PoE) | ||||||||
| Environment | |||||||||
| Operating Conditions | –30°C to +55°C (–22°F to +131°F)/Less than 95% RH | ||||||||
| Storage Conditions | –40°C to +60°C (–40°F to +140°F) | ||||||||
| Protection Grade | IP67; IK10 | ||||||||
| Structure | |||||||||
| Casing | Metal | ||||||||
| Dimensions | 62.0 mm × Φ110.0 mm (2.44" × Φ4.3") | ||||||||
| Net Weight | 405 g (0.9 lb) | ||||||||
| Gross Weight | 520 g (1.1 lb) | ||||||||
