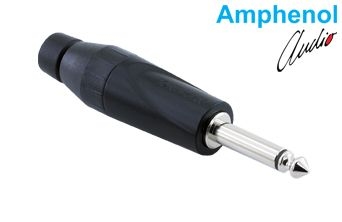

Name: 6.3mm Mono Male Jumbo Jack - Black
Brand: Amphenol
SKU: JM2PB

Connects a mono audio line to a 6.3 mm jack input in a matt black shell.

A matt black jumbo die-cast shell carries the tip and sleeve contacts. The nickel-plated contacts pass the mono signal on a single line. A jumbo insert assembly, backshell assembly and jumbo cable clamp complete the plug.

6.3 mmJack Size

MonoAudio Channel

MalePlug Type

Matt blackShell Finish

NickelContact Finish

Key features

Matt black shellThe die-cast jumbo shell carries a matt black finish and leaves a non-glossy surface.

Nickel-plated contactsThe tip and sleeve contacts are nickel plated and carry the mono signal.

Cable clampThe jumbo cable clamp grips the cable and keeps strain off the solder joints.

Parts listThe manufacturer lists the jumbo insert, die-cast shell, cable clamp and backshell assembly under separate part numbers.

RoHS complianceIt meets the material limits of the EU RoHS directive.

General Specifications

Product Type

6.3 mm (1/4") Mono Jumbo Jack Plug (Male)

Catalogue Part Number

JM2PB

Engineering Part Number

55010536-002

Shell Finish

Matt Black

Contact Finish

Tip & Sleeve – Nickel Plated

Shell Construction

Diecast jumbo shell

RoHS Compliance

EU RoHS 2002/95/EC compliant

Manufacturer

Amphenol Australia Pty. Ltd.

Components

Jumbo Insert Assembly

51560071-131

Jumbo Diecast Shell

53480053-331

1/4" Jumbo Cable Clamp

50260005-521

Jumbo Backshell Assembly

50440035-530

Notes

Coloured Grommet Option

Contact the factory for availability.

Connects a mono audio line to a 6.3 mm jack input in a matt black shell.

6.3 mmJack Size

MonoAudio Channel

MalePlug Type

Matt blackShell Finish

NickelContact Finish

Key features

Matt black shellThe die-cast jumbo shell carries a matt black finish and leaves a non-glossy surface.

Nickel-plated contactsThe tip and sleeve contacts are nickel plated and carry the mono signal.

Cable clampThe jumbo cable clamp grips the cable and keeps strain off the solder joints.

Parts listThe manufacturer lists the jumbo insert, die-cast shell, cable clamp and backshell assembly under separate part numbers.

RoHS complianceIt meets the material limits of the EU RoHS directive.

6.3mm Mono Male Jumbo Jack - Black

Teknik Çizim

JM2PB
