Stock Code: ACJS-MHDR
| General Specifications | |
|---|---|

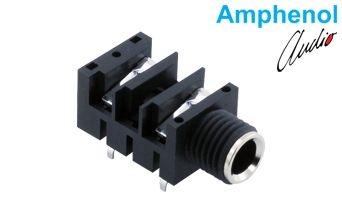

| Product Type | 6.35 mm (1/4") Stereo Phone Jack Socket |
| Catalogue P/N | ACJS-MHDR |
| Assembly P/N | 55010154-302 |
| Nut Type | Metal (plastic nut version: ACJS-PHDR) |
| Mounting Type | Horizontal PCB mount, panel mounting via threaded bushing |
| Number of Terminals | 6 |
| Contact Configuration | Tip (T), Ring (R), Sleeve (S) — each with switched contact |
| Standards Compliance | RoHS compliant (EU 2002/95/EC) |
| Manufacturer | Amphenol Australia Pty. Ltd. |
| Dimensions (mm) | |
| Overall Length | 33.5 mm |
| Body Width | 16.0 mm |
| Body Height | 12.70 mm |
| Axis Height (from body base) | 6.50 mm |
| Threaded Bushing Length | 9.10 mm |
| Front Flange Thickness | 1.00 mm |
| PCB Pin Length (typ.) | 4.50 mm |
| Metal Nut Across Flats | 15.01 / 14.38 mm |
| Metal Nut Thickness | 3.20 mm |
| Mounting Holes | |
| Panel Cutout Diameter | Ø11.4 ±0.1 mm |
| PCB Hole Diameter | 6 × Ø1.40 ±0.05 mm |
| Hole Pitch (horizontal) | 6.35 mm (12.70 mm total) |
| Row Spacing | 11.40 mm |
| Optional Mounting Hole | Ø2.1 / 2.0 mm (for self-tapping M2 screw) |
| Applications | |
| Areas of Use | Radio and TV Broadcasting Professional Studios Sound Reinforcement & PA Musicians and DJs Special Applications |
