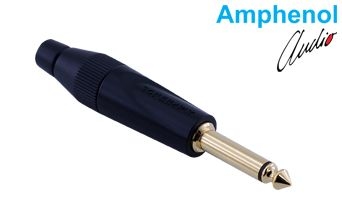

Name: 6.3mm Mono Male Connector - Black
Brand: Amphenol
SKU: TM2PBM

Terminates a mono audio line with a matt black 6.3 mm jack plug.

This 2-pole mono phone plug works with tip and sleeve contacts, and both the shell and the nut carry a matt black finish. A clamping-type cable clamp secures the cable to the plug. It fits professional audio lines from radio and TV broadcasting to studios and PA systems.

6.3 mmJack Size

MonoAudio Channel

MalePlug Type

2Contact Count

Matt blackShell Finish

NickelContact Finish

Key features

Contact configurationTip and sleeve contacts carry the mono signal on a single line.

Nominal currentIt carries a rated current of 10 A at 40 C.

Matt black finishShell and nut are matt black, and the contacts are nickel plated.

Clamping cable retentionThe clamp grips the cable and keeps strain off the solder joints.

RoHS complianceIt meets the material limits of the EU RoHS directive.

The product falls under US Patent Nos. 5,305,547 and 5,439,388.

General

Product Type

1/4" (6.35 mm) Phone Mono Plug

Manufacturer

Amphenol Australia Pty. Ltd.

Amphenol Part Number

TM2PBM

Reference Part Number

55010171-011

Materials and Plating

Shell Finish

Matt Black

Nut Finish

Matt Black

Contact Finish

Nickel (tip and sleeve)

Termination

Contact Configuration

Tip & Sleeve – 2-pole, mono

Cable Termination

Clamping-type cable clamp

Compliance and Certifications

RoHS

Compliant (EU 2002/95/EC)

Patent

US Patent Nos. 5,305,547 and 5,439,388

Applications

Radio and TV broadcasting; professional studios; sound reinforcement and PA; musicians and DJs; special applications

Terminates a mono audio line with a matt black 6.3 mm jack plug.

6.3 mmJack Size

MonoAudio Channel

MalePlug Type

2Contact Count

Matt blackShell Finish

NickelContact Finish

Key features

Contact configurationTip and sleeve contacts carry the mono signal on a single line.

Nominal currentIt carries a rated current of 10 A at 40 C.

Matt black finishShell and nut are matt black, and the contacts are nickel plated.

Clamping cable retentionThe clamp grips the cable and keeps strain off the solder joints.

RoHS complianceIt meets the material limits of the EU RoHS directive.

The product falls under US Patent Nos. 5,305,547 and 5,439,388.
