Stock Code: OR-HAC-HFW1100R

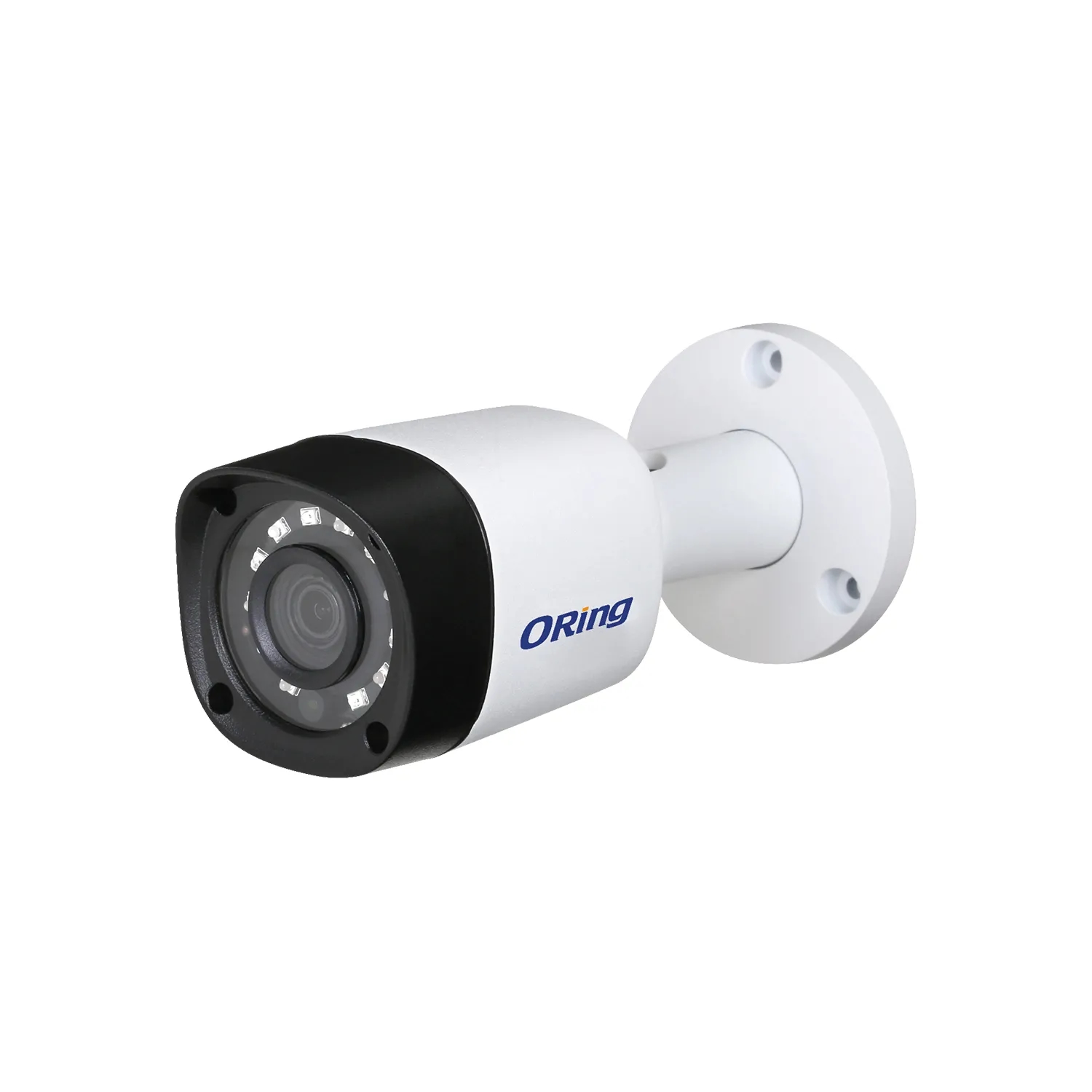

System Overview
Experience Full HD 1080P/HD 720P video with the convenience of using your existing cabling infrastructure. The Lite Series offers compact design and high-quality imaging at an affordable price. It provides multiple varifocal/fixed lens options with multilingual OSD and switchable HD/SD output. With flexible configuration and excellent cost performance, the Lite Series cameras are an ideal choice for SMB solutions.
Functions
1. Four Signals over One Coaxial Cable
HDCVI technology supports simultaneous transmission of four signals—video, audio*, data, and power—over a single coaxial cable. Two-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signals or triggering alarms. In addition, HDCVI technology supports PoC (Power over Coax) for greater installation flexibility.
Audio input is available for select HDCVI camera models.
Long Distance Transmission
HDCVI technology ensures real-time transmission without any loss over long distances. It supports transmission up to 800m (1080P)/1200m (720P) via coaxial cable and up to 300m (1080P)/450m (720P) via UTP cable.
Simplicity
HDCVI technology inherits the simplicity of traditional analog surveillance systems, making it the best choice for protecting your investment. The HDCVI system can smoothly upgrade existing analog systems without replacing the existing coaxial cabling. Its plug-and-play approach enables full HD video surveillance without the need to configure a network.
Smart IR
The camera is designed with microcrystalline IR LEDs for the best low-light performance. Smart IR technology ensures image brightness uniformity under low illumination. Dahua’s unique Smart IR automatically adjusts the intensity of the camera’s infrared LEDs to prevent overexposure as objects move closer to the camera.
Multiple Formats
The camera supports multiple video formats including HDCVI, CVBS, and two other common HD analog formats. These four formats can be switched via the OSD menu or PFM820 (UTC controller). This feature makes the camera compatible not only with HCVRs but also with most existing HD/SD DVRs used by end users.
Multilingual OSD
The OSD menu provides multiple image and function settings to meet different monitoring requirements. It includes configurations for backlight mode, day/night, white balance, privacy mask, and motion detection. The OSD menu supports 11 languages: Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian, and Polish.
Protection
The camera’s outstanding reliability is ensured by its robust design. With an IP67 rating, the camera is water and dust resistant, making it suitable for both indoor and outdoor use. Operating temperature ranges from -40°C to +60°C (-40°F to +140°F), designed to withstand extreme environments. Supporting a ±25% input voltage tolerance, the camera performs well even under unstable power conditions. Its 4KV lightning rating provides effective protection against lightning and surges.
Specifications
Max. 30fps@720P
Switchable HD and SD output
3.6mm fixed lens (2.8mm and 6mm optional)
Max. IR length: 20m, Smart IR
IP67, DC12V
