Name: 8 Core 50/125 Mutli Mode Tek Tüplü Çelik Zırhlı LSZH OM3 Fiber Optik Kablo
Brand: Oring Networking
SKU: FO108M3-LSZH

Carries building and campus backbones on 8 Multi Mode fibers.

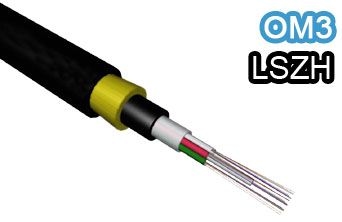

A single-tube, steel-armored fiber optic cable carrying 8 cores of 50/125 µm Multi Mode fiber. The OM3 grade fiber feeds short-distance high-speed links across building and campus backbones. The LSZH outer jacket keeps the cable suited to indoor ducts and in-building routes.

8Core Count

50/125 µmFiber Size

Multi ModeFiber Type

OM3Fiber Grade

LSZHOuter Jacket

Steel armoredArmor

Key features

8Core

Fiber capacity

A single run carries several links together.

50/125µm

Core and cladding size

Multi Mode fiber serves short and medium distance backbone links.

1.2kN

Tensile strength at break

The cable body takes this load during duct and aerial pulls.

200N/cm

Crush resistance

The steel armor keeps top pressure away from the fibers.

1kN

Impact resistance

The body resists sudden impacts during installation.

IN THE FIELD

Steel-armored bodyIt takes outside mechanical load in ducts, conduits and buried routes.

Single loose-tube designIt gathers the fibers in one loose tube and eases splitting at the splice closure.

Tested to standardsEN and ASTM methods verify tensile, crush, torsion and impact values.

ORing Networking fiber products carry a lifetime warranty.

General

Product Type

Fiber Optic Cable

Model

FO108M3-LSZH

Fiber Count

8 Core

Fiber Type

50/125 Multi Mode

Fiber Grade

OM3

Construction

Single Tube

Armour

Steel Armoured

Outer Sheath Material

LSZH

Warranty

Lifetime

Cable

Tensile Strength at Break

Unit	kN
Value	>1.2
Test Standard	EN 60794.1.E1

Breaking Tensile Strength

Unit	kN
Value	>1.5
Test Standard	EN 60794.1.E1

Crush Resistance

Unit	N/cm
Value	>200
Test Standard	EN 60794.1.E3

Repeating Bending Radius

Unit	mm
Value	<20xD
Test Standard	EN 60794.1.E6

Single Bending Radius

Unit	mm
Value	<15xD
Test Standard	EN 60794.1.E6

Torsion

Unit	+90° C,8
Value	Positive
Test Standard	EN 187 000 M 508

Impact

Unit	kN
Value	>1
Test Standard	EN 187000 M 504

Temperature

Test Standard

EN 60794.1.E11

Outer Sheath

Density

Unit	g/cm³
Value	>20
Test Standard	ASTM D 638

Tensile Strength at Break

Unit	N/mm²
Value	>400
Test Standard	ASTM D 638

Elongation at Break

Unit	%
Value	2/10
Test Standard	ASTM D 1693

E.S.C.R. (%10 lgepal C-630)

Unit	>500 hours
Value	2/10
Test Standard	ASTM D 746

Breaking Cold

Unit	<-75°C
Value	2.5+0.5
Test Standard	ASTM D 1603

Carbon Black Rate

Unit	%
Value	<0.950
Test Standard	ASTM D 792 METHOD A

Oxygen Induction Time

Unit	200°C
Value	>25
Test Standard	IEC 811.4.2 B

Tube Gel

Density (25°C)

Unit	g/cm³
Value	+0.05
Test Standard	DIN 51 757

Drop Point (24 Hour)

Unit	°C
Value	Appropriate
Test Standard	IEC 811.5.1 B

Drip Point (24 Hour)

Unit	°C
Value	>70
Test Standard	REA PE 39

Flash Point

Unit	°C
Value	>230
Test Standard	ISO 2592

Oil Separation (150°C, 24 Hour)

Unit	%
Value	0
Test Standard	FTM STD 791 C

Volatility

Unit	%
Value	<2
Test Standard	FTM STD 791 C

Water Amount

Unit	%
Value	<0.05
Test Standard	DIN 51 777

Acid Value (100°C)

Unit	% (mg KOH/g)
Value	<0.01
Test Standard	DIN 53 402

Abrasion

Value	Positive
Test Standard	IEC 811.5.1

Penetration (25°C / -30°C)

Unit	1/10 mm
Value	>150
Test Standard	ISO 2137

Oxygen Induction Time (180°C)

Unit	minute
Value	>20
Test Standard	IEC 811.4.2 B

100-500 V (100°)

Unit	Ω x m
Value	>10
Test Standard	ASTM D 1169

100-500 V (23°)

Unit	Ω x m
Test Standard	ASTM D 1169

Lose Tube

Value

>10,11

Density

Unit	g/cm³
Value	1.31+0.03
Test Standard	ISO 1183

Water Absorption (23°C)

Unit	%
Value	<0.45
Test Standard	DIN 53 495

Tensile Strength at Break

Unit	N/mm²
Value	<30
Test Standard	ISO 527

Elongation at Break

Unit	%
Value	>50
Test Standard	ISO 527

E-Modulus

Unit	N/mm²
Value	>2200
Test Standard	ISO 527

Shore

Unit	Shore D
Value	>78
Test Standard	DIN 53 505

Melting Temperature (DSC)

Unit	°C
Value	>220
Test Standard	ISO 3146 C

Lin. Thermal Ext. Coeff. (-23<<+80°C)

Unit	°K-1 x10-4
Value	<1.3

E-Glass Yarn

Density

Unit	g/cm³
Value	Offered
Test Standard	Offered

Tensile Strength at Break

Unit	%
Value	Offered
Test Standard	Offered

Elongation at Break

Unit	N/mm²
Value	Offered
Test Standard	Offered

E-Modulus

Unit	%
Value	Offered
Test Standard	Offered

Armouring

Steel Thickness

Unit	nm
Value	0.155±0.015
Test Standard	ASTM A 623 M

Tensile Strength at Break

Unit	N/mm²
Value	>300
Test Standard	ASTM E 6892

Elongation at Break

Unit	%
Value	>15
Test Standard	ASTM E 6892

Thickness of Coating

Unit	nm
Value	>0.050±0.01
Test Standard	ASTM A 623 M

DC Resistance

Unit	ohm/km
Value	<40
Test Standard	ASTM A 6892
