Name: 8 Core 62,5/125 Mutli Mode Tek Tüplü Çelik Zırhlı LSZH Fiber Optik Kablo
Brand: Oring Networking
SKU: FO208M-LSZH

GENERAL SPECIFICATIONS

Product Code

FO208M-LSZH

Brand

Oring Networking

Fiber Count

Fiber Type

Multi Mode

Core / Cladding Size

62.5/125

Tube Construction

Single loose tube

Armouring

Steel armoured

Outer Sheath

LSZH

Warranty

Lifetime warranty

TEST VALUES

Cable (Mechanical)

Property	Unit	Value	Test Standard
Tensile Strength at Break	kN	>1.2	EN 60794.1.E1
Breaking Tensile Strength	kN	>1.5	EN 60794.1.E1
Crush Resistance	N/cm	>200	EN 60794.1.E3
Repeated Bending Radius	mm	<20×D	EN 60794.1.E6
Single Bending Radius	mm	<15×D	EN 60794.1.E6
Torsion	+90 °C, 8	Positive	EN 187 000 M 508
Impact	kN	>1	EN 187000 M 504
Temperature			EN 60794.1.E11

Outer Sheath

Property	Unit	Value	Test Standard
Density	g/cm³	>20	ASTM D 638
Tensile Strength at Break	N/mm²	>400	ASTM D 638
Elongation at Break	%	2/10	ASTM D 1693
E.S.C.R. (10% Igepal C-630)	>500 hours	2/10	ASTM D 746
Breaking Cold	<-75 °C	2.5+0.5	ASTM D 1603
Carbon Black Rate	%	<0.950	ASTM D 792 Method A
Oxygen Induction Time	200 °C	>25	IEC 811.4.2 B

Tube Gel

Property	Unit	Value	Test Standard
Density (25 °C)	g/cm³	+0.05	DIN 51 757
Drop Point (24 hours)	°C	Appropriate	IEC 811.5.1 B
Drip Point (24 hours)	°C	>70	REA PE 39
Flash Point	°C	>230	ISO 2592
Oil Separation (150 °C, 24 hours)	%	0	FTM STD 791 C
Volatility	%	<2	FTM STD 791 C
Water Amount	%	<0.05	DIN 51 777
Acid Value (100 °C)	% (mg KOH/g)	<0.01	DIN 53 402
Abrasion		Positive	IEC 811.5.1
Penetration (25 °C / -30 °C)	1/10 mm	>150	ISO 2137
Oxygen Induction Time (180 °C)	minutes	>20	IEC 811.4.2 B
100-500 V (100°)	Ω × m	>10	ASTM D 1169
100-500 V (23°)	Ω × m		ASTM D 1169

Loose Tube

Property	Unit	Value	Test Standard
Loose Tube		>10,11
Density	g/cm³	1.31+0.03	ISO 1183
Water Absorption (23 °C)	%	<0.45	DIN 53 495
Tensile Strength at Break	N/mm²	<30	ISO 527
Elongation at Break	%	>50	ISO 527
E-Modulus	N/mm²	>2200	ISO 527
Hardness	Shore D	>78	DIN 53 505
Melting Temperature (DSC)	°C	>220	ISO 3146 C
Linear Thermal Expansion Coefficient (-23 … +80 °C)	°K⁻¹ × 10⁻⁴	<1.3

E-Glass Yarn

Property	Unit	Value	Test Standard
Density	g/cm³	offered	offered
Tensile Strength at Break	%	offered	offered
Elongation at Break	N/mm²	offered	offered
E-Modulus	%	offered	offered

Armouring

Property	Unit	Value	Test Standard
Steel Thickness	nm	0.155±0.015	ASTM A 623 M
Tensile Strength at Break	N/mm²	>300	ASTM E 6892
Elongation at Break	%	>15	ASTM E 6892
Thickness of Coating	nm	>0.050±0.01	ASTM A 623 M
DC Resistance	ohm/km	<40	ASTM A 6892

Carries 8 Multi Mode fibers along indoor routes under an LSZH jacket.

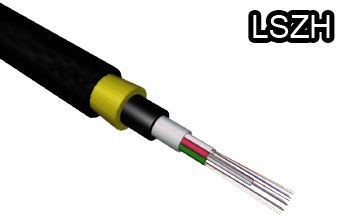

A single-tube, steel-armored fiber optic cable carrying 8 cores of 62,5/125 µm Multi Mode fiber. The LSZH outer jacket keeps the cable suited to indoor ducts and in-building routes. The steel armor takes the mechanical load during pulls and buried runs.

8Core Count

62,5/125 µmFiber Size

Multi ModeFiber Type

LSZHOuter Jacket

Steel armoredArmor

Key features

8Core

Fiber capacity

A single run carries several links together.

62,5/125µm

Core and cladding size

Multi Mode fiber serves short and medium distance backbone links.

1.2kN

Tensile strength at break

The cable body takes this load during duct and aerial pulls.

200N/cm

Crush resistance

The steel armor keeps top pressure away from the fibers.

1kN

Impact resistance

The body resists sudden impacts during installation.

IN THE FIELD

Steel-armored bodyIt takes outside mechanical load in ducts, conduits and buried routes.

Single loose-tube designIt gathers the fibers in one loose tube and eases splitting at the splice closure.

Tested to standardsEN and ASTM methods verify tensile, crush, torsion and impact values.

ORing Networking fiber products carry a lifetime warranty.

Property

Unit

Value

Test Standard

Tensile Strength at Break

>1.2

EN 60794.1.E1

Breaking Tensile Strength

>1.5

EN 60794.1.E1

Crush Resistance

N/cm

>200

EN 60794.1.E3

Repeated Bending Radius

<20×D

EN 60794.1.E6

Single Bending Radius

<15×D

EN 60794.1.E6

Torsion

+90 °C, 8

Positive

EN 187 000 M 508

Impact

EN 187000 M 504

Temperature

EN 60794.1.E11

Property

Unit

Value

Test Standard

Density

g/cm³

>20

ASTM D 638

Tensile Strength at Break

N/mm²

>400

ASTM D 638

Elongation at Break

2/10

ASTM D 1693

E.S.C.R. (10% Igepal C-630)

>500 hours

2/10

ASTM D 746

Breaking Cold

<-75 °C

2.5+0.5

ASTM D 1603

Carbon Black Rate

<0.950

ASTM D 792 Method A

Oxygen Induction Time

200 °C

>25

IEC 811.4.2 B

Property

Unit

Value

Test Standard

Density (25 °C)

g/cm³

+0.05

DIN 51 757

Drop Point (24 hours)

°C

Appropriate

IEC 811.5.1 B

Drip Point (24 hours)

°C

>70

REA PE 39

Flash Point

°C

>230

ISO 2592

Oil Separation (150 °C, 24 hours)

FTM STD 791 C

Volatility

FTM STD 791 C

Water Amount

<0.05

DIN 51 777

Acid Value (100 °C)

% (mg KOH/g)

<0.01

DIN 53 402

Abrasion

Positive

IEC 811.5.1

Penetration (25 °C / -30 °C)

1/10 mm

>150

ISO 2137

Oxygen Induction Time (180 °C)

minutes

>20

IEC 811.4.2 B

100-500 V (100°)

Ω × m

>10

ASTM D 1169

100-500 V (23°)

Ω × m

ASTM D 1169

Property

Unit

Value

Test Standard

Loose Tube

>10,11

Density

g/cm³

1.31+0.03

ISO 1183

Water Absorption (23 °C)

<0.45

DIN 53 495

Tensile Strength at Break

N/mm²

<30

ISO 527

Elongation at Break

>50

ISO 527

E-Modulus

N/mm²

>2200

ISO 527

Hardness

Shore D

>78

DIN 53 505

Melting Temperature (DSC)

°C

>220

ISO 3146 C

Linear Thermal Expansion Coefficient (-23 … +80 °C)

°K⁻¹ × 10⁻⁴

<1.3

Property

Unit

Value

Test Standard

Density

g/cm³

offered

Tensile Strength at Break

offered

Elongation at Break

N/mm²

offered

E-Modulus

offered

Property

Unit

Value

Test Standard

Steel Thickness

0.155±0.015

ASTM A 623 M

Tensile Strength at Break

N/mm²

>300

ASTM E 6892

Elongation at Break

>15

ASTM E 6892

Thickness of Coating

>0.050±0.01

ASTM A 623 M

DC Resistance

ohm/km

<40

ASTM A 6892
