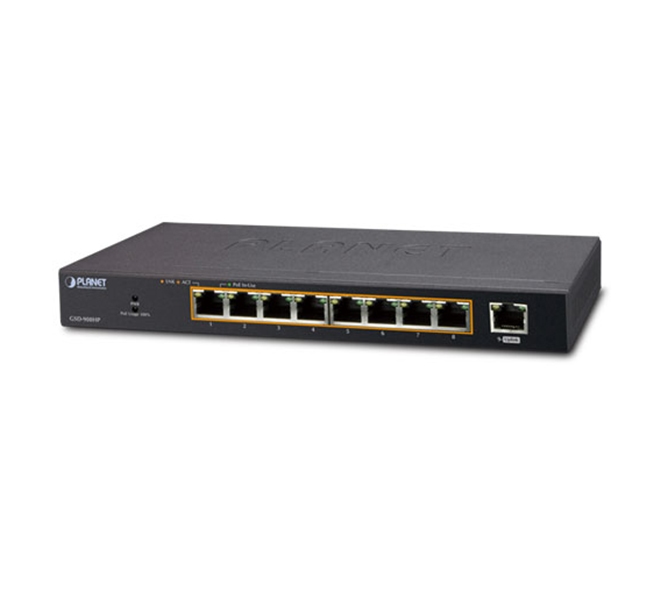

Name: 8-Port 10/100/1000T 802.3at PoE + 1-Port Gigabit Desktop Switch
Brand: Planet
SKU: GSD-908HP

Centralized Power Distribution for Ethernet Networking
The GSD-908HP, a new member in the PLANET 802.3af / 802.3at PoE Unmanaged Gigabit Ethernet Switch family, is an 8-port 10/100/1000T 802.3at Power over Ethernet + 1-port 10/100/1000T Desktop Switch with a total of 120 watts of PoE budget, which is an ideal solution to fulfilling the demand of sufficient PoE power for network applications with Gigabit Ethernet speed transmission. The eight 802.3af / 802.3at PoE Gigabit ports provide PoE power injector function which is able to drive 8 IEEE 802.3af compliant powered devices or 4 IEEE 802.3at compliant powered devices. The GSD-908HP also provides a simple, cost-effective and non-blocking Gigabit wire-speed performance. It comes with a metal compact housing, suitable for desktop deployment in SOHO office or department network application.

Perfectly Integrated Solution for PoE IP Camera and NVR System
Different from the general PoE Switch which usually comes with 12 or 24 PoE ports, the GSD-908HP provides eight 802.3af / 802.3at PoE Gigabit ports for catering to small scale of IP surveillance networks at a lower total cost. The GSD-908HP comes with high performance switch architecture and 120-watt PoE power budget. The recorded video files from 8 PoE IP cameras can be powered by the GSD-908HP and saved in the 8-channel NVR system or surveillance software to perform comprehensive security monitoring. For instance, one GSD-908HP can be combined with one 8-channel NVR and 8 PoE IP cameras as a kit for the administrators to centrally and efficiently manage the surveillance system in the local LAN and the remote site via Internet.

Stable and High Performance Switch Architecture
The GSD-908HP has a 4K MAC address table, featuring high performance switch architecture capable of providing the non-blocking 18Gbps switch fabric and wire-speed throughput as high as 13.3Mpps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the 802.3x full-duplex flow control function of the GSD-908HP enables PD devices and servers to be directly connected to the switch for wire-speed packet transfer performance without the risk of packet loss.

Easy Cable Connection
With data and power over Ethernet from one unit, the GSD-908HP reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords. Providing 8 PoE interfaces, the GSD-908HP is ideal for small businesses and workgroups requiring the PoE deployment of wireless access points, IP-based surveillance camera or IP phones in any places with ease, efficiency and cost-effectiveness.

SOHO / HOME-Use Gigabit Ethernet PoE Network Deployment
With its expanded home-use feature, the GSD-908HP 802.3at PoE+ Switch helps SOHO / home users to create an integrated data, video, and powered network. The wireless AP and PoE IP camera devices work perfectly with the GSD-908HP, which injects power through the Ethernet cables, thus helping SOHO / home users to build a cost-effective and reliable PoE networking environment easily.

Ideal Solution for Securing IP Surveillance Infrastructure
Particularly designed for the growing popular IP Surveillance applications, the GSD-908HP 802.3at PoE Switch is positioned as a Surveillance Switch for quick and easy PoE IP camera deployment with power feeding. The GSD-908HP provides both 802.3af and 802.3at PoE functions along with 8 10/100/1000Base-T ports featuring 15.4-watt 802.3af and 30-watt 802.3at PoE in RJ-45 copper interfaces and 1 extra Gigabit TP interface supporting high-speed transmission of surveillance images and videos. The PoE Usage LED indicator on the left-hand side of the GSD-908HP front panel will light up when PoE Power Usage exceeds the maximum 120-watt PoE budget of the GSD-908HP.

IP Office Department / Workgroup PoE Switch
With the business office expansion, the additional telephones required could be installed at a much lesser cost via the implementation of PoE IP Telephony system than that of the traditional circuit wiring telephony system. The GSD-908HP PoE Ethernet Switch helps enterprises to create an integrated data, voice, and powered network. The IEEE 802.3af compliant IP phones can be installed without the need of an additional power cable because the power can be provided via the standard Ethernet cable from the connected GSD-908HP.

The Wireless AP group, PoE IP Phones and Analog Telephony Adapter work perfectly with the GSD-908HP which injects power through the Ethernet cables. With the GSD-908HP, IP Telephony deployment becomes more reliable and cost-effective, which helps enterprises save tremendous cost when upgrading from the traditional telephony system to IP Telephony communications infrastructure.

8-Port 10/100/1000T 802.3at PoE + 1-Port Gigabit Desktop Switch
