Dahua

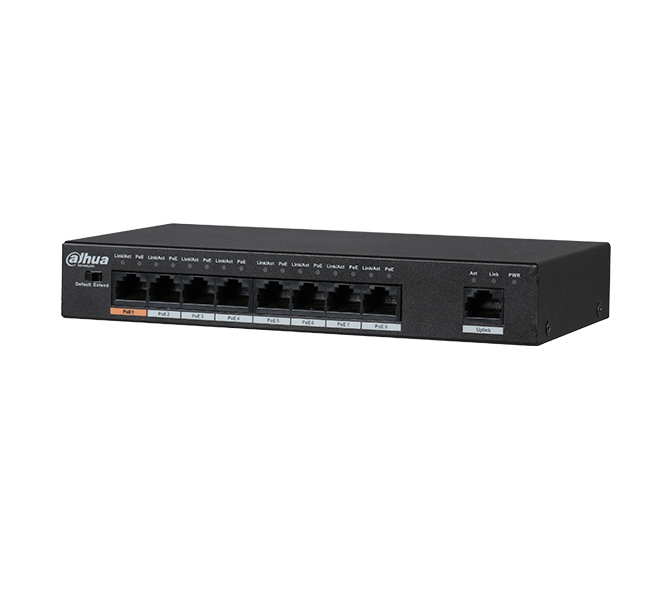

8-Port Fast Ethernet PoE Switch

Name: 8-Port Fast Ethernet PoE Switch
Brand: Dahua
SKU: PFS3009-8ET-96

Stock Code: PFS3009-8ET-96

A Fast Ethernet PoE switch that powers eight cameras and reserves a dedicated port for high-power devices.

This Layer 2 unmanaged switch carries eight PoE ports and one uplink port, gathering cameras and access points in a single housing. The red port supports IEEE802.3bt and feeds devices that draw high power.

8 + 1Port Count (PoE + uplink)

96 WTotal PoE Budget

1.8 GbpsSwitching Capacity

1.34 MppsPacket Forwarding Rate

2KMAC Table Size

-10 °C to +55 °COperating Temperature

Key features

8PoE ports

Power for cameras and access points

The ninth port serves as the uplink to the upstream network.

90W

Red port power output

It supports IEEE802.3bt and reserves high power for a single device.

96W

Total PoE budget

Power distributed across all ports stays within this figure.

250m

Long distance PoE transmission

It reaches remote camera points with no repeater in between.

1.8Gbps

Switching capacity

It moves traffic from eight cameras at once without congestion.

8kV

Static protection

It withstands 8 kV air discharge and 6 kV contact discharge.

IN DAILY USE

PoE watchdogIt detects an unresponsive camera and restarts the port, cutting down on site visits.

Desktop or wall mountingThe iron housing fits inside a small cabinet or on a wall.

No management neededThere is no settings interface; the installer plugs in the cable and the switch comes online.

Transmission distance and load figures were measured in the Dahua test lab and are for reference only; field results may differ.

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

Optical Port

Ethernet Port Speed

10/100 Mbps

Ethernet Port Uplink Speed

10/100 Mbps

Description of Function Slots

Port 1–8: 8 × RJ-45 10/100 Mbps (PoE)
Port 9: 1 × RJ-45 10/100 Mbps (Uplink)

Power Supply

External power supply: 48–57 VDC, 2–1.68 A

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5% – 95% (RH)

Power Consumption

Idling: 1.5 W
Full load: 96 W

Performance

Layer

Layer 2

Management Type

Smart Managed Switch

Switching Capacity

1.8 Gbps

Packet Forwarding Rate

1.34 Mpps

Packet Buffer Size

768 kbit

MAC Table Size

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x

Feature

PoE Protocol

IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power

96 W

Power Consumption Management

Yes

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

ePoE

Long Distance PoE Transmission

Yes

PoE Watchdog

Yes

General

Static Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lightning Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

0.49 kg (1.08 lb)

Gross Weight

1.3 kg (2.87 lb)

Product Dimensions

190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18") (L × W × H)

Packaging Dimensions

267 mm × 239 mm × 77 mm (10.51" × 9.41" × 3.03") (L × W × H)

Casing Material

Iron

Installation

Desktop mount; wall mount

Certifications

CE; FCC

Transmission Performance

Conditions

Switch power supply voltage 53 V.
CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m

Load Table

Cable (m)	Load Capacity (W)	Bandwidth (Mbps)
IEEE802.3bt 90W
100	71.3	100
150	62	10
200	51	10
250	40	10
Hi-PoE 60W
100	53	100
150	50	10
200	47	10
250	37	10
IEEE802.3at 30W
100	25.5	100
150	25.5	10
200	25.5	10
250	25.5	10

Note

Data from this table was collected by Dahua test lab and is for reference only. If there is inconsistency between field application and the table, the field result shall prevail.
