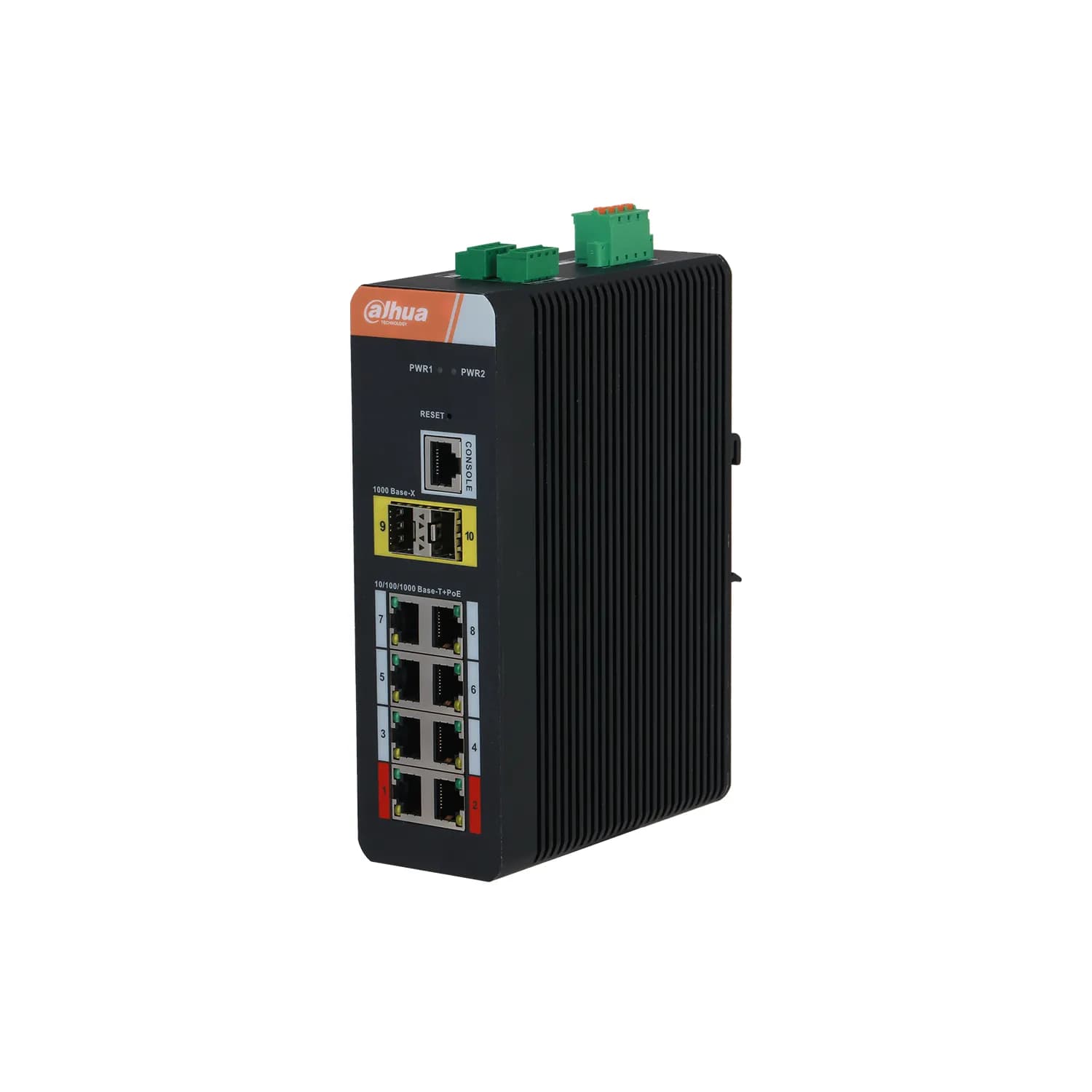

Name: 10-Port Gigabit Industrial Swicth with 8-Port Gigabit PoE (Managed)
Brand: Dahua
SKU: PFS4210-8GT-DP

Powers eight gigabit PoE ports with up to 90 W and reaches the fiber backbone

With an all-gigabit port layout, this managed industrial switch powers cameras and access points over 8 PoE ports, while 2 optical ports carry the fiber backbone. Ports 1 and 2 reach 90 W under IEEE 802.3bt, and the total budget stays at 120 W. It runs from -40 °C to 75 °C.

8 × 10/100/1000 MbpsPoE ports

120 WPoE Budget

802.3at, Hi-PoE and 802.3btPoE Protocol

28 GbpsSwitching Capacity

-40 °C to 75 °COperating Temperature

48 V ~ 57 V DCPower supply

Key features

90W

IEEE 802.3bt power

Ports 1 and 2 feed high-power devices over a single cable.

28Gbps

Switching capacity

Packet forwarding stays at 14.88 Mpps.

250m

Long-distance PoE

Runs up to 250 m at 10 Mbps bandwidth.

-40 to 75°C

Wide operating temperature

Works through summer and winter in an unheated field cabinet.

6kV

Lightning protection

Withstands 6 kV in common mode and 4 kV in differential mode.

IN DAILY USE

Small cabinet footprintThe body mounts on a DIN rail or a desktop and fits a narrow field cabinet.

Backup path on failureERPS ring protection brings the backup link in when a run breaks.

Remote managementSupports Web, Telnet, SNMP and CLI interfaces.

ApplicationsIndustrial field cabinets·IP camera networks

The product does not include a power adapter; a separate 48 V ~ 57 V DC supply is required.

Hardware

Included Power Adapter

PoE

Yes

Ethernet Port

Optical Port

Ethernet Port Speed

10 Mbps / 100 Mbps / 1000 Mbps

Optical Port Speed

1000 Mbps

Console Port

Power Supply Mode

48 V – 57 V DC

Operating Temperature

–40 °C to +75 °C (–40 °F to +167 °F)

Operating Humidity

10% – 90% (RH)

Power Consumption

Idling: ≤ 6 W
Full load: 120 W

Performance

Layer

Managed

Yes

Switching Capacity

28 Gbps

Packet Forwarding Rate

14.88 Mpps

Packet Buffer Size

4 Mbits

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad

MAC Table Size

Function

PoE Protocol

IEEE 802.3af (PoE); IEEE 802.3at (PoE+); Hi-PoE; IEEE 802.3bt

PoE Power

Port 1-2: ≤ 90 W
Port 3-8: ≤ 30 W
Total: ≤ 120 W

PoE Power Consumption Management

Power consumption management
PoE power on and off
Power off when PoE power is overloaded
Green PoE

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE Transmission

Yes

Jumbo Frame

9,000 bytes

Spanning Tree Protocol

ERPS

VLAN Function

802.1Q

Flow Control

Full-duplex flow control (back pressure)
Full-duplex flow control (PAUSE)

Link Aggregation

Static link aggregation; LACP

Port Mirroring

Multiple-to-one port mirroring

Multicast

Yes

DHCP Function

DHCP client
DHCP server
DHCP snooping

Security

User management
HTTPS
SSH
SNMP V1/V2C/V3
RMON
ACL
IP source guard
Port/VLAN-based ARP check
Static ARP check
Dynamic ARP check
802.1x
Loop protection

QoS

CoS/DPL/PCP/DEI-based QoS
8 output queue for each port
Port shaping
Port tag remarking
DSCP-based QoS

Maintenance

Uploading/downloading configuration files
Online upgrade
System logs

Device Management

Web (HTTP and HTTPS protocol); Telnet; SNMP; CLI

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lightning Protection

Common mode: 6 kV
Differential mode: 4 kV

Net Weight

1.25 kg (2.76 lb)

Gross Weight

1.52 kg (3.35 lb)

Product Dimensions (L×W×H)

125.4 mm × 53.5 mm × 175.0 mm (4.9" × 2.1" × 6.9")

Packing Dimensions (L×W×H)

254 mm × 287 mm × 101 mm (10.00" × 11.3" × 3.97")

Transmission Performance

Conditions

Switch power supply voltage 53 V.
CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m

Transmission Table

Cable (m)	Load Capacity (W)	Bandwidth (Mbps)
IEEE802.3bt 90 W
100	71.3	1000
150	62	10
200	51	10
250	40	10
Hi-PoE 60 W
100	53	1000
150	50	10
200	47	10
250	37	10
IEEE802.3at 30 W
100	25.5	1000
150	25.5	10
200	25.5	10
250	25.5	10

Note

Data from this table was collected by Dahua test lab and is for reference only. The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.
