Dahua

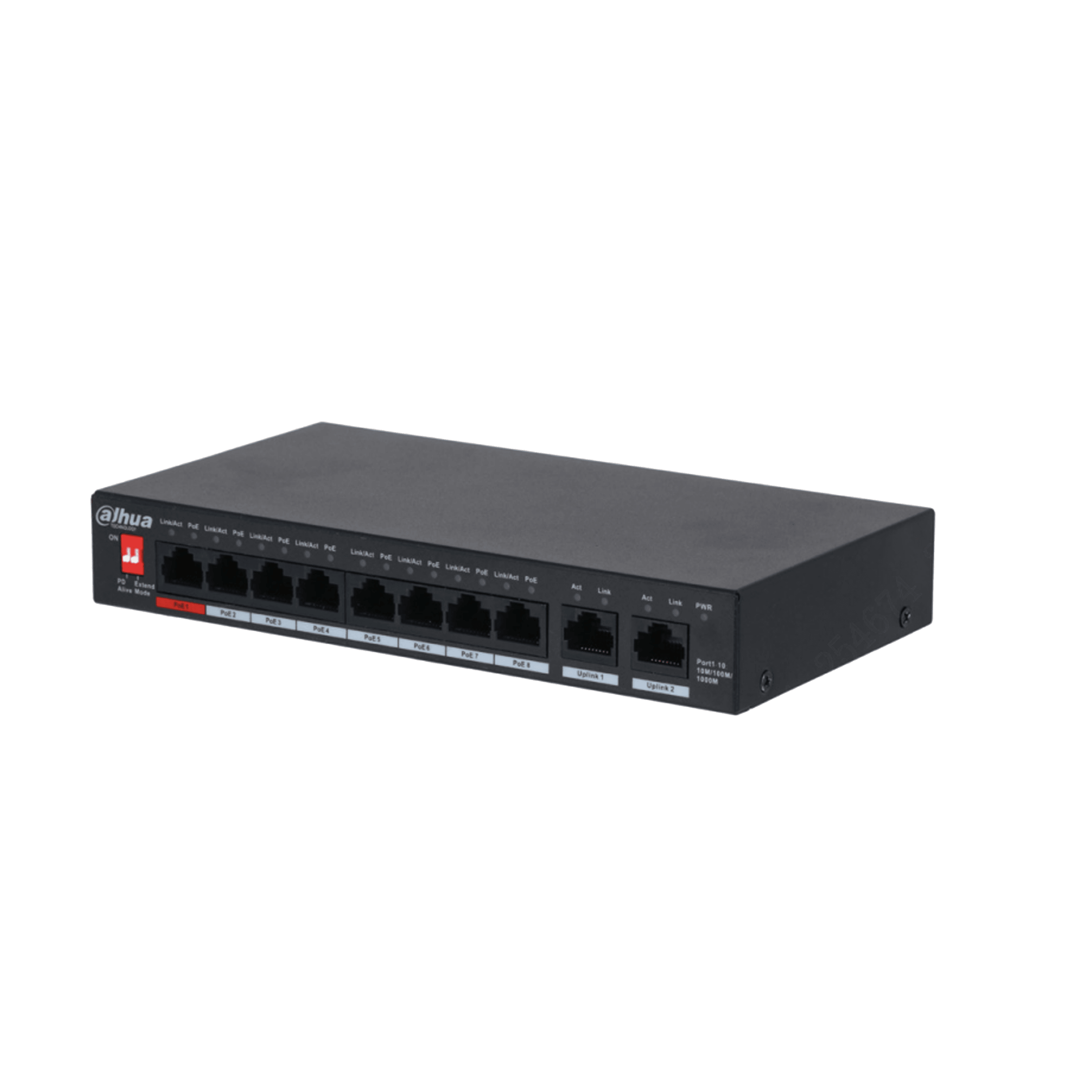

8-Port PoE Gigabit Ethernet Unmanaged Desktop Switch 96W

Name: 8-Port PoE Gigabit Ethernet Unmanaged Desktop Switch 96W
Brand: Dahua
SKU: PFS3010-8GT-96

Stock Code: PFS3010-8GT-96

An all-gigabit desktop PoE switch for eight cameras.

This Layer 2 unmanaged switch carries eight gigabit PoE ports and two gigabit uplink ports, bringing power and network connectivity together at one point in small and mid-size camera installations. Long distance PoE transmission reaches field points where the cable run grows long.

8 + 2Port Count (PoE + uplink)

96 WTotal PoE Budget

20 GbpsSwitching Capacity

14.88 MppsPacket Forwarding Rate

4KMAC Table Size

-10 °C to +55 °COperating Temperature

Key features

8Gigabit PoE ports

All-gigabit ports

Eight PoE ports and two uplink ports run at 10/100/1000 Mbps.

96W

Total PoE budget

It supports IEEE802.3bt and feeds devices that draw up to 90 W.

250m

Long distance PoE transmission

It reaches remote camera points without an extra power injector.

20Gbps

Switching capacity

It moves traffic without congestion while the gigabit ports fill up at once.

8kV

Static protection

It withstands 8 kV air discharge and 6 kV contact discharge.

IN DAILY USE

PoE watchdogIt detects an unresponsive camera and restarts the port.

Desktop placementThe small housing takes little room on a desk or at the edge of a shelf.

No management neededThere is no settings interface; the installer plugs in the adapter, connects the cables and the network runs.

Transmission distance and load figures were measured in the Dahua test lab and are for reference only; actual distance varies with cable type and the consumption of the connected device.

Hardware

Data Transmission Port

Port 1–8: 8 × RJ-45 10/100/1000 Mbps (PoE)
Port 9–10: 2 × RJ-45 10/100/1000 Mbps (Uplink)

Power Supply

48 V – 57 V DC

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5% – 95% (RH)

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Storage Humidity

5% – 95% (RH)

Power Consumption

Idling: 3 W
Full load: 96 W

Performance

Capacity

20 Gbps

Packet Forwarding Rate

14.88 Mpps

Packet Buffer Memory

1.5 Mbit

MAC Table Size

Communication Standard

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

PoE

PoE Standard

IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power

96 W

Power Consumption Management

Yes

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE

250 m long distance PoE transmission

General

Static Protection (ESD)

Air discharge: 8 kV
Contact discharge: 6 kV

Lightning Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

0.50 kg (1.10 lb)

Gross Weight

1.32 kg (2.91 lb)

Product Dimensions

190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18")

Transmission Performance

Test Conditions

Switch power supply voltage 53 V; CAT5E/CAT6; Max. DC resistance < 10 Ω/100 m

IEEE802.3bt 90 W

Cable (m)	Load Capacity (W)	Bandwidth (Mbps)
100	71.3	1000
150	62	10
200	51	10
250	40	10

Hi-PoE 60 W

Cable (m)	Load Capacity (W)	Bandwidth (Mbps)
100	53	1000
150	50	10
200	47	10
250	37	10

IEEE802.3at 30 W

Cable (m)	Load Capacity (W)	Bandwidth (Mbps)
100	25.5	1000
150	25.5	10
200	25.5	10
250	25.5	10

Note

Data from this table was collected by Dahua test lab and is for reference only. The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.
