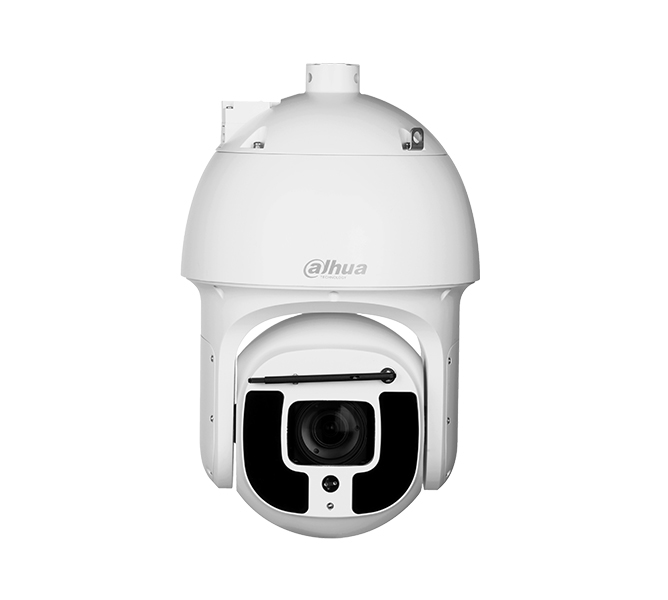

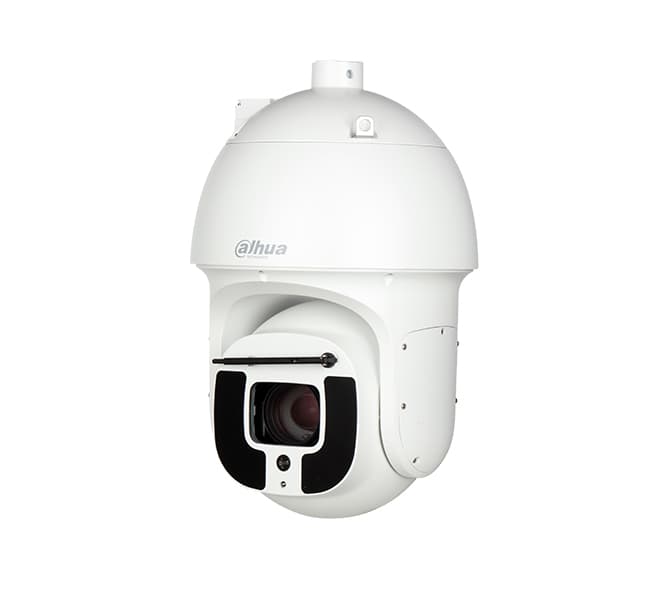

Stock Code: SD8A840XA-HNP-WP
| Camera | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/1.8" CMOS | ||||||||
| Pixel | 8 MP | ||||||||
| Max. Resolution | 3840 (H) × 2160 (V) | ||||||||
| ROM | 4 GB | ||||||||
| RAM | 1 GB | ||||||||
| Electronic Shutter Speed | 1/1 s – 1/300,000 s | ||||||||
| Scanning System | Progressive | ||||||||
| Min. Illumination | Color: 0.005 lux@F1.4 B/W: 0.0005 lux@F1.4 0 lux (IR on) | ||||||||
| Illumination Distance | 250 m (820.21 ft) (IR) | ||||||||
| Illuminator On/Off Control | Zoom Prio; Manual; Off | ||||||||
| Illuminator Number | 10 (IR) | ||||||||
| Wiper | Smart Wiper | ||||||||
| Lens | |||||||||
| Focal Length | 5.5 mm – 220 mm | ||||||||
| Max. Aperture | F1.4 – F4.5 | ||||||||
| Field of View | H: 63.9° – 2.0° V: 37.3° – 1.1° D: 71.2° – 2.3° | ||||||||
| Optical Zoom | 40× | ||||||||
| Focus Control | Auto; semi-auto; manual | ||||||||
| Close Focus Distance | 1.5 m – 8 m (4.92 ft – 26.25 ft) | ||||||||
| Iris Control | Auto | ||||||||
| DORI Distance | |||||||||
| DORI Distance |
| ||||||||
| PTZ | |||||||||
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: ‒30° to +90° | ||||||||
| Manual Control Speed | Pan: 0.1°/s – 240°/s Tilt: 0.1°/s – 100°/s | ||||||||
| Preset Speed | Pan: 240°/s Tilt: 120°/s | ||||||||
| Preset | 300 | ||||||||
| Tour | 8 (up to 32 preset per tour) | ||||||||
| Pattern | 5 | ||||||||
| Scan | 5 | ||||||||
| Speed Adjustment | Yes | ||||||||
| Power-off Memory | Yes | ||||||||
| Idle Motion | Preset; Tour; Pattern; Scanning | ||||||||
| PTZ Protocol | DH-SD; Pelco-P/D (auto recognition) | ||||||||
| Intelligence | |||||||||
| Hydrological Monitoring | Recognizes standard and virtual water level markers. Triggers an alarm when the water level exceeds any of the limits. It also detects floating debris and boats, and sends push notifications with data on the water level. | ||||||||
| Video | |||||||||
| Video Compression | H.265; Smart H.265+; Smart H.264+; H.264; MJPEG (Sub Stream 1) | ||||||||
| Streaming Capability | 3 Streams | ||||||||
| Video Frame Rate | Main stream: 4K/4M/3M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/CIF (1–25/30 fps) | ||||||||
| Bit Rate Control | CBR; VBR | ||||||||
| Day/Night | Auto (ICR); Color; B/W | ||||||||
| BLC | Yes | ||||||||
| WDR | Yes | ||||||||
| HLC | Yes | ||||||||
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp | ||||||||
| Gain Control | Auto; Manual | ||||||||
| Noise Reduction | 2D NR; 3D NR | ||||||||
| Motion Detection | Yes | ||||||||
| Region of Interest (RoI) | Yes | ||||||||
| Image Stabilization | Electronic (EIS) | ||||||||
| Defog | Optical | ||||||||
| Digital Zoom | 16× | ||||||||
| Image Rotation | 180° | ||||||||
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view | ||||||||
| S/N Ratio | ≥ 55 dB | ||||||||
| Audio | |||||||||
| Audio Compression | G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723; PCM | ||||||||
| Network | |||||||||
| Network Port | RJ-45 (10/100 Base-T) | ||||||||
| Network Protocol | HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; TCP | ||||||||
| Interoperability | ONVIF Profile S&G&T; GB/T28181; CGI | ||||||||
| Streaming Method | Unicast; Multicast | ||||||||
| User/Host | 20 (total bandwidth: 64 M) | ||||||||
| Storage | FTP; Micro SD card (256 GB) | ||||||||
| Port | |||||||||
| Analog Output | 1 channel (CVBS output, BNC) | ||||||||
| RS-485 | 1 (baud rate: 1200 bps – 9600 bps) | ||||||||
| Audio Input | 1 channel (LINE IN, bare wire) | ||||||||
| Audio Output | 1 channel (LINE OUT, bare wire) | ||||||||
| Alarm I/O | 7/2 | ||||||||
| Two-way Audio | Yes | ||||||||
| Alarm Linkage | Capture; preset; tour; pattern; recordings on SD card; alarm digital input; send email; client E-map | ||||||||
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; illegal access | ||||||||
| Power | |||||||||
| Power Supply | 36 VDC, 2.23 A (± 25%) | ||||||||
| Hi-PoE | Yes | ||||||||
| Power Consumption | Basic: 18 W Max.: 22 W (illuminator + PTZ working) | ||||||||
| Environment | |||||||||
| Operating Temperature | ‒40 °C – +70 °C (‒40 °F – +158 °F) | ||||||||
| Operating Humidity | ≤ 95% RH | ||||||||
| Protection | IP67; TVS 8000 V lightning proof; surge protection; voltage transient protection | ||||||||
| Structure | |||||||||
| Casing | ADC12, PC + 20% GF | ||||||||
| Product Dimensions | 415.9 mm × Φ262.0 mm (16.37" × Φ10.31") | ||||||||
| Net Weight | 8.5 kg (18.74 lb) | ||||||||
| Gross Weight | 13.57 kg (29.92 lb) | ||||||||
