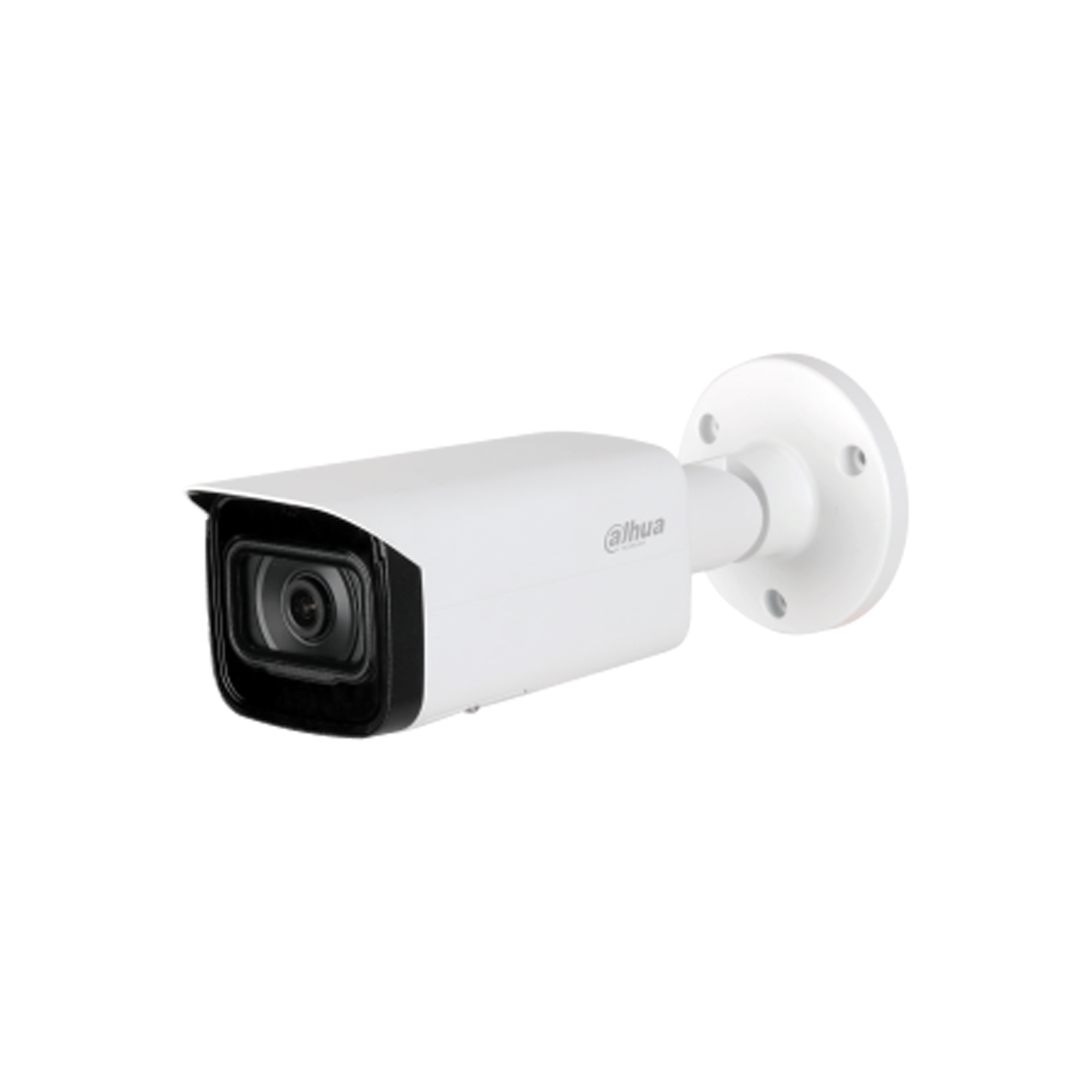

Stock Code: IPC-HFW5842T-ASE
| Camera | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/1.8" CMOS | ||||||||||||||||||||
| Max. Resolution | 3840 (H) × 2160 (V) | ||||||||||||||||||||
| ROM | 4 GB | ||||||||||||||||||||
| RAM | 2 GB | ||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||||||||||||||||
| Min. Illumination | 0.0008 lux@F1.6 (Color, 30 IRE) 0.0004 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) | ||||||||||||||||||||
| S/N Ratio | >56 dB | ||||||||||||||||||||
| Illumination Distance | Up to 80 m (262.47 ft) (IR) | ||||||||||||||||||||
| Illuminator On/Off Control | Auto; Manual | ||||||||||||||||||||
| Illuminator Number | 4 (IR LED) | ||||||||||||||||||||
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° | ||||||||||||||||||||
| Lens | |||||||||||||||||||||
| Lens Type | Fixed-focal | ||||||||||||||||||||
| Lens Mount | M12 | ||||||||||||||||||||
| Focal Length | 2.8 mm; 3.6 mm; 6 mm | ||||||||||||||||||||
| Max. Aperture | F1.6 | ||||||||||||||||||||
| Field of View | 2.8 mm: H: 110°; V: 57°; D: 134° 3.6 mm: H: 87°; V: 49°; D: 99° 6 mm: H: 60°; V: 35°; D: 68° | ||||||||||||||||||||
| Iris Control | Fixed | ||||||||||||||||||||
| Close Focus Distance | 2.8 mm: 1.9 m (6.23 ft) 3.6 mm: 2.3 m (7.55 ft) 6 mm: 4.0 m (13.12 ft) | ||||||||||||||||||||
| DORI Distance |
| ||||||||||||||||||||
| DORI Note | DORI (Detect, Observe, Recognize, Identify) is a standard (EN 62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to the installation and commissioning manual/project design tool. | ||||||||||||||||||||
| Intelligence | |||||||||||||||||||||
| EPTZ | Yes | ||||||||||||||||||||
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection. Supports long-distance mode. Supports self-learning, it filters out false alarms. | ||||||||||||||||||||
| Smart Object Detection | Smart abandoned object; smart missing object | ||||||||||||||||||||
| SMD | SMD 3.0 | ||||||||||||||||||||
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals and motor vehicles, and search through live and recorded videos to quickly locate targets. | ||||||||||||||||||||
| AI SSA | Yes | ||||||||||||||||||||
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. | ||||||||||||||||||||
| People Counting | Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. | ||||||||||||||||||||
| Heat Map | Yes | ||||||||||||||||||||
| Video Metadata | Motor vehicle, non-motor vehicle, face and human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expression, glasses, face mask and beard. | ||||||||||||||||||||
| Smart Search | Works together with Smart NVR to perform refined intelligent search, event extraction and merging to event videos. | ||||||||||||||||||||
| Smart Sound Detection | Yes | ||||||||||||||||||||
| Video | |||||||||||||||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | ||||||||||||||||||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||||||||||||||||||
| AI Coding | AI H.265; AI H.264 | ||||||||||||||||||||
| Video Frame Rate | Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–10 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subject to the total encoding capacity. | ||||||||||||||||||||
| Stream Capability | 4 streams | ||||||||||||||||||||
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||||||
| Video Bit Rate | H.264: 32 kbps–16384 kbps H.265: 12 kbps–13568 kbps | ||||||||||||||||||||
| Day/Night | Auto (ICR)/Color/B/W | ||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||
| WDR | 120 dB | ||||||||||||||||||||
| Scene Self-adaptation (SSA) | Yes | ||||||||||||||||||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||
| Gain Control | Auto | ||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||||||||||||||
| Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||
| Smart Illumination | Yes | ||||||||||||||||||||
| Defog | Yes | ||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (90°/270° supported with 4M (2688 × 1520) resolution and lower) | ||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||
| Privacy Masking | 8 areas | ||||||||||||||||||||
| LDC | Yes (only 2.8 mm/3.6 mm supports) | ||||||||||||||||||||
| Audio | |||||||||||||||||||||
| Built-in MIC | Yes | ||||||||||||||||||||
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 | ||||||||||||||||||||
| Alarm | |||||||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception | ||||||||||||||||||||
| Network | |||||||||||||||||||||
| Network Port | RJ-45 (10/100 Enhancement Base-T) | ||||||||||||||||||||
| SDK and API | Yes | ||||||||||||||||||||
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register | ||||||||||||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI | ||||||||||||||||||||
| User/Host | 20 (Total bandwidth: 80 M) | ||||||||||||||||||||
| Edge Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS | ||||||||||||||||||||
| Browser | IE: IE 9 and later; Chrome: Chrome 102 and later; Firefox: Firefox 88 and later | ||||||||||||||||||||
| Management Software | SmartPSS Lite; DSS; DMSS | ||||||||||||||||||||
| Mobile Client | iOS; Android | ||||||||||||||||||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certificate; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||
| Certification | |||||||||||||||||||||
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 | ||||||||||||||||||||
| Port | |||||||||||||||||||||
| Audio Input | 1 channel (RCA port) | ||||||||||||||||||||
| Audio Output | 1 channel (RCA port) | ||||||||||||||||||||
| Alarm Input | 1 channel in: wet contact, 5 mA 3 V–5 V DC | ||||||||||||||||||||
| Alarm Output | 1 channel out: wet contact, 300 mA 12 V DC | ||||||||||||||||||||
| Power | |||||||||||||||||||||
| Power Supply | 12 VDC/PoE (802.3af)/ePoE | ||||||||||||||||||||
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. | ||||||||||||||||||||
| Power Consumption | Basic: 4.1 W (12 VDC); 5.2 W (PoE) Max. (H.265+ WDR+ Intelligence on+ IR on): 8.3 W (12 VDC); 9.8 W (PoE) | ||||||||||||||||||||
| Environment | |||||||||||||||||||||
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||
| Operating Humidity | ≤95% | ||||||||||||||||||||
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||
| Storage Humidity | 10%–95% (RH), non-condensing | ||||||||||||||||||||
| Protection | IP67; IK10 | ||||||||||||||||||||
| Structure | |||||||||||||||||||||
| Casing Material | Metal | ||||||||||||||||||||
| Product Dimensions | 244.1 mm × 79.0 mm × 75.9 mm (9.61" × 3.11" × 2.99") (L × W × H) | ||||||||||||||||||||
| Net Weight | 0.82 kg (1.81 lb) | ||||||||||||||||||||
| Gross Weight | 1.08 kg (2.38 lb) | ||||||||||||||||||||
