Camera
Image Sensor	1/1.8" CMOS
Max. Resolution	3840 (H) × 2160 (V) - 8MP
ROM / RAM	256 MB / 1 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
S/N Ratio	>56 dB
Illuminator Control / Number	Auto; Manual / 4 (Multi-core (IR + warm) light)
Angle Adjustment	Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°
Lens & DORI
Lens Type / Mount	Fixed-focal / M16
Focal Length / Max. Aperture	2.8 mm; 3.6 mm / F1.0
Field of View (FoV)	2.8 mm: H: 109°, V: 59°, D: 131° / 3.6 mm: H: 93°, V: 50°, D: 111°
Close Focus Distance	2.8 mm: 3.2 m (10.50 ft) / 3.6 mm: 4.4 m (14.44 ft)
DORI Distance (2.8 mm)	Detect: 82.0 m; Observe: 32.8 m; Recognize: 16.4 m; Identify: 8.2 m
DORI Distance (3.6 mm)	Detect: 100.0 m; Observe: 40.2 m; Recognize: 20.0 m; Identify: 10.0 m
Intelligence
IVS (Perimeter Protection)	Intrusion, tripwire (supports accurate detection and classification of human and vehicle targets)
Face Detection	Face detection, snapshot, snapshot optimization, face enhancement, face angle filter
AcuPick & SMD	AcuPick deep learning target matching support and Smart Motion Detection (SMD 4.0)
AI SSA / Smart Search	Adjusts image parameters automatically; works with Smart NVR for refined intelligent search
Video & Audio
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG; AI Coding (AI H.265; AI H.264)
Resolution Options	8M (3840×2160); 6M; 5M; 4M; 3M; 1080p; 720p; D1; VGA; CIF
Video Bit Rate Control	CBR/VBR/ABR; H.264/H.265: 3 kbps–16384 kbps
Day/Night & WDR	Auto (ICR) / Color / B/W; Wide Dynamic Range (WDR)
Image Enhancement	BLC, HLC, 3D NR, Defog, Mirror, LDC (Lens Distortion Correction), Privacy Masking (8 areas)
Image Rotation	0°/90°/180°/270° (90°/270° rotation supported at 2688 × 1520 resolution and lower)
Audio Features	Built-in dual mic; built-in speaker (max. power consumption: 2 W; 110 dB @ 10 cm)
Audio Compression	PCM; G.711a; G.711Mu; G.726; G.723
General
Smart Illumination / Dual Light	Yes / Yes (Smart Dual Light System)
Motion Detection / Region of Interest (RoI)	OFF/ON (4 rectangular areas); RoI (4 areas)

An 8 MP bullet camera with a fixed-focal lens that sees the perimeter in color at night.

The 1/1.8" CMOS sensor produces images at 3840 × 2160, and the fixed-focal lens with an F1.0 aperture keeps color in low light. The multi-core illuminator lights the scene with infrared or warm light up to 60 m.

3840 × 2160Max. Resolution

1/1.8" CMOSImage Sensor

2.8 mm / 3.6 mmFocal Length

60 mIR LED Distance

IP67 / IK10Protection Grade

12 VDC / PoEPower Supply

Key features

8MP

Detailed image

High resolution keeps face detail across a wide scene.

60m

Color at night

Warm light preserves color and clothing detail in the dark.

100m

Long-range detection

The 3.6 mm lens detects movement at a distance.

512GB

Recording on the device

A MicroSD card stores video in the camera.

SMD4.0

Filters needless alarms

Smart motion detection screens out movement other than people and vehicles.

IN DAILY USE

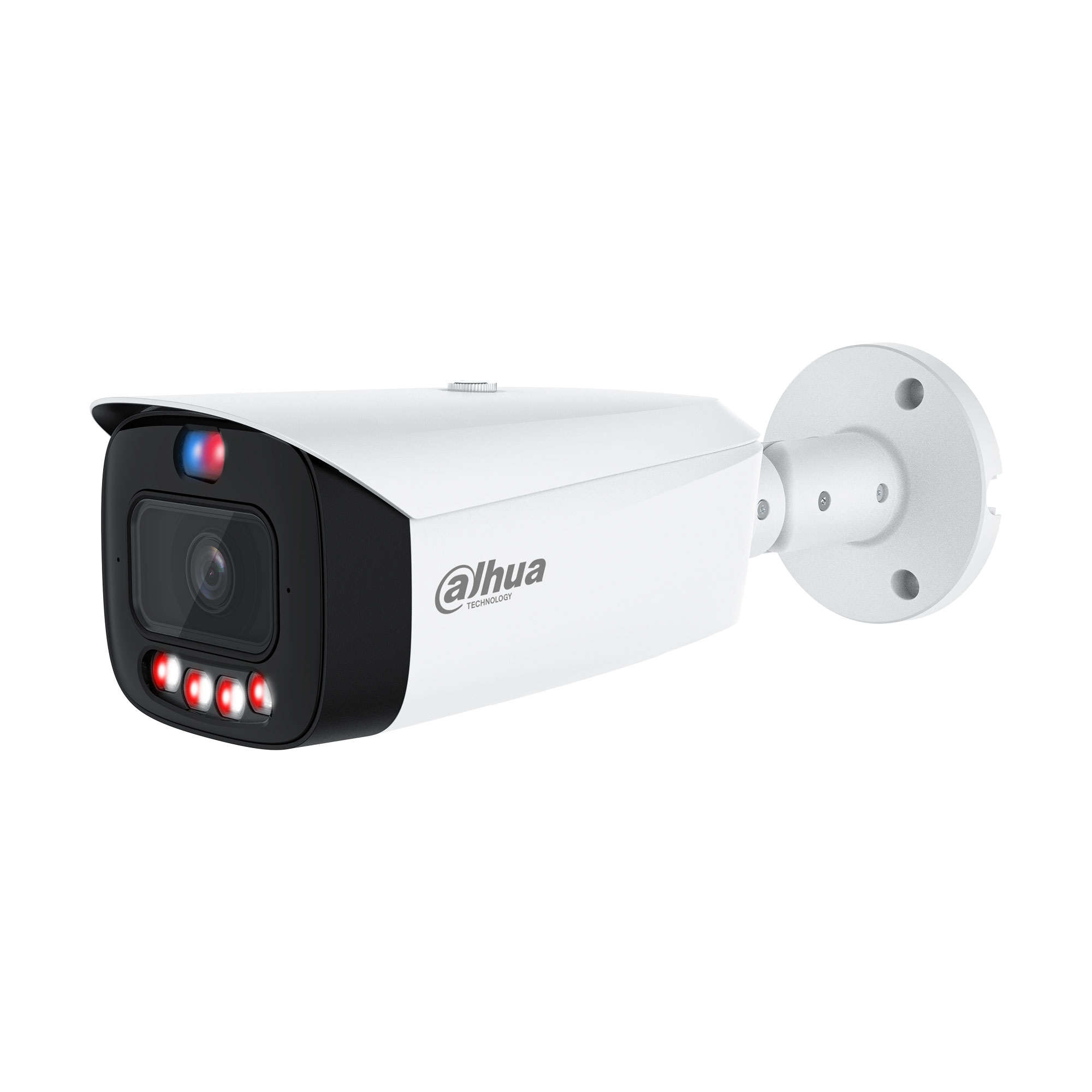

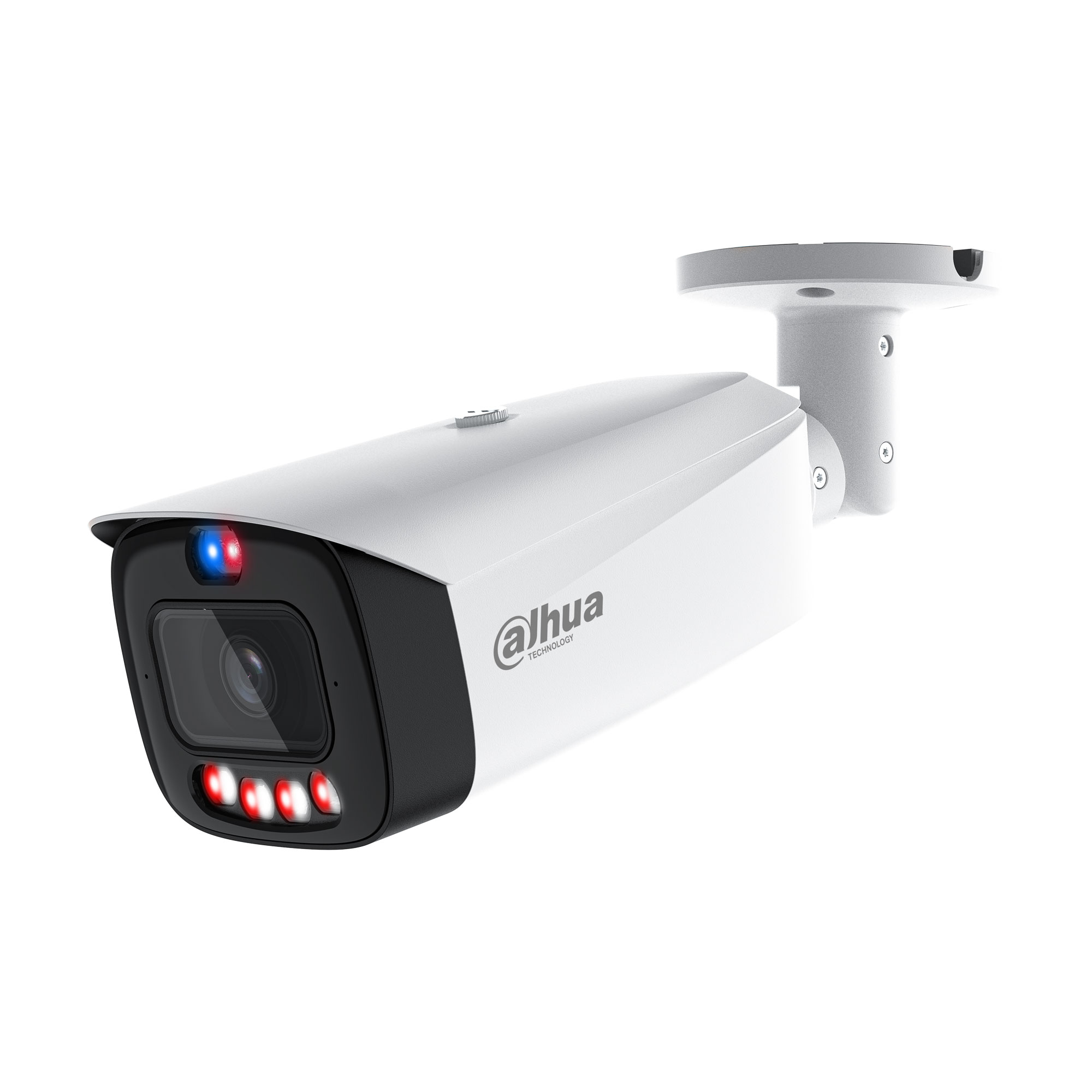

Active deterrenceThe sound and light alarm warns an intruder with red-blue light and a siren.

Two-way talkBuilt-in dual microphones and a speaker carry a conversation remotely.

One-tap armingA single tap arms and disarms the system.

Camera

Image Sensor

1/1.8" CMOS

Max. Resolution

3840 (H) × 2160 (V) - 8MP

ROM / RAM

256 MB / 1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

S/N Ratio

>56 dB

Illuminator Control / Number

Auto; Manual / 4 (Multi-core (IR + warm) light)

Angle Adjustment

Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens & DORI

Lens Type / Mount

Fixed-focal / M16

Focal Length / Max. Aperture

2.8 mm; 3.6 mm / F1.0

Field of View (FoV)

2.8 mm: H: 109°, V: 59°, D: 131° / 3.6 mm: H: 93°, V: 50°, D: 111°

Close Focus Distance

2.8 mm: 3.2 m (10.50 ft) / 3.6 mm: 4.4 m (14.44 ft)

DORI Distance (2.8 mm)

Detect: 82.0 m; Observe: 32.8 m; Recognize: 16.4 m; Identify: 8.2 m

DORI Distance (3.6 mm)

Detect: 100.0 m; Observe: 40.2 m; Recognize: 20.0 m; Identify: 10.0 m

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (supports accurate detection and classification of human and vehicle targets)

Face Detection

Face detection, snapshot, snapshot optimization, face enhancement, face angle filter

AcuPick & SMD

AcuPick deep learning target matching support and Smart Motion Detection (SMD 4.0)

AI SSA / Smart Search

Adjusts image parameters automatically; works with Smart NVR for refined intelligent search

Video & Audio

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG; AI Coding (AI H.265; AI H.264)

Resolution Options

8M (3840×2160); 6M; 5M; 4M; 3M; 1080p; 720p; D1; VGA; CIF

Video Bit Rate Control

CBR/VBR/ABR; H.264/H.265: 3 kbps–16384 kbps

Day/Night & WDR

Auto (ICR) / Color / B/W; Wide Dynamic Range (WDR)

Image Enhancement

BLC, HLC, 3D NR, Defog, Mirror, LDC (Lens Distortion Correction), Privacy Masking (8 areas)

Image Rotation

0°/90°/180°/270° (90°/270° rotation supported at 2688 × 1520 resolution and lower)

Audio Features

Built-in dual mic; built-in speaker (max. power consumption: 2 W; 110 dB @ 10 cm)

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

General

Smart Illumination / Dual Light

Yes / Yes (Smart Dual Light System)

Motion Detection / Region of Interest (RoI)

OFF/ON (4 rectangular areas); RoI (4 areas)

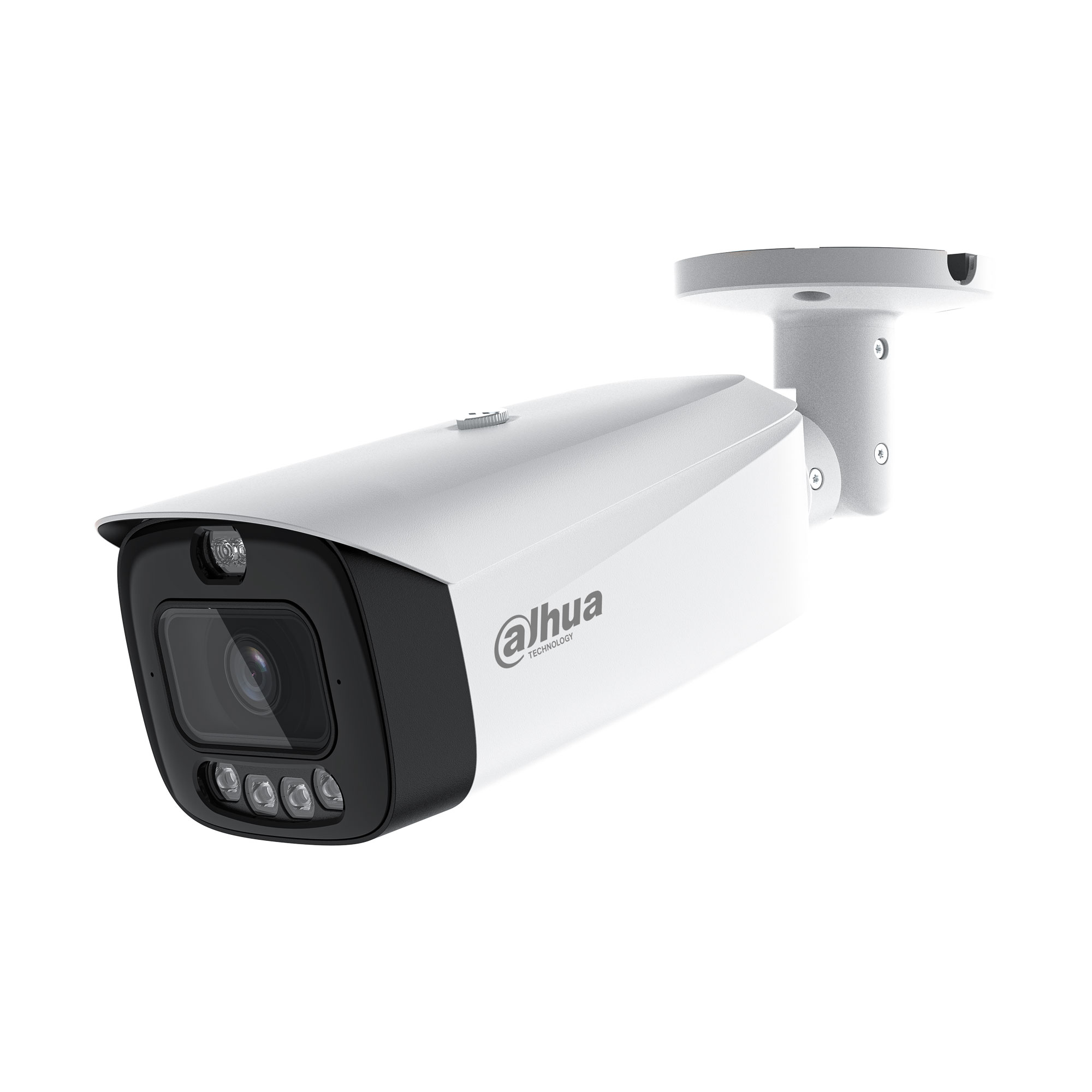

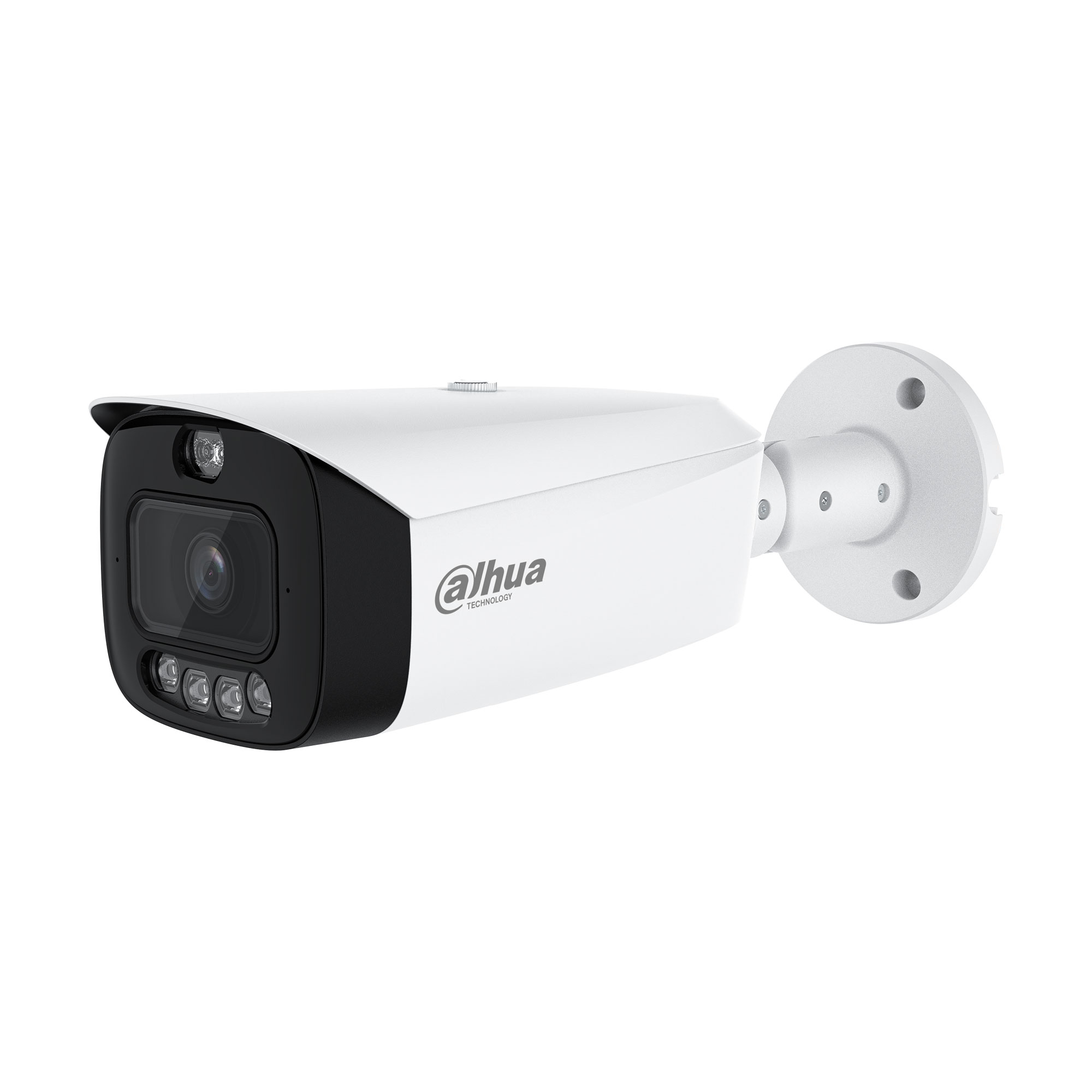

8MP WizColor TiOC PRO Fixed-focal Bullet WizSense Network Camera
