Name: Actassi U/UTP 4P CAT6 300MHz LSZH Cable - 500m
Brand: Schneider
SKU: VDIC616218

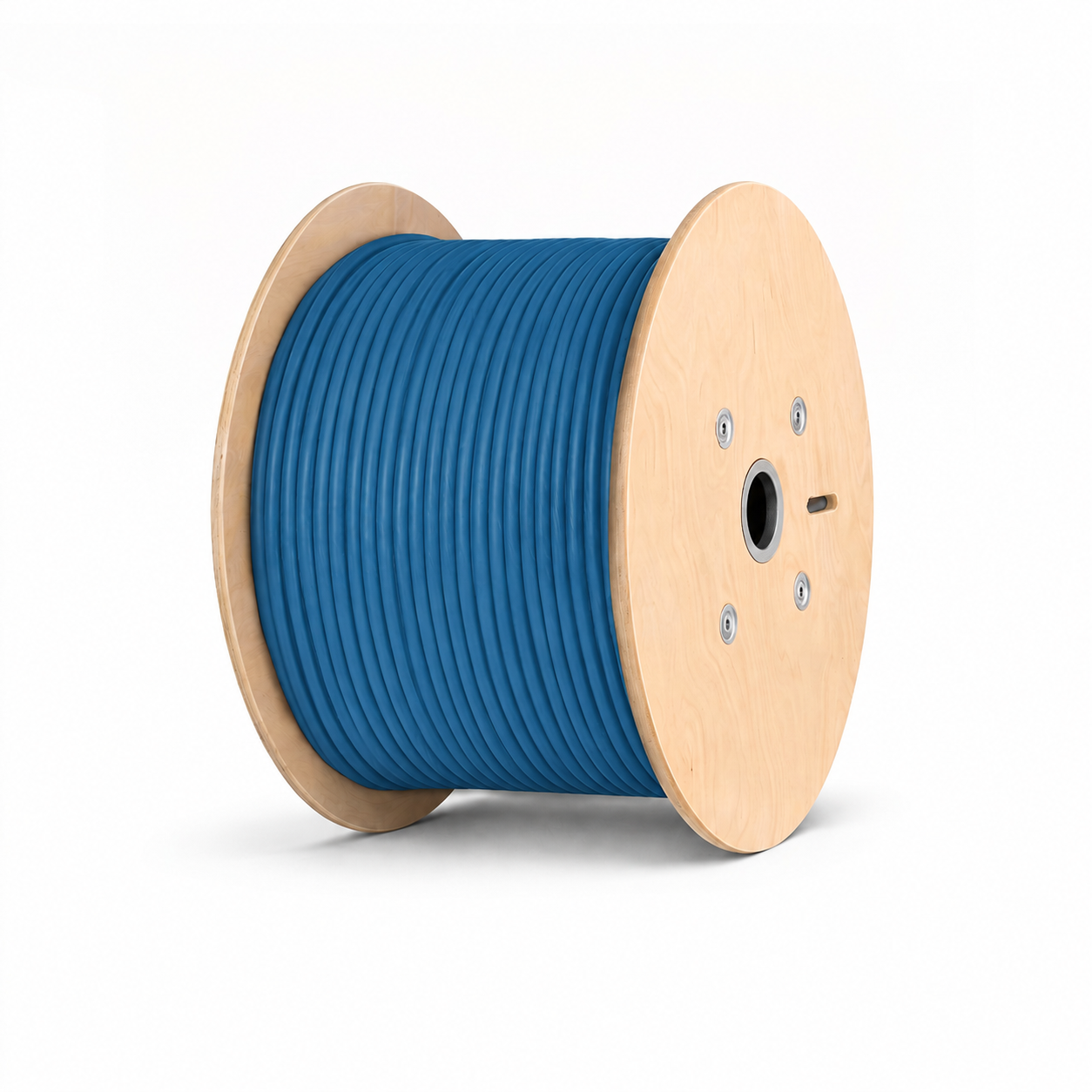

Runs in-building horizontal data cabling from a 500 meter drum

An unshielded U/UTP CAT6 installation cable built from four twisted pairs. In office and in-building structured cabling it runs the horizontal links between outlet and panel, and carries Gigabit Ethernet and VoIP traffic on the same cable.

Cat 6Network category

U/UTPShielding

AWG 23Cable Thickness

LSZHJacket material

6 mmOuter diameter

500 mDrum length

Key features

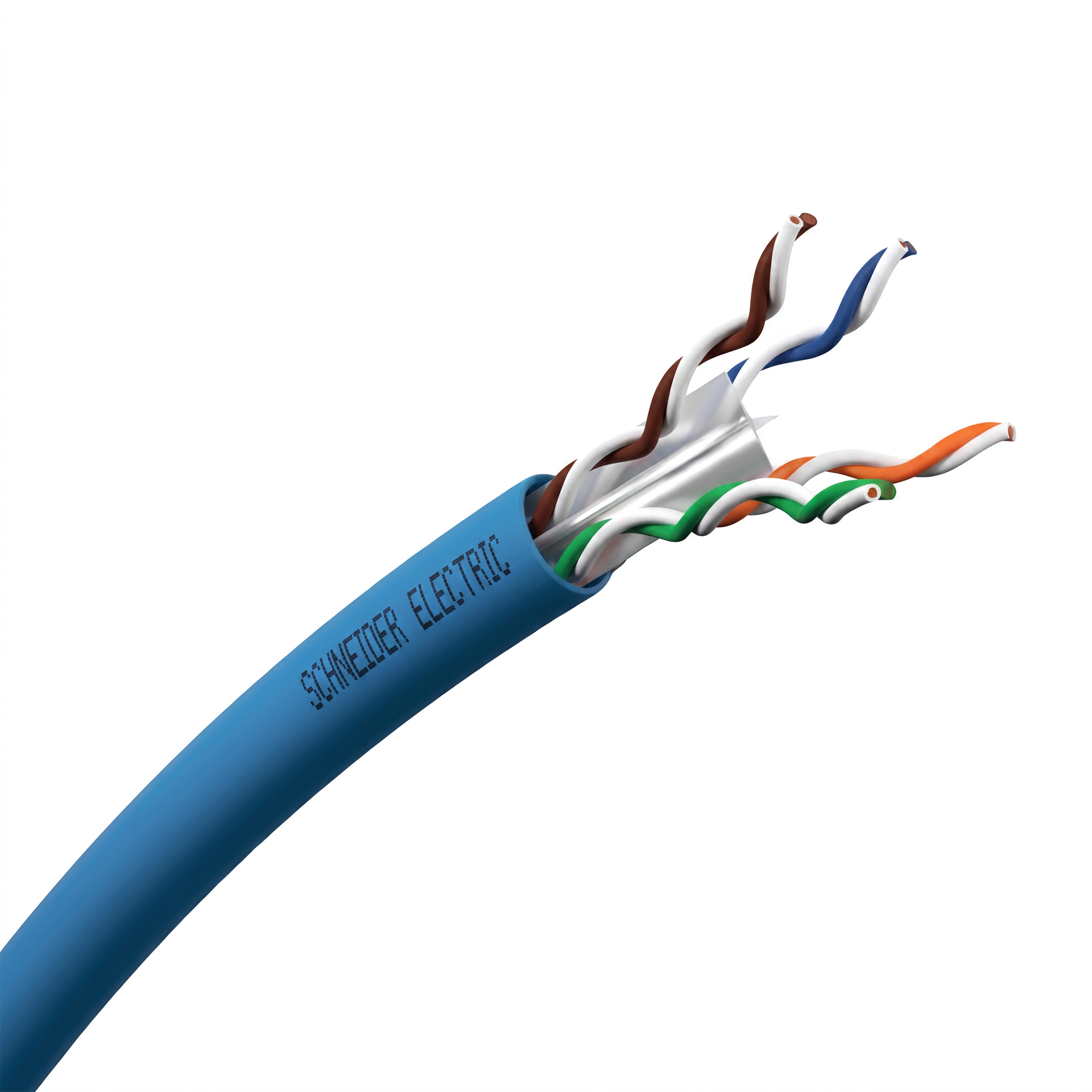

4 twisted pairsSolid bare copper conductors form four twisted pairs under PE insulation.

1000BASE-TCarries Gigabit Ethernet networks and VoIP lines over the same cable.

PoE 15W and PoE+ 30WSupports IEEE 802.3af and IEEE 802.3at power delivery.

LSZH jacketEmits little smoke in a fire, releases no halogen gas, and meets the IEC 60332-1 flame propagation test.

Installation strengthWithstands pulling force up to 392 N and needs a bend radius of 8 times the cable diameter during installation.

Green PremiumMeets RoHS and REACh requirements and carries no SVHC above the threshold.

Main Characteristics

Product Code

VDIC616218

Description

Actassi Cable - CO - U/UTP, Cat 6, 4P, 300 MHz, LSZH, 500 m

Commercial Status

Commercialised

Range

Actassi

Product Type

Network cable

Cable Type

4 twisted pairs

Cable Shielding Type

U/UTP

Network Category

Cat 6

Communication Port Protocol

VoIP (Voice IP)
PoE 15W (Power over Ethernet)
PoE+ 30W (Power over Ethernet Plus)

Network Type

1000BASE-T

Cable Colour

Blue

Material

Wire insulation: PE (polyethylene)
Conductor: solid bare copper
Sheath: LSZH (low smoke zero halogen)

Electrical Performance (Guaranteed)

Return Loss

Frequency	Guaranteed Value
250 MHz	17.3 dB
200 MHz	18 dB
125 MHz	19.4 dB
100 MHz	20.1 dB
62.5 MHz	21.5 dB
31.25 MHz	23.6 dB
20 MHz	25 dB
16 MHz	25 dB
10 MHz	25 dB
4 MHz	23 dB
1 MHz	20 dB

Attenuation

Frequency	Guaranteed Value
250 MHz	32.8 dB
200 MHz	29 dB
125 MHz	22.4 dB
100 MHz	19.8 dB
62.5 MHz	15.4 dB
31.25 MHz	10.7 dB
20 MHz	8.5 dB
16 MHz	7.6 dB
10 MHz	6 dB
4 MHz	3.8 dB
1 MHz	2 dB

Near-End Crosstalk (NEXT)

Frequency	Guaranteed Value
250 MHz	42.3 dB
200 MHz	43.8 dB
125 MHz	46.8 dB
100 MHz	48.3 dB
62.5 MHz	51.4 dB
31.25 MHz	55.9 dB
20 MHz	58.8 dB
16 MHz	60.2 dB
10 MHz	63.3 dB
4 MHz	69.3 dB
1 MHz	77.3 dB

Power Sum Near-End Crosstalk (PS NEXT)

Frequency	Guaranteed Value
250 MHz	39.3 dB
200 MHz	40.8 dB
125 MHz	43.8 dB
100 MHz	45.3 dB
62.5 MHz	48.4 dB
31.25 MHz	52.9 dB
20 MHz	55.8 dB
16 MHz	57.2 dB
10 MHz	60.3 dB
4 MHz	66.3 dB
1 MHz	75.3 dB

Equal Level Far-End Crosstalk (ELFEXT)

Frequency	Guaranteed Value
250 MHz	23 dB
200 MHz	25 dB
125 MHz	29.1 dB
100 MHz	31 dB
62.5 MHz	35.1 dB
31.25 MHz	41.1 dB
20 MHz	45 dB
16 MHz	46.9 dB
10 MHz	51 dB
4 MHz	59 dB
1 MHz	70.8 dB

Power Sum Equal Level Far-End Crosstalk (PS ELFEXT)

Frequency	Guaranteed Value
250 MHz	20 dB
200 MHz	22 dB
125 MHz	26.1 dB
100 MHz	28 dB
62.5 MHz	32.1 dB
31.25 MHz	38.1 dB
20 MHz	42 dB
16 MHz	43.9 dB
10 MHz	48 dB
4 MHz	56 dB
1 MHz	67.8 dB

Input Impedance

100 Ohm (1...250 MHz)

Delay Skew

≤ 45 ns (1...250 MHz)

Resistance Unbalance

≤ 2 %

TCL (Transverse Conversion Loss)

≥ 40 - 10 x log(f) dB, 1...250 MHz (IEC 61156-5, ed. 2.1)

Coupling Attenuation

≥ 40 - 20 x log10(f / 100) dB, 100...250 MHz (IEC 61156-5, ed. 2 type III)
≥ 40 dB, 30...100 MHz (IEC 61156-5, ed. 2 type III)

Mechanical and Physical Characteristics

Segregation Class

Class b (EN 50174-2)

NVP (Nominal Velocity of Propagation)

68 %

Pulling Force

≤ 392 N

Calorific Value

329 MJ/km

AWG Gauge

AWG 23

Bending Radius

Minimum bending radius after installation: 3 x overall diameter
Minimum bending radius during installation: 8 x overall diameter

Cable Outer Diameter

6 mm

Cable Packaging

Drum / 500 m

Cable Weight

40 kg/km

Environment and Standards

Ambient Air Temperature for Installation

0...50 °C

Ambient Air Temperature for Operation

-20...60 °C

Ambient Air Temperature for Storage

-20...60 °C

Temperature Resistance

60 °C

Directives

2006/95/EC - low voltage directive
2011/65/EU - RoHS directive

Standards

Performance: EN 50288-5-2
Performance: IEEE 802.3at
Performance: IEEE 802.3af
Installation standards: EN 50174-2
Performance: ISO/IEC 11801 ed. 2.1
Performance: ISO/IEC 11801 ed. 2.2, 2011
Installation standards: ISO/IEC 14763-3
Smoke emission: IEC 61034
Acidity of combustion gases: IEC 60754-2
Halogen gas evolution: IEC 60754-2
Fire propagation characteristics: IEC 60332-1
Performance: ANSI/TIA/EIA-568-C.3
Performance: EN 50174-2
Performance: EN 50173-1
Performance: IEC 61156-5 ed. 2.1

Sustainable Offer

Sustainable Offer Status

Green Premium product

RoHS

Compliant - since 1052 - Schneider Electric declaration of conformity

REACh

Reference contains no SVHC above the threshold

Product Environmental Profile

Available

Product End-of-Life Instructions

Need no specific recycling operations
