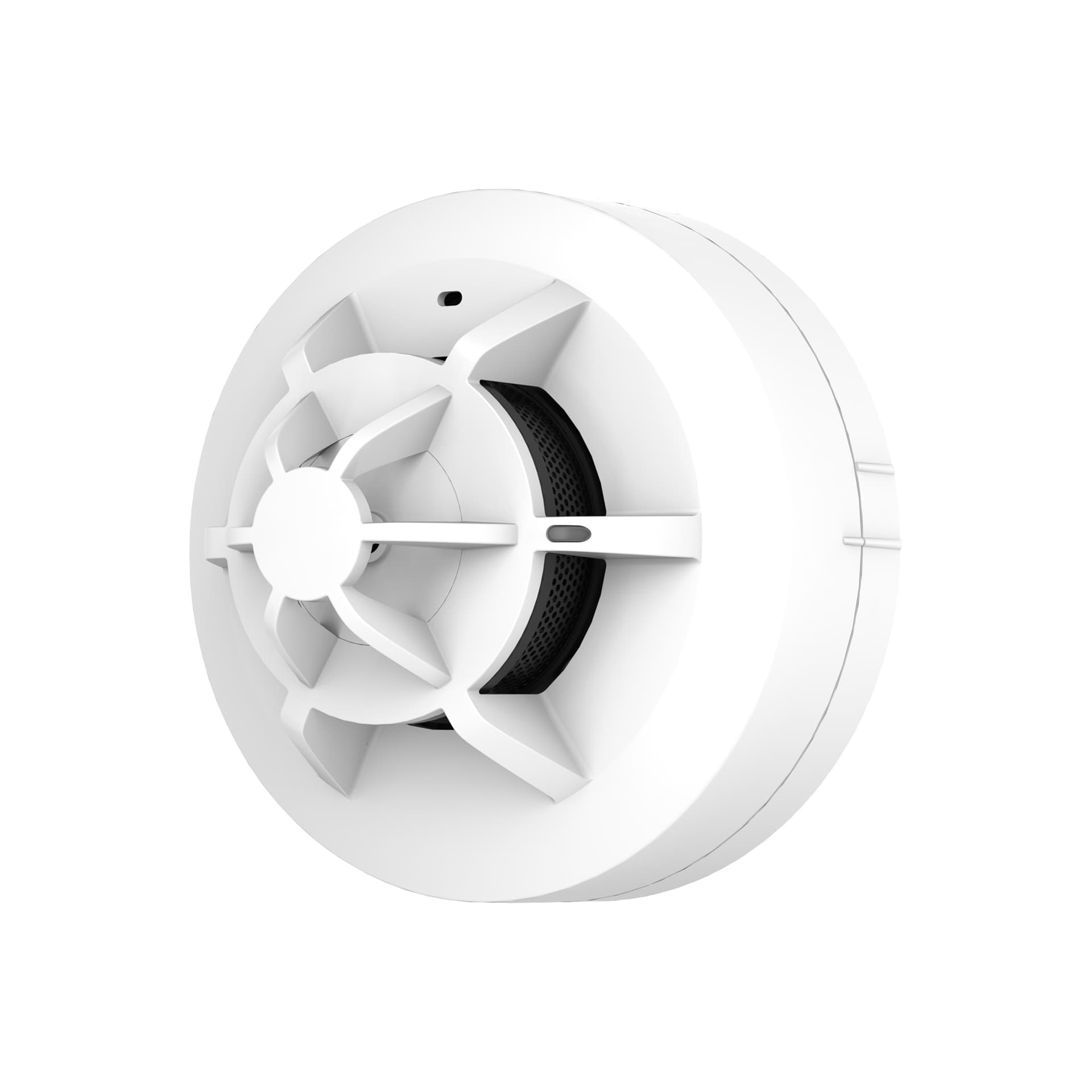

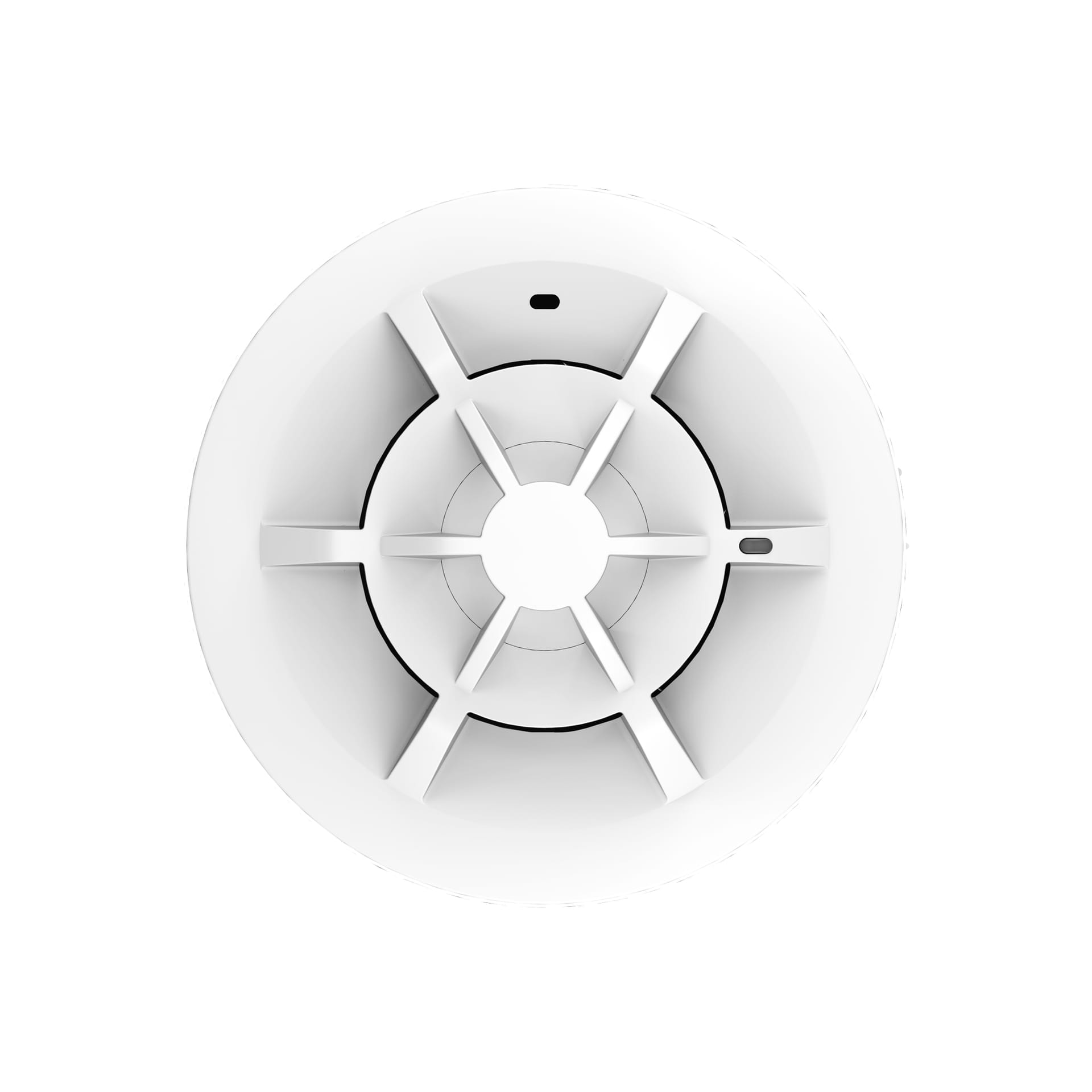

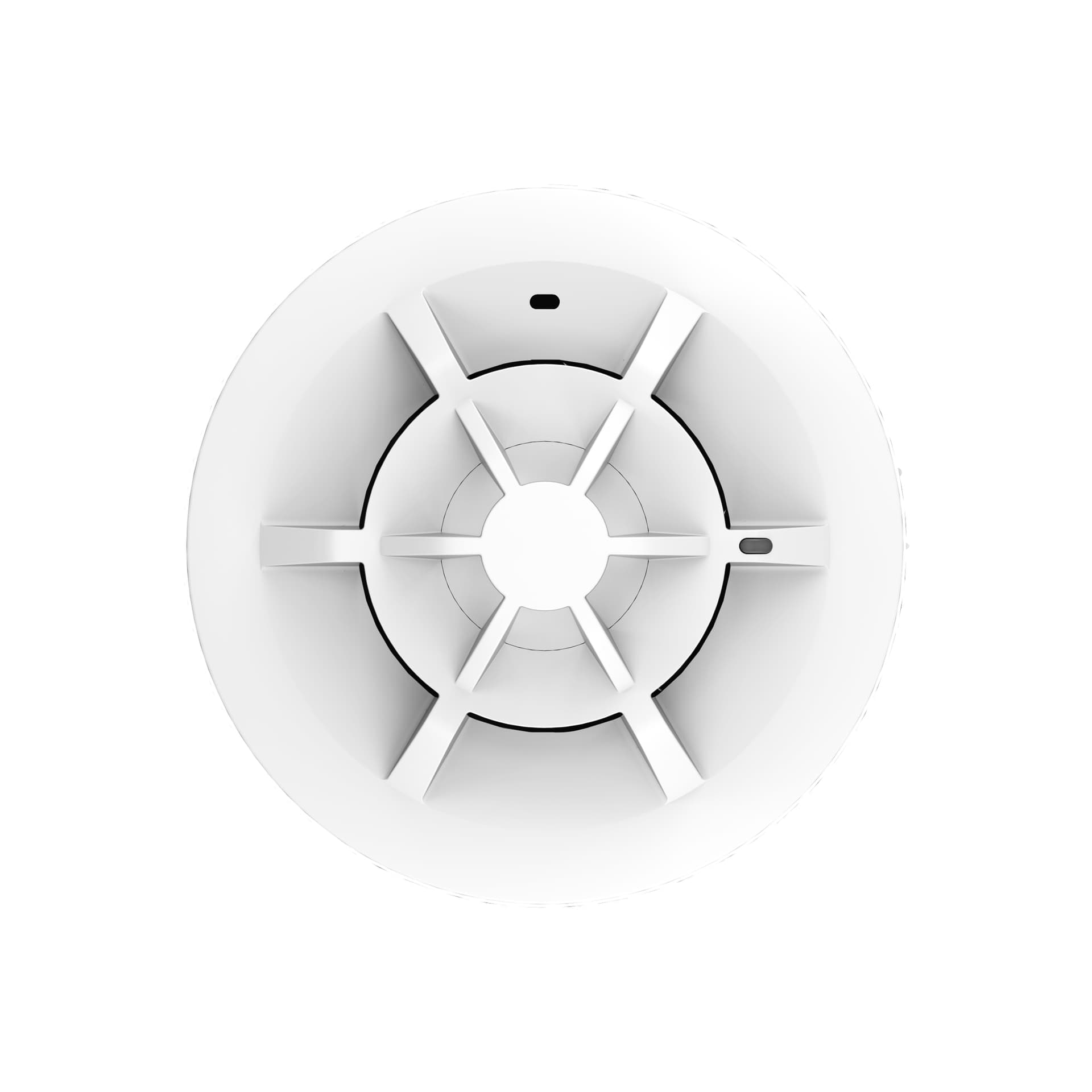

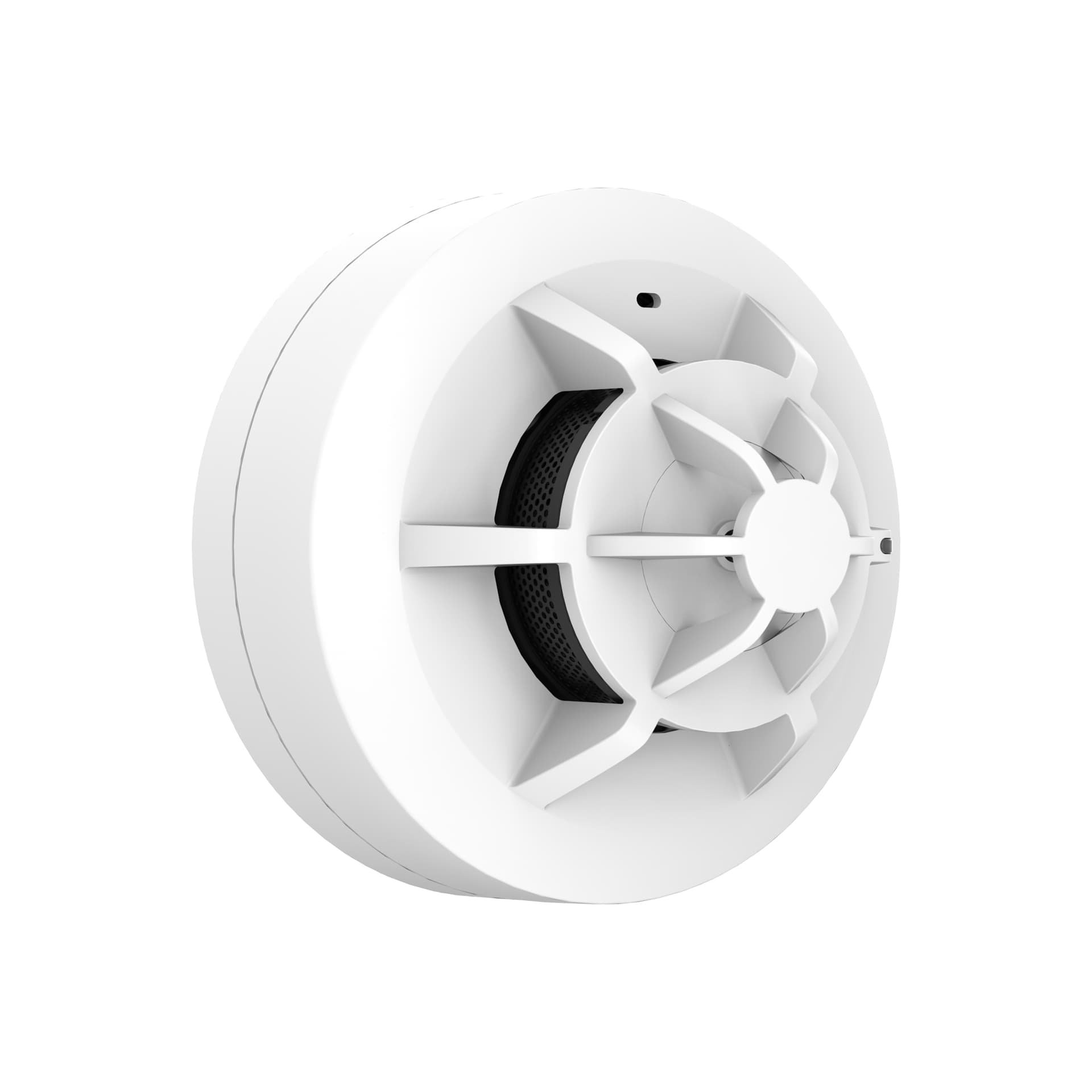

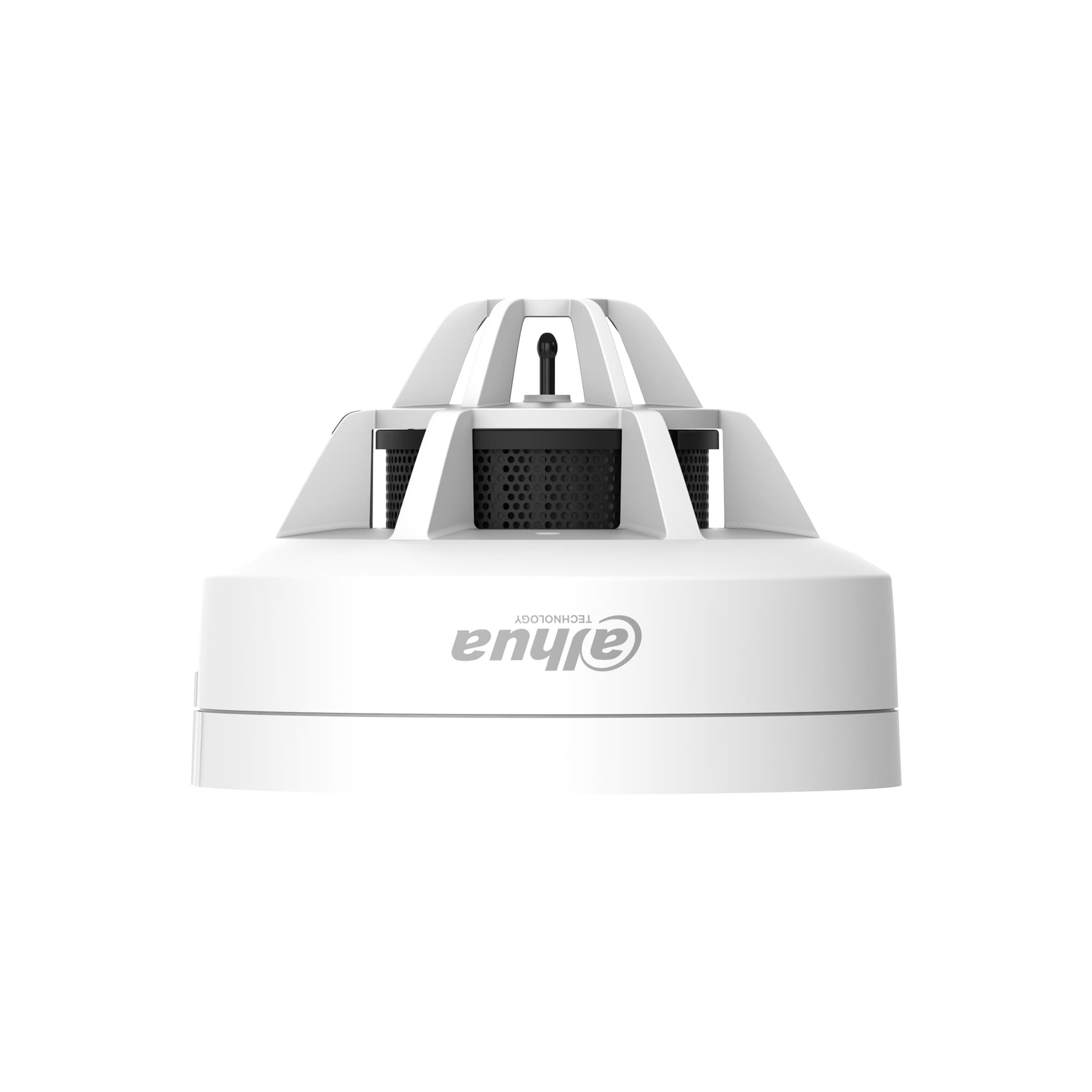

Detects smoke and heat in a single housing

The multi-sensor detector combines a split-spectrum optical smoke sensor and a sensitive thermistor in one housing. It connects to a polarity-free two-wire loop and works in an addressable system through its built-in microprocessor.

A2R (54°C to 62°C)Heat Alarm Threshold

≤ 1500 mCommunication Distance

24 V DCPower Supply

–10°C to +50°COperating Temperature

1–254Address Range

EN54-5, EN54-7Compliance Standard

Key features

Two sensorsIt pairs a split-spectrum optical smoke sensor with a sensitive thermistor, and the heat alarm threshold falls in class A2R.

Ultra-low currentMonitoring current stays at 180 µA or below and alarm current at 270 µA or below.

AddressingAn electrical encoder sets the address within the 1–254 range, and it communicates over distances up to 1500 m.

Status indicatorThe red indicator flashes every 6 seconds while polling and every 2 seconds on a fault, and stays lit during an alarm.

Simple wiringThe two-wire, polarity-free connection simplifies field cabling.

Standard complianceIt is designed in accordance with the EN54-5 and EN54-7 standards.

Technical Specifications

Power

24 V DC

Current

Monitoring current: ≤ 180 µA
Alarm current: ≤ 270 µA

Indicator

Red
Polling: Flash every 6 seconds
Alarm: Remain lit
Fault: Flash every 2 seconds

Alarm Threshold for Heat Detection

A2R (54°C to 62°C) (129°F to 144°F)

Wiring

Two-wire, polarity-free

Addressing Method

Electrical encoder

Address Range

1–254

Communication Distance

≤ 1500 m (4921.26 ft)

Operating Temperature

–10°C to +50°C (+14°F to +122°F)

Storage Temperature

–20°C to +65°C (–4°F to +149°F)

Operating Humidity

≤ 95% RH (no condensation)

Color

White

Dimensions (with base)

Φ 100 mm × 68.7 mm (Φ 3.00" × 2.70")

Weight (with base)

106.3 g (0.23 lb)

Compliance Standard

EN54-5, EN54-7
