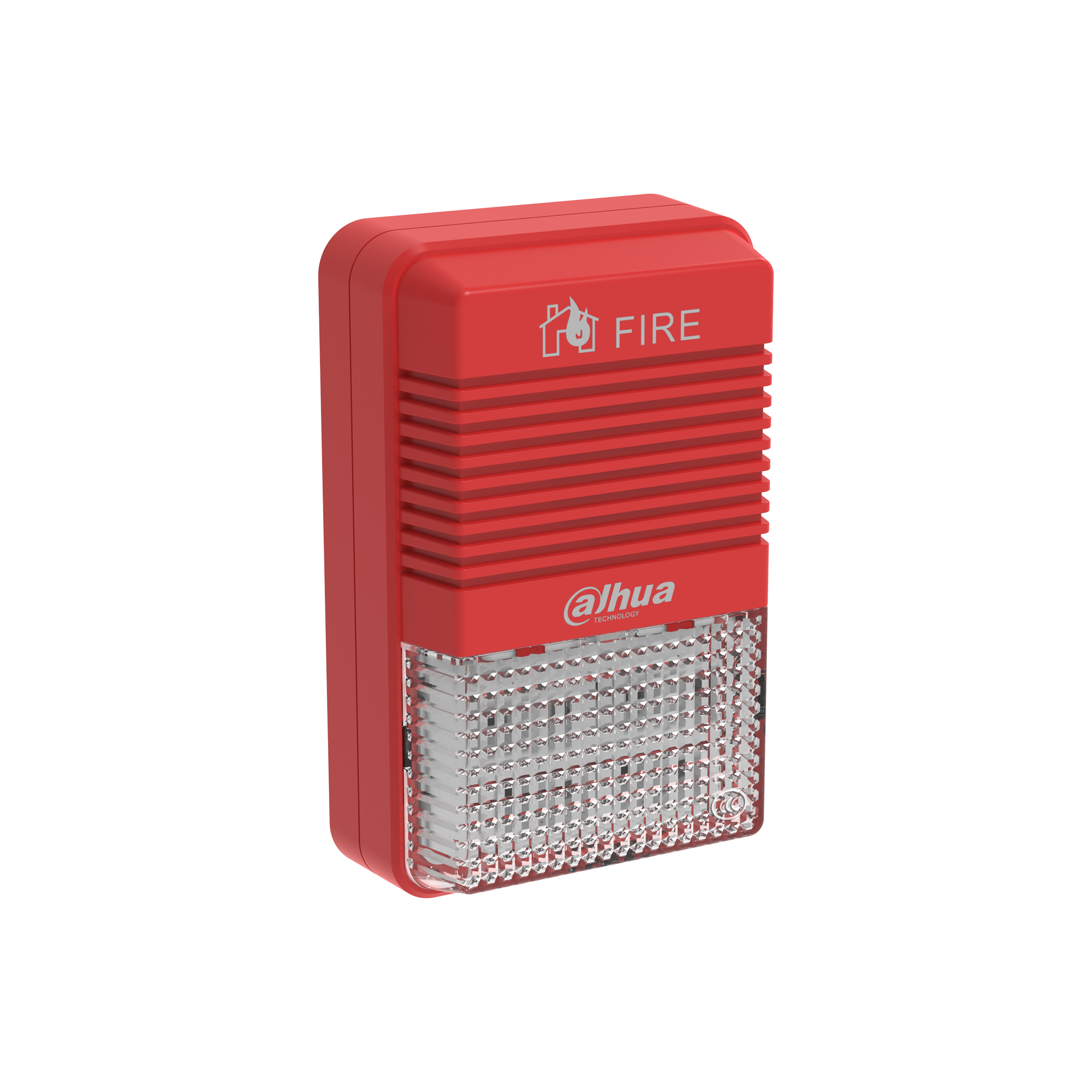

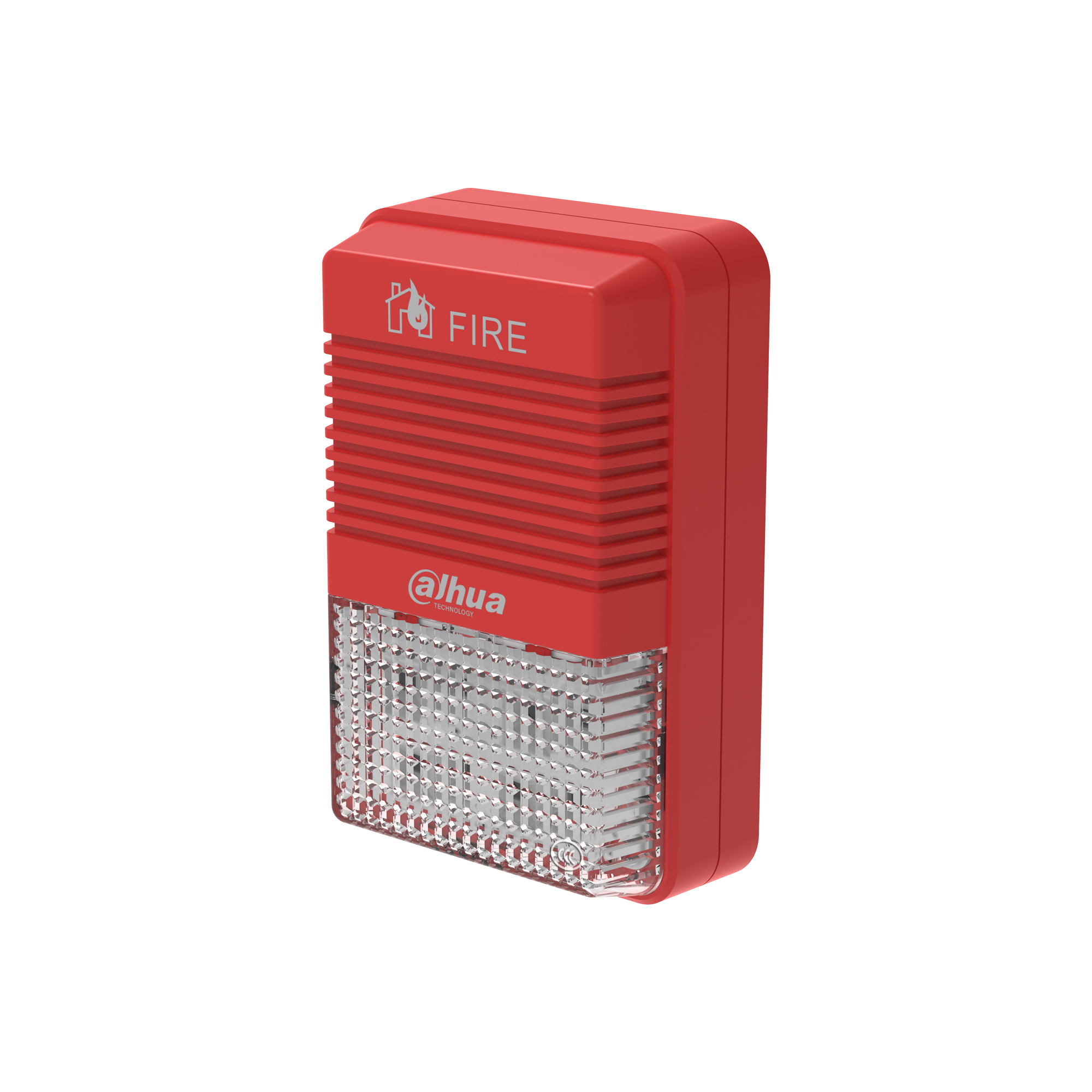

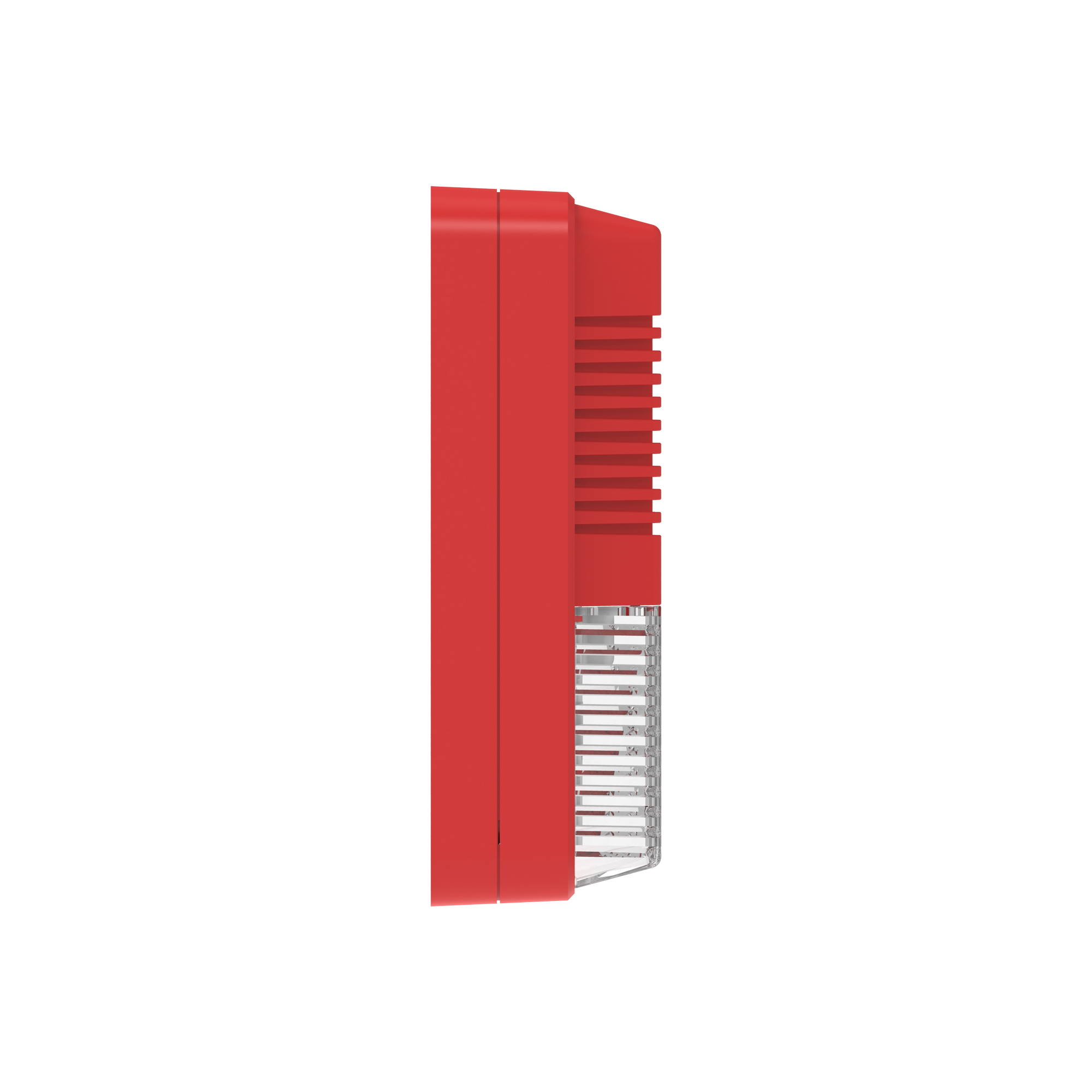

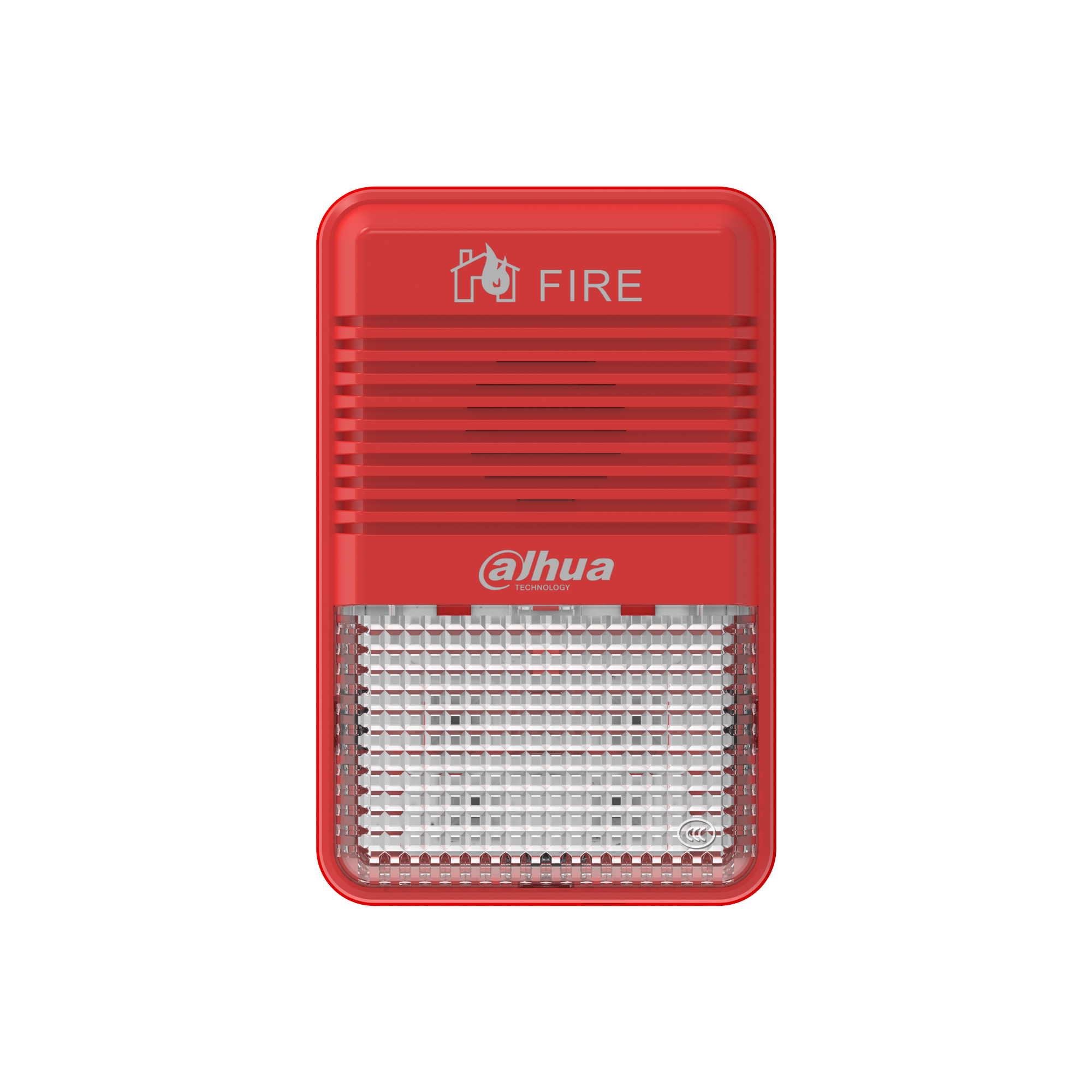

Addressable Sounder Strobe

Name: Addressable Sounder Strobe
Brand: Dahua
SKU: HY-1500

Stock Code: HY-1500

Joins the fire alarm loop with its own address and gives an audible and visual warning.

A sounder and strobe unit made for addressable fire detection systems. It ties into a two-wire, polarity-free loop, takes an address between 1 and 254 from an electrical encoder, and appears at the panel under its own identity. A built-in microprocessor drives the alarm tone and the flash rhythm.

75 dB – 115 dB @ 3 mSound pressure

DC 24 VWorking voltage

≤ 7 mAMax. operating current

-10 °C ~ +55 °COperating Temperature

125 × 80 × 40 mmProduct dimensions

Key features

Two-wire, polarity-free wiringJoins the loop without regard to polarity and removes the risk of reversed connections.

Addressable operationTakes an address between 1 and 254 from the electrical encoder, so the panel identifies every unit separately.

Ultra-low consumptionDraws under 120 µA while monitoring, keeping the loop power budget within reach.

Visual warningFlashes between 1.5 Hz and 2.0 Hz, keeping the alarm visible in noisy areas.

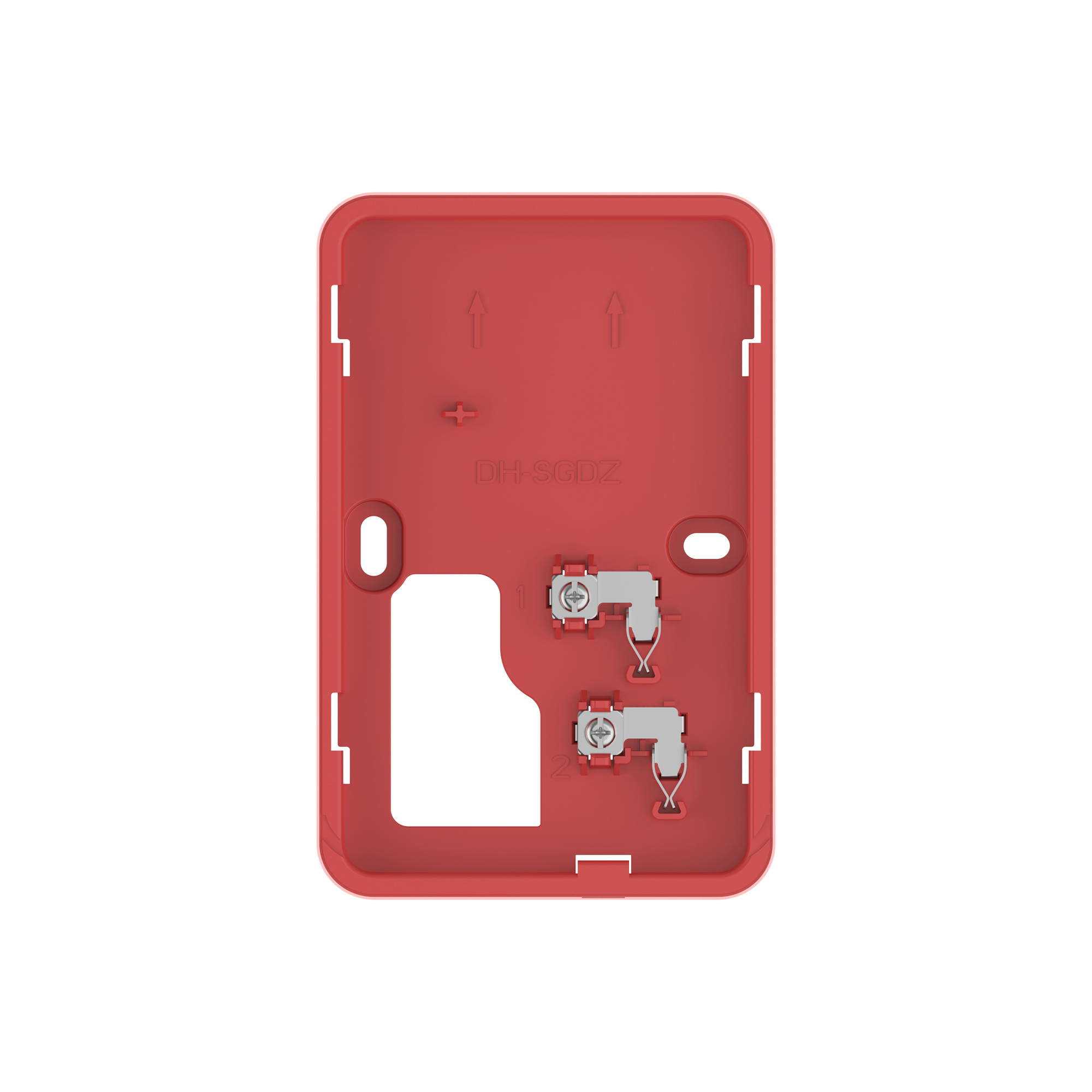

Plug-in mountingSeats onto its base in one move and lifts off just as easily for service.

Certified to EN54-3 and EN54-23.

Technical Specification
Working Voltage	DC24V
Working Current	Monitoring current: ≤ 120µA Maximum operating current: ≤ 7mA
Wiring	Two-wire, polarity-free
Addressing Method	Electrical encoder
Address Range	1–254
Alarm Volume	75 dB–115 dB @ 3 m (A)
Modulation Cycle	4 s–5 s
Flash Rate	1.5Hz–2.0Hz
Communication Distance	1500 m (4921.26 ft)
Operating Temperature	–10°C to +55°C (+14°F to +131°F)
Storage Temperature	–20°C to +65°C (–4°F to +149°F)
Operating Humidity	≤ 95% RH (no condensation)
Color	Shell: Red Lampshade: Clear white
Dimensions	125 mm × 80 mm × 40 mm (4.92" × 3.15" × 1.57")
Weight (with base)	118 g (0.26 lb)
Compliance Standard	EN54-3, EN54-23
