Stock Code: HY-1502
| Technical Specifications | |
|---|---|

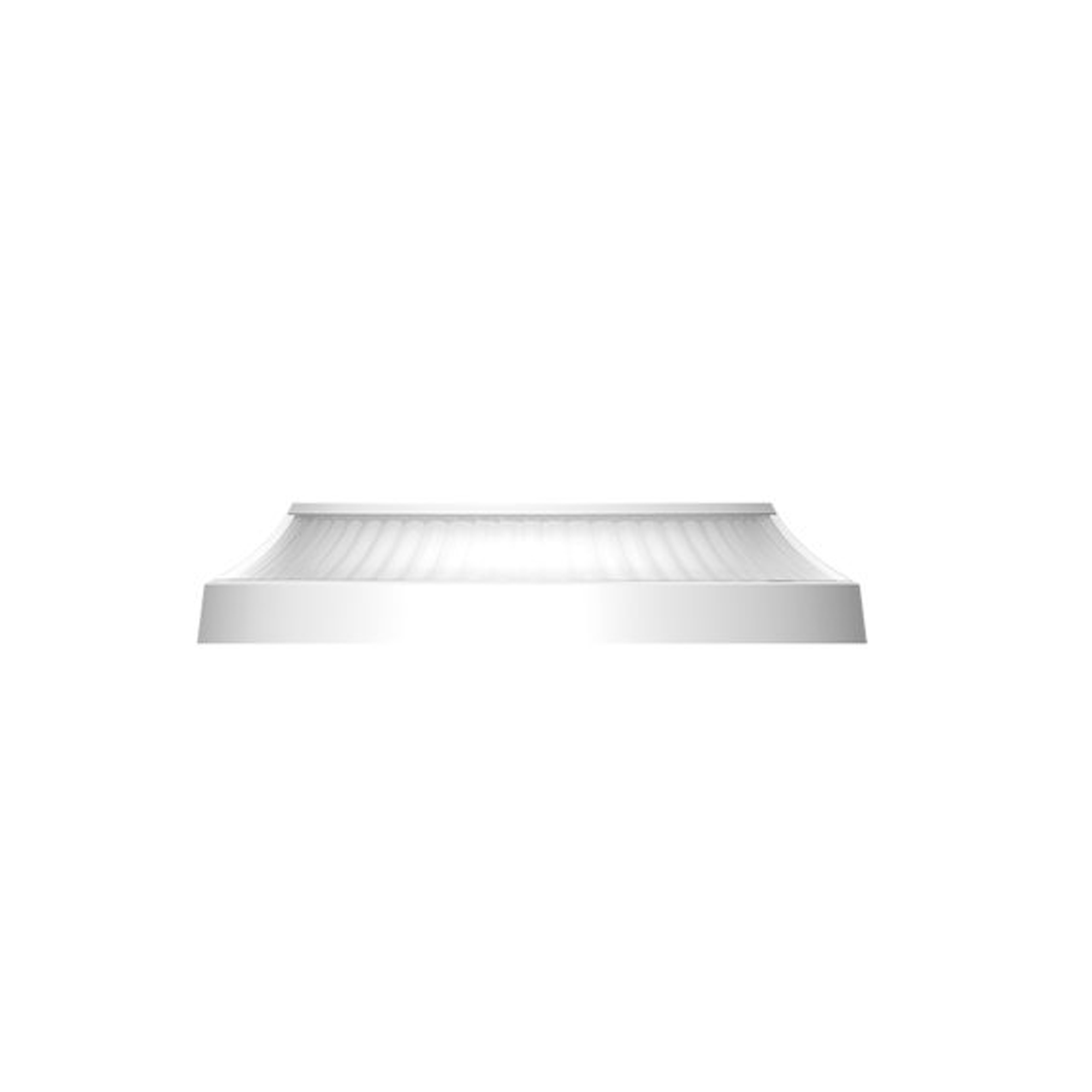

| Product Name | Addressable Sounder Strobe |
| Product Model | DHI-HY-1502 |
| Monitoring Area | Installation height below 4 m: 150 m²; 4 m–12 m: 80 m² |
| Alarm Method | Light alarm, sound alarm |
| Operating Voltage | DC 24V |
| Operating Current | Static current: ≤350 μA Alarm current: ≤17 mA |
| Operating Temperature | –10°C ~ +55°C |
| Operating Humidity | ≤95%, no condensation |
| Alarm Volume | 75–80 dB (A) @ 3 m |
| Dimensions | With Base: 136.9 mm × 36.5 mm (5.39" × 1.44") Without Base: 136.9 mm × 30 mm (5.39" × 1.18") |
| Weight | With Base: 194 g (0.428 lb) Without Base: 137 g (0.302 lb) |
| Installation Method | Ceiling mount / Wall mount |
| Illumination | 58 lux |
| Compliance Standard | EN54-3, EN54-23 |
