Dahua

Analog Indoor Monitor

Name: Analog Indoor Monitor
Brand: Dahua
SKU: VTH1020J

Stock Code: VTH1020J

Answers the door call and shows the visitor on screen.

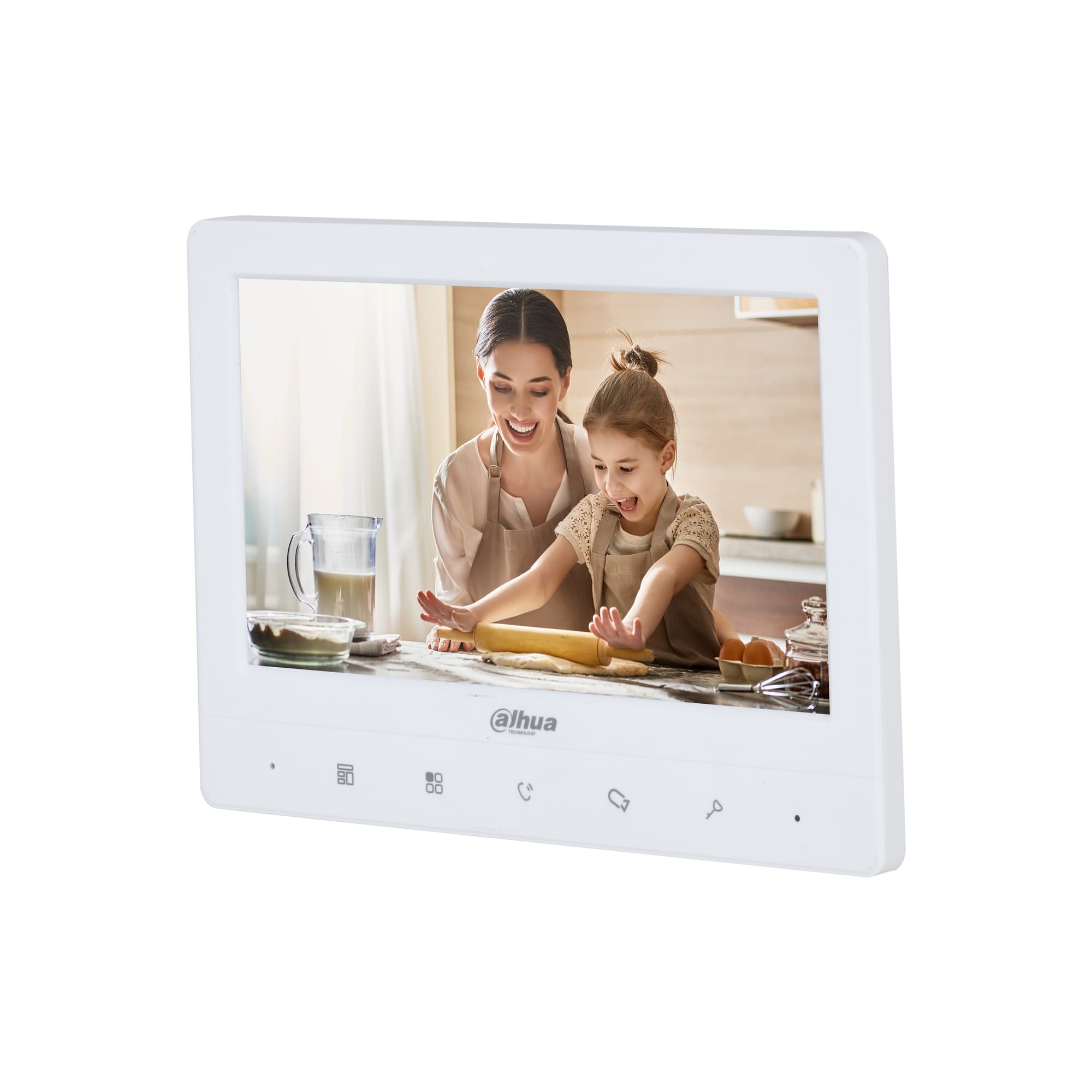

An indoor monitor for four-wire analog intercom lines. The 7-inch TFT screen displays 800 × 480 images, and the mechanical buttons run calls, monitoring and volume control with a direct press. It works on 12 V DC and does not exceed 2 W in standby.

7"TFT screen

800 × 480Resolution

12 V DCPower supply

≤ 5 WWorking consumption

-10 °C ~ +55 °COperating Temperature

Key features

Video intercomAnswers the call from the door station, shows the visitor on screen and releases the lock from the monitor.

Mechanical buttonsThe physical keys on the front run calls, monitoring and volume control with a single press.

Wide screenThe 7-inch TFT panel shows the visitor at 800 × 480, large enough to recognize a face.

Multiple bell soundsDifferent ring tones separate the door call from other alerts.

Low consumptionIt stays within 2 W in standby and 5 W in operation, so it can remain on all day.

Display & Structural Features
Display Type	7.0" TFT Screen
Screen Resolution	800 × 480
Button Type / Casing	Mechanical Button / PC + ABS
Communication Mode	Analog
General & Electrical Parameters
Power Supply	DC 12V / 2A
Power Consumption	Standby ≤ 2W / Working ≤ 5W
Status Indicator	1 LED Indicator (Green: Power on)
Physical Features & Dimensions
Product Dimensions	133.90 mm × 182.70 mm × 17.70 mm (5.27" × 7.19" × 0.70")
Net / Gross Weight	0.25 kg (0.55 lb) / 0.48 kg (1.05 lb)
Operating Conditions	–10°C to +55°C / 10%RH–95%RH

Datasheet

VTH1020J

12/12/2026

Kullanım Kılavuzu

VTH1020J

12/12/2026

VTH1020J

12/12/2026

Teknik Çizim
