Shows the visitor at the door and releases the lock from inside.

A video intercom kit made up of a touch-screen indoor monitor and an outdoor door station. The 4.3-inch TFT screen displays 480 × 272 images, while the 1.3 MP camera in the door station covers 70° horizontally and 40° vertically. The IP66 rated station and the bundled rain cover prepare the door for open weather.

4.3"TFT screen

480 × 272Resolution

12 V DCPower supply

1.3 MPDoor station camera

IP66Protection Grade

Key features

Video intercomAnswers the call from the door station, shows the visitor on screen and releases the lock from the monitor.

Night visionAutomatic IR with ICR switching images the doorway in darkness.

DWDRDigital wide dynamic range shows a face without darkening it at a sunlit entrance.

Wide field of viewThe door station camera covers 70° horizontally and 40° vertically and frames the area in front of the door.

Single-point powerThe door station draws its power from the indoor monitor, so it needs no adapter of its own.

Outdoor housingThe IP66 rated PC + ABS casing and the rain cover protect the station from water and dust.

DHI-VTH1010J Indoor Monitor Specifications

Display Type / Resolution

4.3" TFT Screen / 480 (H) × 272 (V)

Button / Casing Material

Touch Button / ABS Plastic (White)

Power Supply / Consumption

12 VDC 1 A (Adapter Included) / Max. 5 W

Dimensions / Installation

136.00 mm × 140.00 mm × 18.30 mm / Surface Mount

DHI-VTO1000J Outdoor Station Specifications

Camera / Field of View

1.3 MP CMOS / Horizontal: 70°, Vertical: 40°

Night Vision / WDR

Auto IR (ICR Switch) / DWDR

Protection / Casing

IP66 / PC + ABS (Silver Color)

Audio / Power

Built-in Mic & Speaker / Powered by Indoor Monitor

Dimensions / Accessory

131.45 mm × 46.00 mm × 33.80 mm / Rain Cover Included

Shows the visitor at the door and releases the lock from inside.

4.3"TFT screen

480 × 272Resolution

12 V DCPower supply

1.3 MPDoor station camera

IP66Protection Grade

Key features

Video intercomAnswers the call from the door station, shows the visitor on screen and releases the lock from the monitor.

Night visionAutomatic IR with ICR switching images the doorway in darkness.

DWDRDigital wide dynamic range shows a face without darkening it at a sunlit entrance.

Wide field of viewThe door station camera covers 70° horizontally and 40° vertically and frames the area in front of the door.

Single-point powerThe door station draws its power from the indoor monitor, so it needs no adapter of its own.

Outdoor housingThe IP66 rated PC + ABS casing and the rain cover protect the station from water and dust.

DHI-VTH1010J Indoor Monitor Specifications

Display Type / Resolution

4.3" TFT Screen / 480 (H) × 272 (V)

Button / Casing Material

Touch Button / ABS Plastic (White)

Power Supply / Consumption

12 VDC 1 A (Adapter Included) / Max. 5 W

Dimensions / Installation

136.00 mm × 140.00 mm × 18.30 mm / Surface Mount

DHI-VTO1000J Outdoor Station Specifications

Camera / Field of View

1.3 MP CMOS / Horizontal: 70°, Vertical: 40°

Night Vision / WDR

Auto IR (ICR Switch) / DWDR

Protection / Casing

IP66 / PC + ABS (Silver Color)

Audio / Power

Built-in Mic & Speaker / Powered by Indoor Monitor

Dimensions / Accessory

131.45 mm × 46.00 mm × 33.80 mm / Rain Cover Included

Video Intercom KIT

Datasheet

KTA04

Kullanım Kılavuzu

KTA04

KTA04

Teknik Çizim

KTA04

KTA04

Similar Products

Video Intercom KIT

4-wire Wi-Fi Hybrid Indoor Monitor

Video Intercom KIT

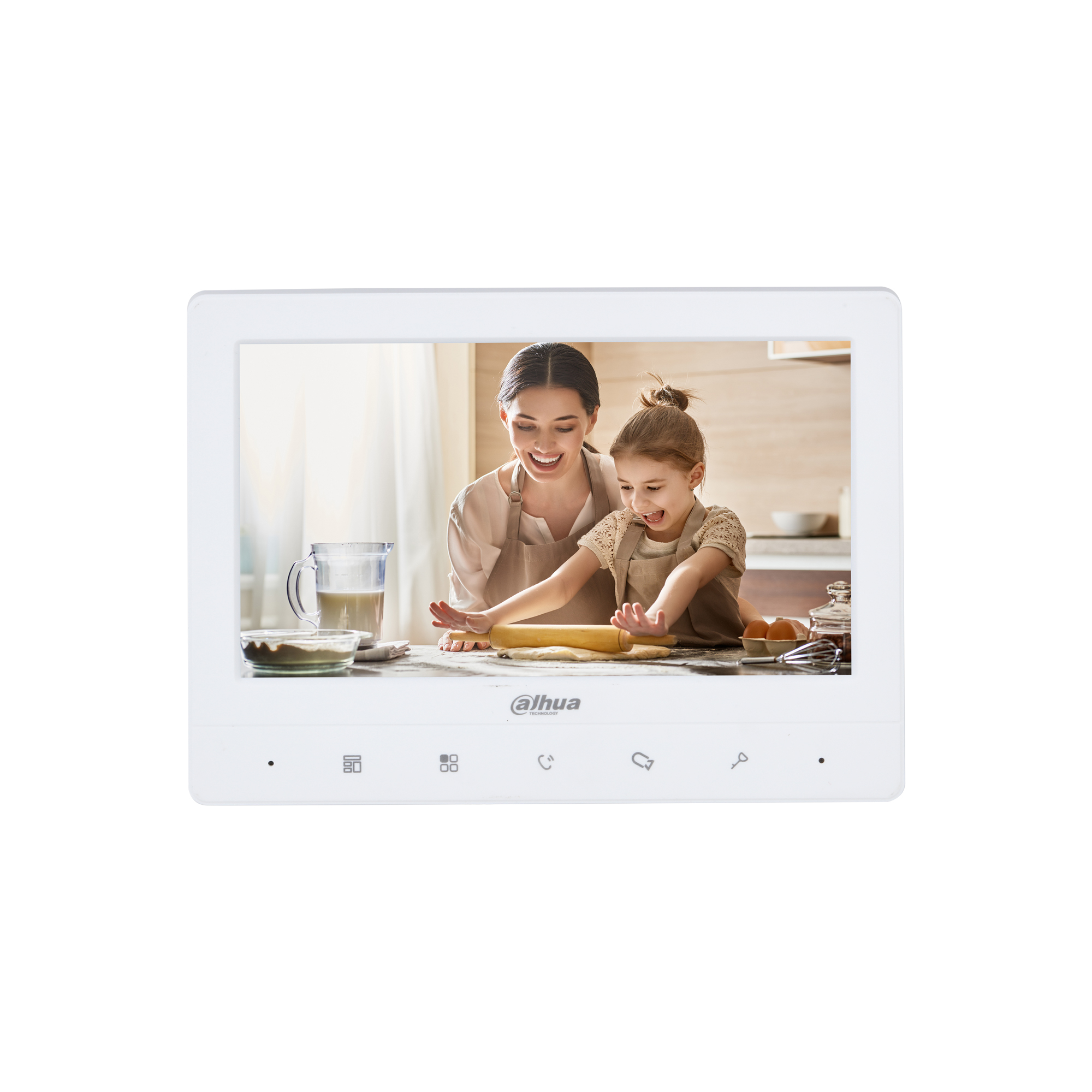

Analog Indoor Monitor
