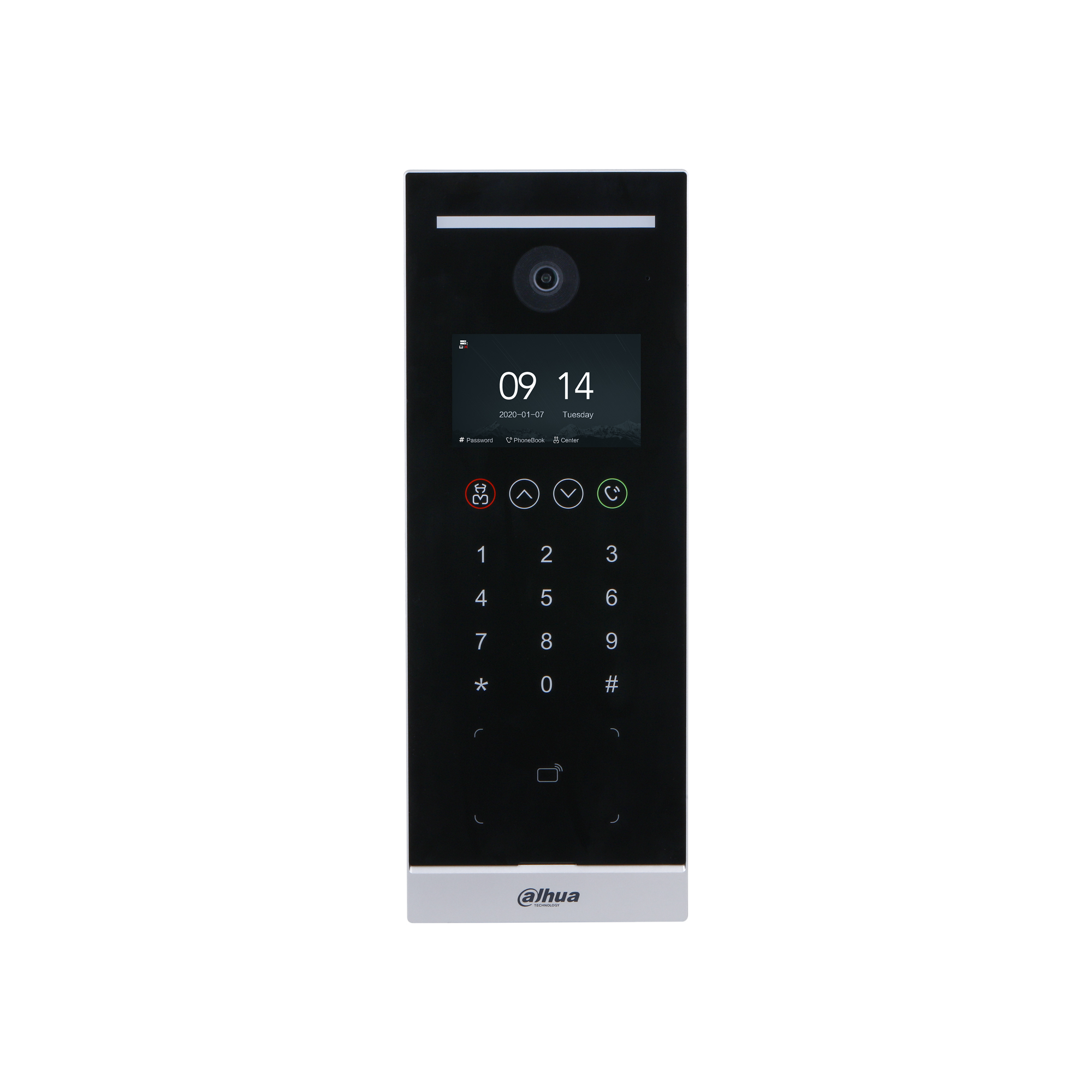

Stock Code: VTO6521H
| System | |
|---|---|
| Main Processor | Embedded processor |
| Operating System | Embedded Linux operating system |
| Button Type | Touch button |
| Network Protocol | SIP; P2P; IPv4; FTP; UPnP; DNS; DDNS; RTSP; RTP; TCP; UDP |
| ROM | 4 GB |
| RAM | 1 GB |
| Basic | |
| Display | 4.3 inch IPS screen |
| Screen Resolution | 800 × 480 |
| Camera | 1/2.7" 2MP CMOS high definition, low illumination, white illuminator and IR illuminator |
| Field of View | Horizontal: 113.79°; Vertical: 61.5°; Diagonal: 134.45° |
| Focal Length | 2.8 mm |
| Aperture | F2.0 |
| WDR | 120 dB |
| Noise Reduction | 3D noise reduction |
| Video Compression | H.264 |
| Video Resolution | Main stream: 720p, sub stream: 1080P |
| Frame Rate | Main stream (720P@25fps), sub stream (1080P@25fps); Main stream (720P@30fps), sub stream (1080P@30fps) |
| Video Bit Rate | 256 Kbps–2048 Kbps |
| Light Compensation | Auto white light |
| Audio Compression | G.711u |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Full duplex communication |
| Audio Enhancement | Echo suppression and cancellation/digital noise reduction |
| Audio Bit Rate | 16 KHz, 16 Bit |
| Communication Mode | Full digital |
| Unlock Mode | Card/remote/password unlock |
| Card Type | IC card |
| Motion Detection | Video motion detection |
| Auto Snapshot | Yes |
| Leave Videos or Text Messages | Yes |
| Web Configuration | Yes |
| Performance | |
| Card Reading Distance | 1 cm–5 cm |
| Issue Card Locally | Yes |
| Casing Material | PC+ABS |
| Capacity | |
| Card | 10,000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 input port, 1 output port |
| Electric Lock | 1 |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Power Output | 1 × 12V/100mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1, normally open by default |
| Network | 1 × RJ-45 10 Mbps/100 Mbps self-adaptive |
| Alarm | |
| Tamper | Yes |
| General | |
| Unlock Password Mode | User password/public password/duress password |
| Color | Silver |
| Power Supply Mode | DC 12V 2A |
| Power Adapter | Optional |
| Installation | Surface mount and flush mount |
| Certification | CE/FCC |
| Accessory | Optional |
| Product Dimensions | 389 mm × 145 mm × 41.9 mm (15.31" × 5.71" × 1.65") |
| Protection Grade | IP65 (silicone sealant is needed, see the quick start guide) |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Operating Humidity | 10% RH–90% RH (non-condensing) |
| Operating Altitude | 86 kPa–106 kPa |
| Power Consumption | ≤5 W (standby), ≤18 W (working) |
| Net Weight | 1.4 kg (3.09 lb) |
| Gross Weight | 1.68 kg (3.70 lb) |
