Isolates the panel input from the chassis metal.

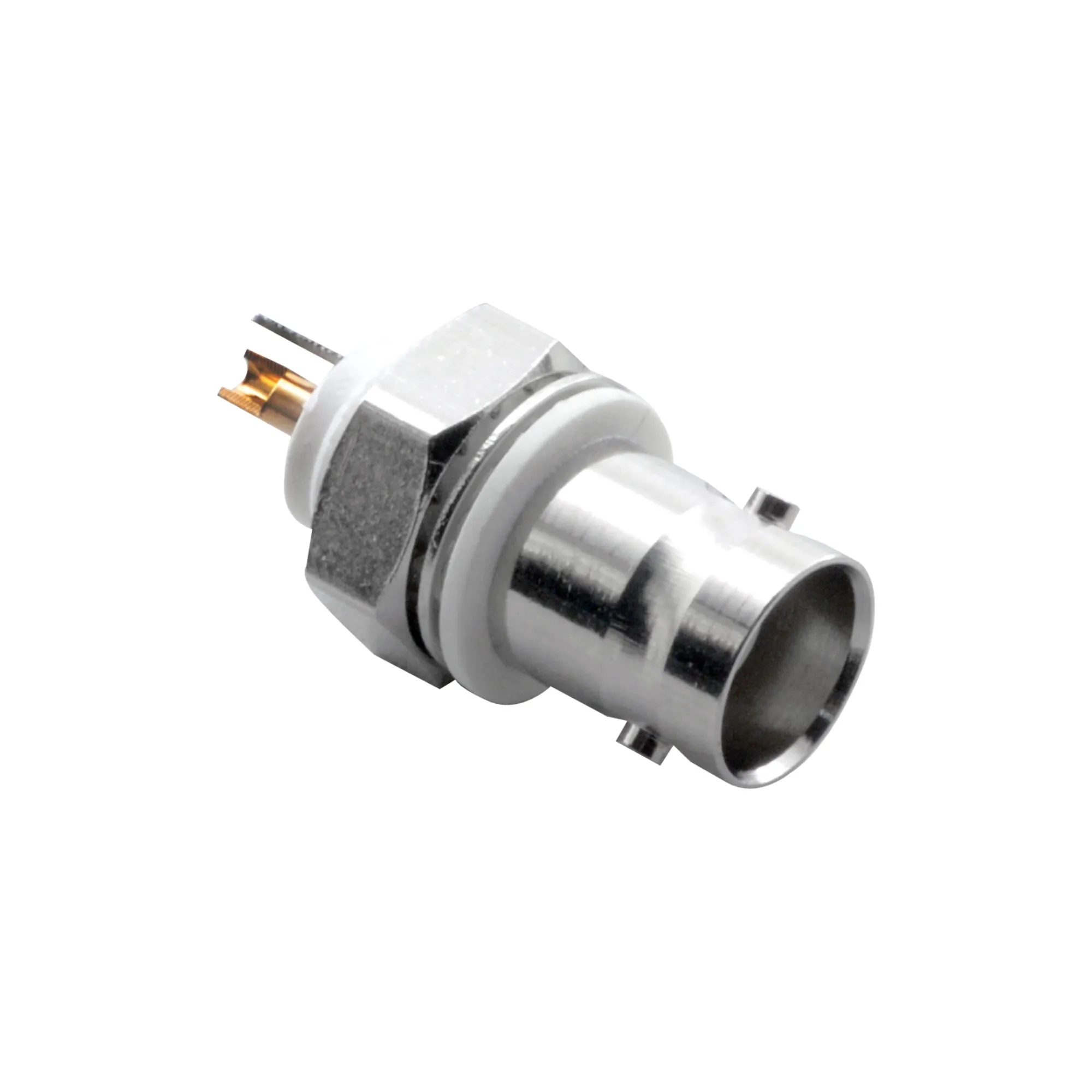

An isolated female BNC connector that mounts on a chassis. The insulated body separates the connector from the panel metal, and it covers 0 - 4.0 GHz on 50 Ω lines.
50 ΩImpedance
0 - 4.0 GHzFrequency Range
0.2 dB max @ 3 GHzInsertion Loss
CrimpTermination Type
FemalePlug Type
NickelOuter Jacket
Key features
Isolated bodyThe insulation separates the connector body from the panel metal.
Chassis mountingThe connector seats on the surface of the equipment case.
Crimp terminationIt holds the cable end with a crimp connection.
Nickel plated bodyThe nickel plated body minimizes signal loss.
0.2 dB insertion lossInsertion loss stays at 0.2 dB or below at 3 GHz.
